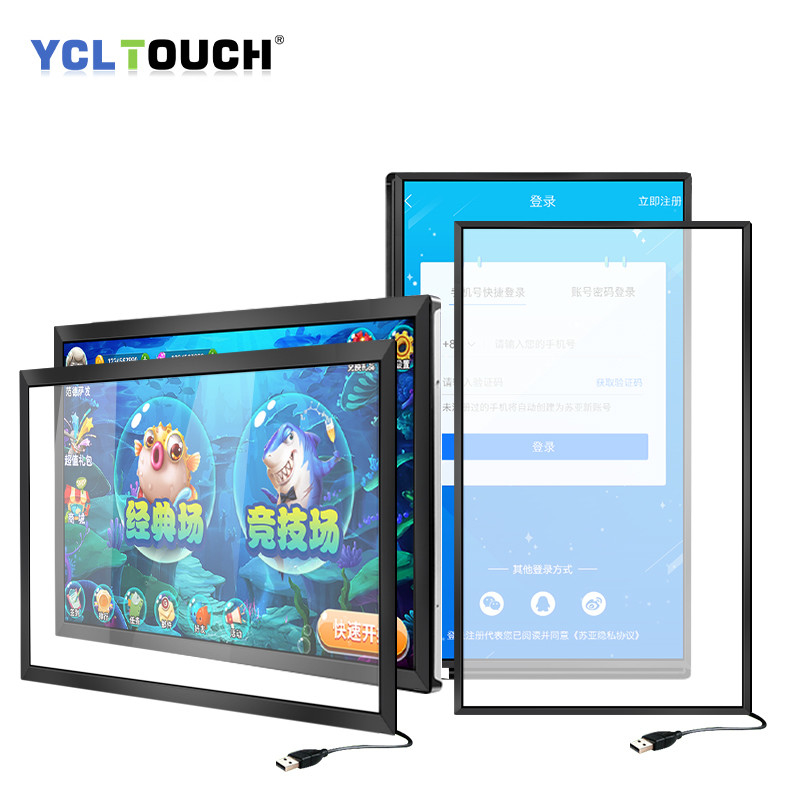

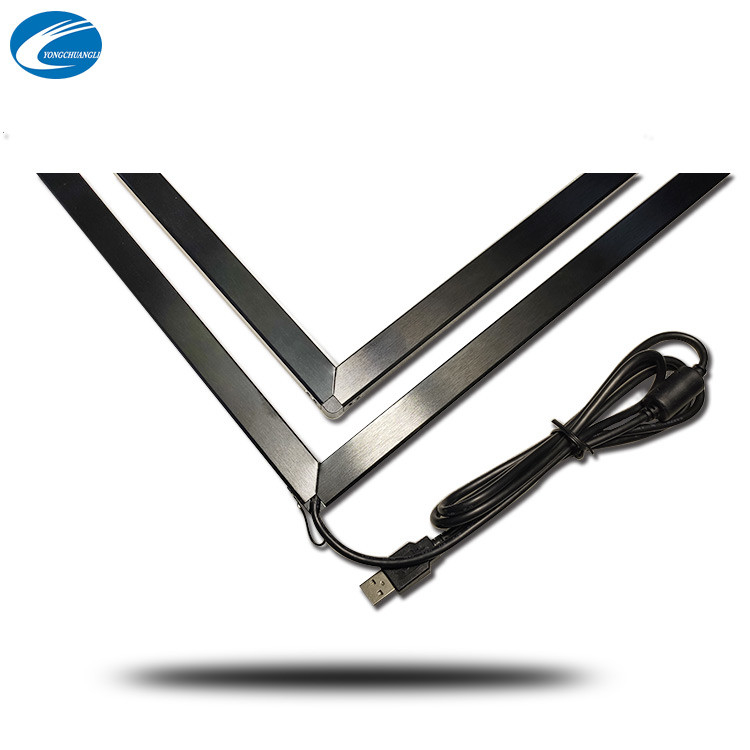

27 Inch IR Touch Screen Frame 16:9 Large Multi Touch Screen Panel Kit

Basic Information
Place of Origin: Guangdong, China
Brand Name: YCLTOUCH
Certification: RoHS, ISO9001, CE, FCC, EMC, LVD
Model Number: LV-27
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 1-3 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Material: Aluminum Warranty: 1-Year
Resolution: 32768*32768 Style: Any Platform
Place Of Origin: Guangdong, China Interface Type: Usb
Color: Black Aspect Ratio: 16:9
High Light:

27 Inch IR Touch Screen Frame


IR Touch Screen Frame 16:9


Multi Touch Screen Panel Kit

27Inch Infrared Touch Overlay, Large IR Touch Screen Panel kit

YCLTOUCH Infrared touch frame Features:

1 Driver-free support for multiple operating systems.
2 High touch accuracy and smooth writing.
3 Long service life, maintenance-free.

4 Toughened glass material, with high transmittance, strong stability.
5 Strong anti-jamming ability, anti-static performance of industrial ESD.
6 Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.
7 No special touch tools are needed, just opaque objects.

8 Ultra-thin and ultra-narrow frame, aluminium alloy shell.

27 Inch IR Touch Screen Frame 16:9 Large Multi Touch Screen Panel Kit 0

product description


Specification of Infrared Touch Screen
Touch Screen Size 27
Touch Points 20-point touch
Minimum Recognition Point Size 4mm*4mm
Supporting resolution 32768×32768
Touch Response Time(Multi touch) 10-15ms
Touch Response Time(One touch) 7ms
Input method Any opaque touches, such as fingers, brushes, etc.
Calibration 4-point calibration
Number of clicks nfinite times
Touch pressure No pressure requirement
Interface type 1.5 m USB cable receptacle, the receptacle 5P
Line length 1.5m
Frame Material Aluminium alloy
Glass Material Toughened glass
Characteristic Easy installation, strong compatibility
Scanning frequency >110Hz
communication interface USB 2.0
Power supply mode USB 5.0V
Working Voltage and Current 4.75~5.25V , ≤200mA
Humidity Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃
LED Lifetime 60000hours
Fault-tolerant Able to work if less than10% non-consecutive sensors are damaged
Anti-light Interference Excellent
ESD EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge
Firmware Upgrade USB Upgrade: Windows 8,Windows 7
Support OS(Multi touch) Windows10,Windows8,Windows7,Andriod
Support OS (One touch) WindowsXP,MacOS.Linux

27 Inch IR Touch Screen Frame 16:9 Large Multi Touch Screen Panel Kit 127 Inch IR Touch Screen Frame 16:9 Large Multi Touch Screen Panel Kit 2

Infrared Touch Application Scene

1 education
2 Medical industry
3 Finance
4 Exhibition
5 Industrial control
6 Man-machine interaction
7 TV
8 PC
9 And more
27 Inch IR Touch Screen Frame 16:9 Large Multi Touch Screen Panel Kit 3
