7ms USB IR Touch Screen Frame Overlay Kit 43 Inch 32768*32768 Resolution

Basic Information
Place of Origin: Guangdong, China
Brand Name: YCLTOUCH
Certification: RoHS, ISO9001, CE, FCC, EMC, LVD
Model Number: LV-43
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 1-3 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Interface Type: USB Resolution: 32768*32768
Screen Size: 43" Touch Points: 20 Points
Keywords: Multi Touch Infrared Operating System: XP Win7 8 Android Linux,MAC OS X
Warranty: 12 Months Response Time: Less Than 7ms
High Light:

7ms usb touch screen panel


IR Touch Screen Frame 43 Inch


IR Touch Screen Frame Overlay Kit

43 Inch USB Multi Touch Points IR Touch Screen Ir Touch Frame Overlay Kit


Infrared IR touch screens are one of the most reliable touch technologies on the market today.

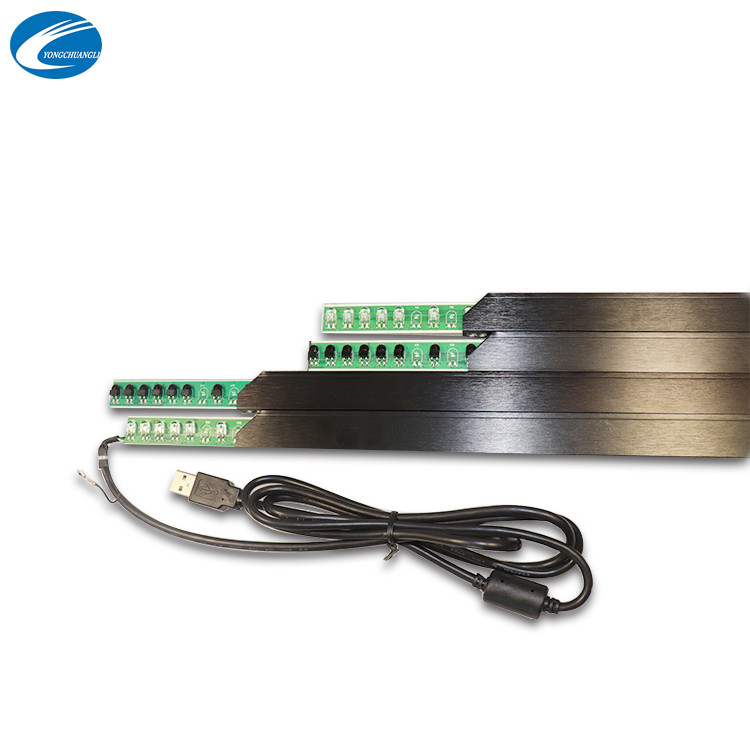

Our infrared touch screens consists of a touch frame which is installed in front of the display. The frame is integrated with a printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. The bezel shields the parts from the operation environment while allowing the IR beams to pass through, so you are left with a grid of invisible beams in front of the display.

7ms USB IR Touch Screen Frame Overlay Kit 43 Inch 32768*32768 Resolution 0

When a touch input is applied, it interrupts the IR light beams. The Photo transistors from X & Y axes detect the IR light beams which have been interrupted and transmit exact signals that identify the X & Y axes coordinates to the PC / host.

Applications for IR Infrared Touch screens include Kiosk, Medical instrumentation, ATM, Retail, Commercial transportation, Advertising display, Digital Signage and many other industrial applications.



1 High stability
Changes in the time or environment will not cause any drift.
2 High light transmittance
The touch screen has no intermediate touch overlay, enabling light transmittance to reach as high as 100%.
3 Long service life
Extremely durable, scratch resistant
4 Easy activation
Touch pressure is not required; no special material is required for touch activation. An activating stylus can be used whether soft or hard – conductor or nonconductor.



General Size  43 inch
Fit in with Panel display device

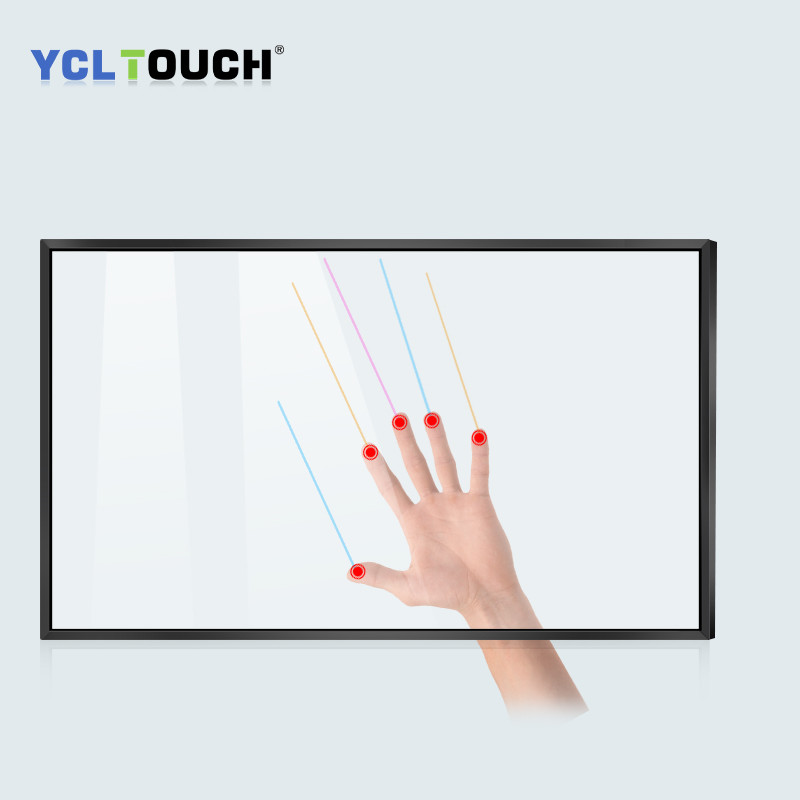

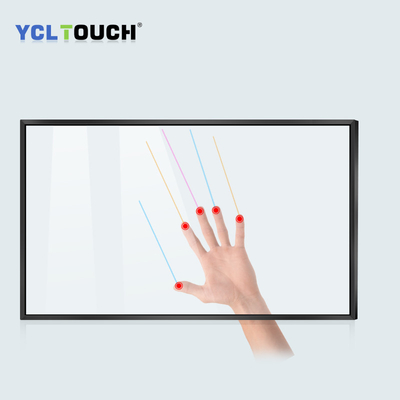

Touch Mode Single-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out
Resolution(Interpolation) 32767*32767
Linearity Error <1mm
Response Speed <15ms
Input Method Finger or gloved hand (rubber ,cloth or leather)
Minimum Touch Object  4mm X 4 mm
Vandal-proof No break by 1-pound steel ball dropping from 130 cm high
Glass: Without glass
Light Transmission 92%
Gloss Antiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units
Temperature Operating Range: -20°C ~ 70°C;
Storage Range: -40°C ~ 85°C
Relative Humidity Operating Range: 0%~90% RH (no dew falls)
Storage Range: 0% to 95% RH (no dew falls)
Ambient Light Direct sunlight 90°to ±30° to the display surface Touch detection operational
Direct sunlight all angles to display surface Free of false touch reports
Operation Voltage Typical +DC 5V, +4.75V to +5.25V
Power Supply Size under 52”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms
Size above 52”(52” not included): external AC-DC power adaptor
Interface Full Duplex USB 2.0 (Full Speed) Plug and play compatible
Plug and play compatible
Current Typical 150MA@+5VDC; 350mA, maximum
Power <1.5W, operating current<300mA
Electrostatic Protection 15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)
Controller Integration inside touch panel
Agency Approvals CE, FCC, Rohs
Operating System

Operation System :windows 7, windows8,windows10, Android, Linux



product description





7ms USB IR Touch Screen Frame Overlay Kit 43 Inch 32768*32768 Resolution 17ms USB IR Touch Screen Frame Overlay Kit 43 Inch 32768*32768 Resolution 2


7ms USB IR Touch Screen Frame Overlay Kit 43 Inch 32768*32768 Resolution 3


Transportation and Payment

7ms USB IR Touch Screen Frame Overlay Kit 43 Inch 32768*32768 Resolution 4


1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA

4. why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.

5. what services can we provide?
Accepted Delivery Terms: FOB,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
