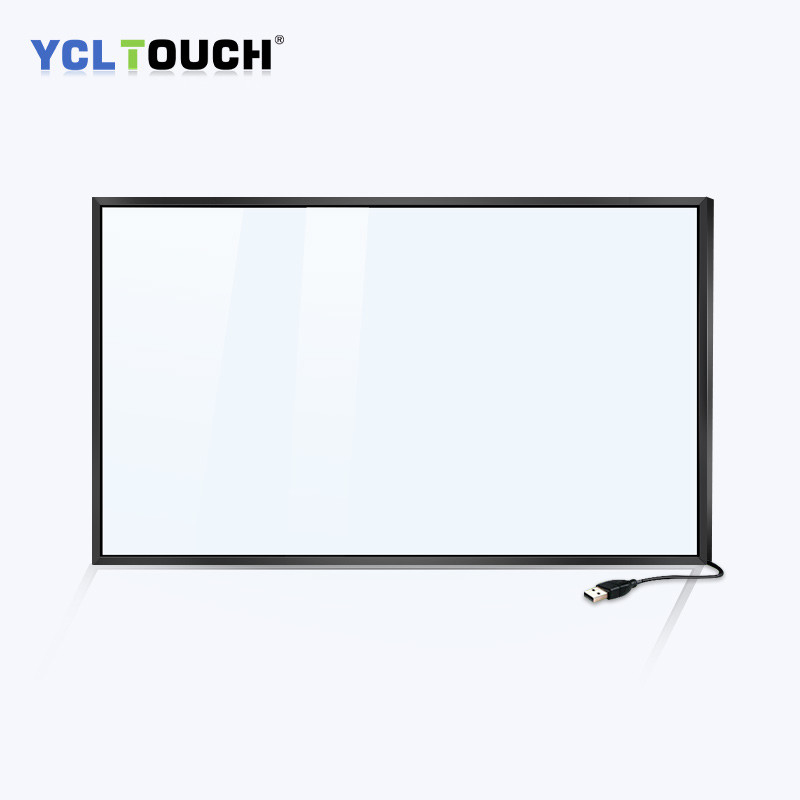

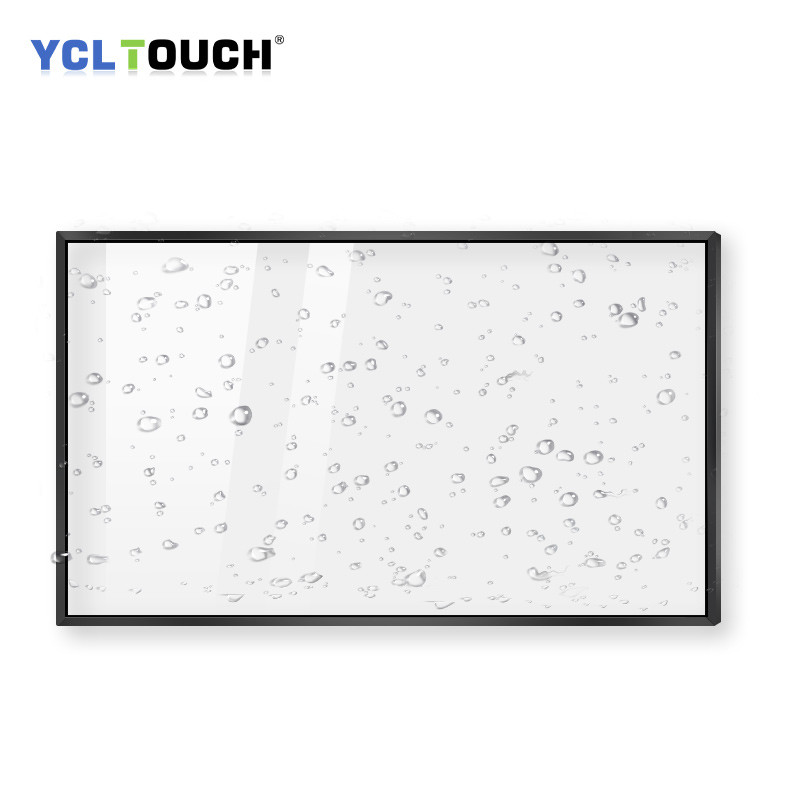

42 Inch IR Touch Screen Frame Overlay Kit 4mm*4mm 20 Points

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO 9001:2000, ce, EMC, LVD
Model Number: LV-42
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Size: 42 Inch Products Status: New, Stock
Brand Name: YCLTOUCH Interface: USB
Touch Screen: Ir Touch Screen Touch Points: 20 Points
High Light:

42 Inch IR Touch Screen Frame


IR Touch Screen Frame 4mm*4mm


42 Touch Screen Overlay

42 inch infrared multi touch frame ir touch screen overlay kit


What is a IR Touch Screen?

YCLTouch IR Touch Frame / Screen is a high-precision IR (Infrared) Multi-touch Screen. with interpolation resolution up to

32768*32768 and can be applied in 7''-500'' display.Any nontransparent substance can be detected and located in the screen. IR
Multi-touch Screen has many advantages such as high precision, fast response, excellent glare-resistive ability and faulty
tolerance, with one time factory calibration.



Specification of Infrared Touch Screen
Touch Screen Size 42"
Touch Points 20-point touch
Minimum Recognition Point Size 4mm*4mm
Supporting resolution 32768×32768
Touch Response Time(Multi touch) 10-15ms
Touch Response Time(One touch) 7ms
Input method Any opaque touches, such as fingers, brushes, etc.
Calibration 4-point calibration
Number of clicks infinite times
Touch pressure No pressure requirement
Line length 1.5m
Interface type 1.5 m USB cable receptacle, the receptacle 5P
Frame Material Aluminium alloy
Glass Material Toughened glass
Characteristic Easy installation, strong compatibility
Scanning frequency >110Hz
communication interface USB 2.0
Power supply mode USB 5.0V
Working Voltage and Current 4.75~5.25V , ≤200mA
Humidity Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃
LED Lifetime 60000hours
Fault-tolerant Able to work if less than10% non-consecutive sensors are damaged
ESD EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge
Anti-light Interference Excellent
Firmware Upgrade USB Upgrade: Windows 8,Windows 7
Support OS(Multi touch) Windows10,Windows8,Windows7,Andriod
Support OS (One touch) WindowsXP,MacOS.Linux



Advantages of our Infrared IR Touch Frame:


High Reliablity IR Touch Frames Series

Multi-touch 20 points

High Compatibility of hardware & Software

Support Operation System Xp/Win7/Win8/Win10/Linux/Android

Perfect Anti-Sun IR Touch Screen Series


Reliability And Durability Data Sheet


High Temperature Stock: 100℃ for 20 hours,normal temperature for 2 hours
Low Temperature Stock: -40℃ for 20 hours,normal temperature for 2 hours
USB Plug In And Out Test: More than 2000 times
High/Low Circle Working: 80℃ for 48 hours,-10℃ for 12 hours
High Humidity Working: 80℃ for 20 hours with 85%


Software Compatibility

Firmware Upgrade:


OS Compatibility:


API(software interface):
able to provide motive links datasheet,DIY API interface is available


Infrared touch screen Features:

1 Anti-light, sunshine from any angle does not affect touch control

2 True 10-point touch, touch experience is not affected by object occlusion

3 Strong anti-jamming ability, anti-static performance of industrial ESD

4 Hardware design of industrial control level, working normally at -15℃~55℃

5 Strong compatibility, drive-free support for multiple operating systems

6 Provide self-developed touch screen configuration software and remote assistance tools

7 Support gesture function, customize output protocol, interface and application development

8 Response fast, sensor discontinuous damage 10%, can still work

9 The size can be customized


Product  Installation


The infrared touch frame TB series is composed of four infrared touch frame strips. When you receive the product, you need to correctly connect the AA, BB, CC, DD corresponding side strips according to the instructions, and you need to ensure that the cable Fasten the safety buckle after fully contacting the connecting PIN socket, so that each contact point of the cable has good conductivity, the unique plug-in installation is simple and easy to operate
