RoHS 55 Inch IR Touch Frame Infrared Touch Screen USB Interface For Monitor

Basic Information
Place of Origin: Guangdong, China
Brand Name: YCLTOUCH
Certification: RoHS, ISO9001, CE, FCC, EMC, LVD
Model Number: LV-55
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 1-3 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Material: Aluminum Alloy Warranty: One-Year
Resolution: 32768*32768 Place Of Origin: China
Interface Type: Usb Aspect Ratio: 16:9
High Light:

RoHS 55 Inch IR Touch Frame


55 Inch IR Touch Frame Monitor


Infrared Touch Screen USB Interface

55 Inch 20 Points IR Touch Frame Infrared Touch Screen Usb Interface For Monitor


Infrared IR touch screens are one of the most reliable touch technologies on the market today.

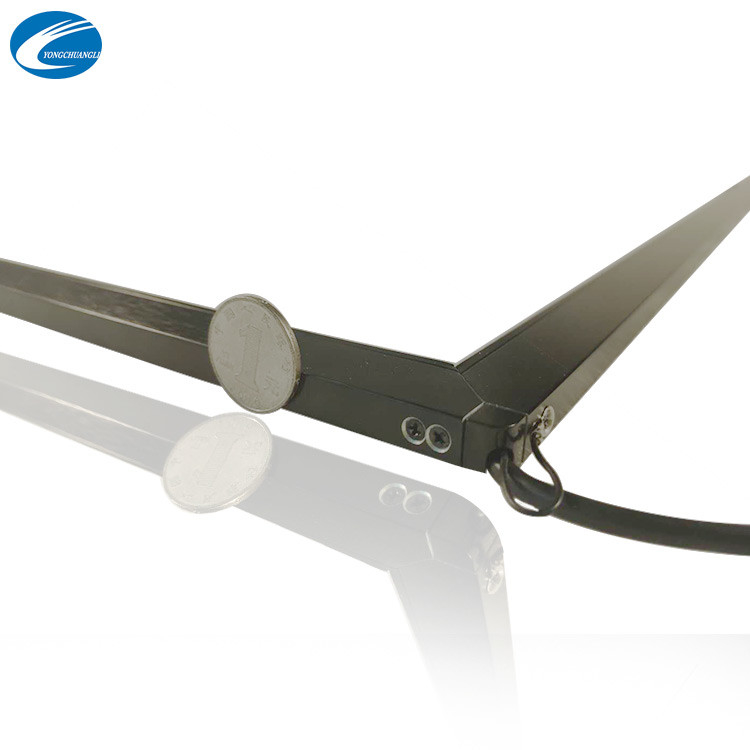

Our infrared touch screens consists of a touch frame which is installed in front of the display. The frame is integrated with a printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. The bezel shields the parts from the operation environment while allowing the IR beams to pass through, so you are left with a grid of invisible beams in front of the display.

RoHS 55 Inch IR Touch Frame Infrared Touch Screen USB Interface For Monitor 0

When a touch input is applied, it interrupts the IR light beams. The Photo transistors from X & Y axes detect the IR light beams which have been interrupted and transmit exact signals that identify the X & Y axes coordinates to the PC / host.

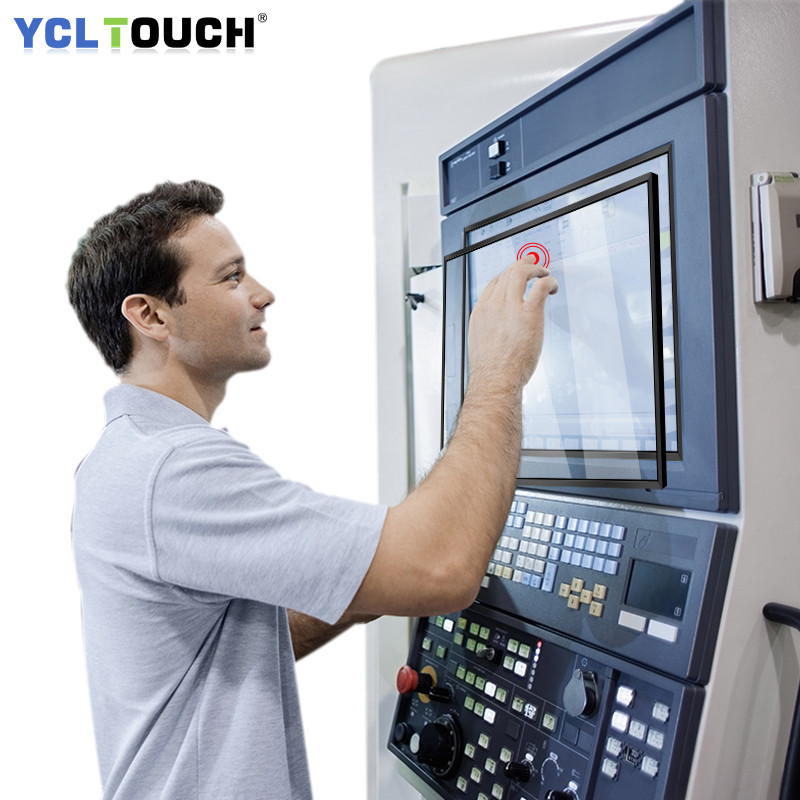

Applications for IR Infrared Touch screens include Kiosk, Medical instrumentation, ATM, Retail, Commercial transportation, Advertising display, Digital Signage and many other industrial applications.




product description


Specification of Infrared Touch Screen
Touch Screen Size 55"
Touch Points 20-point touch
Minimum Recognition Point Size 4mm*4mm
Supporting resolution 32768×32768
Touch Response Time(Multi touch) 10-15ms
Touch Response Time(One touch) 7ms
Input method Any opaque touches, such as fingers, brushes, etc.
Calibration 4-point calibration
Number of clicks nfinite times
Touch pressure No pressure requirement
Interface type 1.5 m USB cable receptacle, the receptacle 5P
Line length 1.5m
Frame Material Aluminium alloy
Glass Material Toughened glass
Characteristic Easy installation, strong compatibili
Scanning frequency >110Hz
communication interface USB 2.0
Power supply mode USB 5.0V
Working Voltage and Current 4.75~5.25V , ≤200mA
Humidity Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃
LED Lifetime 60000hours
Fault-tolerant Able to work if less than10% non-consecutive sensors are damaged
Anti-light Interference Excellent
ESD EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge
Firmware Upgrade USB Upgrade: Windows 8,Windows 7
Support OS(Multi touch) Windows10,Windows8,Windows7,Andriod
Support OS (One touch) WindowsXP,MacOS.Linux

RoHS 55 Inch IR Touch Frame Infrared Touch Screen USB Interface For Monitor 1RoHS 55 Inch IR Touch Frame Infrared Touch Screen USB Interface For Monitor 2


RoHS 55 Inch IR Touch Frame Infrared Touch Screen USB Interface For Monitor 3


Transportation and Payment

RoHS 55 Inch IR Touch Frame Infrared Touch Screen USB Interface For Monitor 4


1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA

4. why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.

5. what services can we provide?
Accepted Delivery Terms: FOB,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
