| Place of Origin: | China |
|---|---|
| Brand Name: | YCLTOUCH |
| Certification: | RoHS, ISO 9001:2000, ce, EMC, LVD |
| Model Number: | LV-75 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 3-7Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000/month |
| Size: | 75 Inch | Other Name: | IR Touch Frame |
|---|---|---|---|
| Interface Type: | Usb | Certification: | RoHS, ISO9001, Ce, FCC, EMC, LVD |
| Warranty(Year): | ONE-Year | Structure: | Openframe |
75'' 16:9 Ratio Multi-Touch IR Touch Frame,Touch Screen Overlay Kit
What is a IR Touch Screen?
YCLTouch IR Touch Frame / Screen is a high-precision IR (Infrared) Multi-touch Screen. with interpolation resolution up to
32768*32768 and can be applied in 7''-500'' display.Any nontransparent substance can be detected and located in the screen. IR
Multi-touch Screen has many advantages such as high precision, fast response, excellent glare-resistive ability and faulty
tolerance, with one time factory calibration.
overview
Specification
| Specification of Infrared Touch Screen | |
| Touch Screen Size | 75" |
| Touch Points | 20-point touch |
| Minimum Recognition Point Size | 4mm*4mm |
| Supporting resolution | 32768×32768 |
| Touch Response Time(Multi touch) | 10-15ms |
| Touch Response Time(One touch) | 7ms |
| Input method | Any opaque touches, such as fingers, brushes, etc. |
| Calibration | 4-point calibration |
| Number of clicks | nfinite times |
| Touch pressure | No pressure requirement |
| Line length | 1.5m |
| Interface type | 1.5 m USB cable receptacle, the receptacle 5P |
| Frame Material | Aluminium alloy |
| Glass Material | Toughened glass |
| Characteristic | Easy installation, strong compatibility |
| Scanning frequency | >110Hz |
| communication interface | USB 2.0 |
| Power supply mode | USB 5.0V |
| Working Voltage and Current | 4.75~5.25V , ≤200mA |
| Humidity | Up to 90% RH from 0°C to +40°C, non-condensing |
| Temperature Range | Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃ |
| LED Lifetime | 60000hours |
| Fault-tolerant | Able to work if less than10% non-consecutive sensors are damaged |
| ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge |
| Anti-light Interference | Excellent |
| Firmware Upgrade | USB Upgrade: Windows 8,Windows 7 |
| Support OS(Multi touch) | Windows10,Windows8,Windows7,Andriod |
| Support OS (One touch) | WindowsXP,MacOS.Linux |
Infrared Touch Panel Working Principal
IR Touch Screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts from the operation
Advantages of our Infrared IR Touch Frame:
High Reliablity IR Touch Frames Series

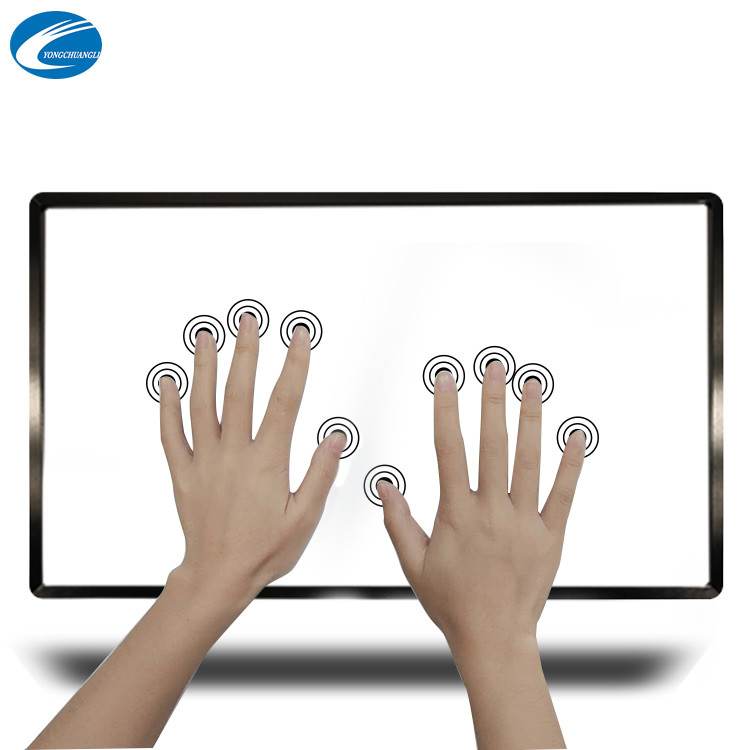

Multi-touch 20 points
High Compatibility of hardware & Software
Support Operation System Xp/Win7/Win8/Win10/Linux/Android
Perfect Anti-Sun IR Touch Screen Series
Product Application
Packing and Delivery
FAQ
1 who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.
2 how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA
4 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.
5 what services can we provide?
Accepted Delivery Terms: FOB,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
