| Place of Origin: | China |
|---|---|
| Brand Name: | YCLTOUCH |
| Certification: | RoHS, ISO 9001:2000, ce, EMC, LVD |
| Model Number: | LV-32 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 1-3 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000/month |
| Size: | 32inch | Keywords: | Multi Touch Infrared |
|---|---|---|---|
| Interface: | USB 2.0(full-speed) | Warranty: | 1 Year |
| Product Name: | YCLTOUCH | Products Status: | New |
| Material: | Aluminum Alloy Frame | Package: | Yes |
| High Light: | Touch Screen Glass Overlay 7ms,32 Inch Touch Screen Glass Overlay,IR Touch Frame 32 Inch |
||

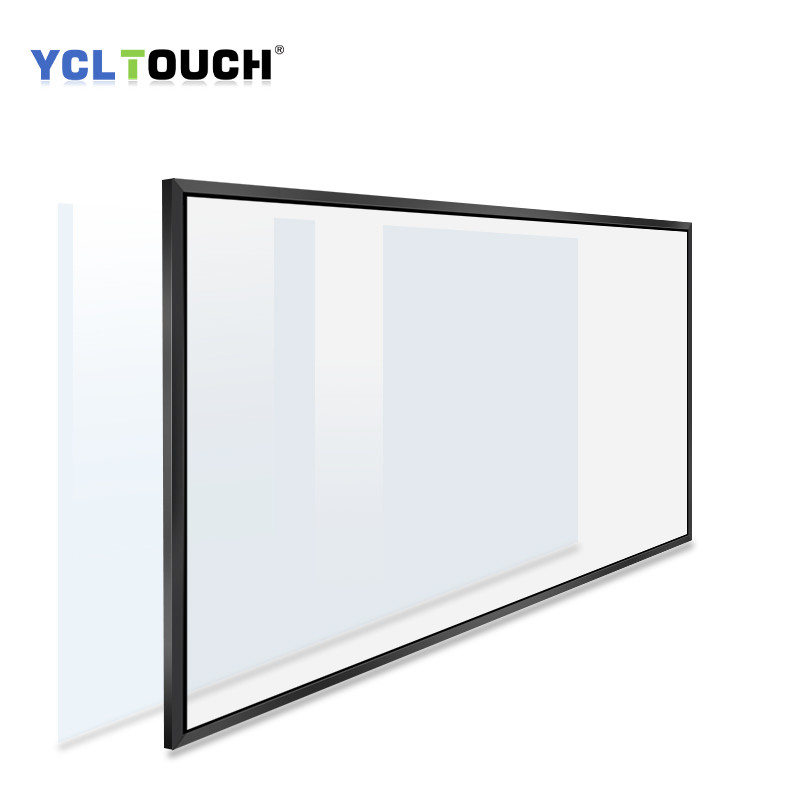

32 Inch Ir Touch Frame Infrared Multi Touch Screen Panel, Ir Touch Screen
Overview

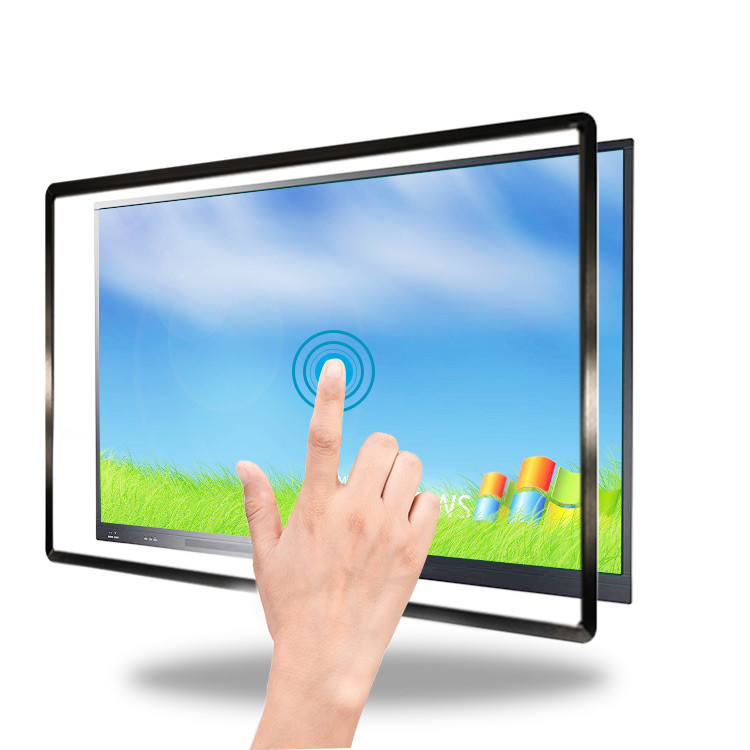

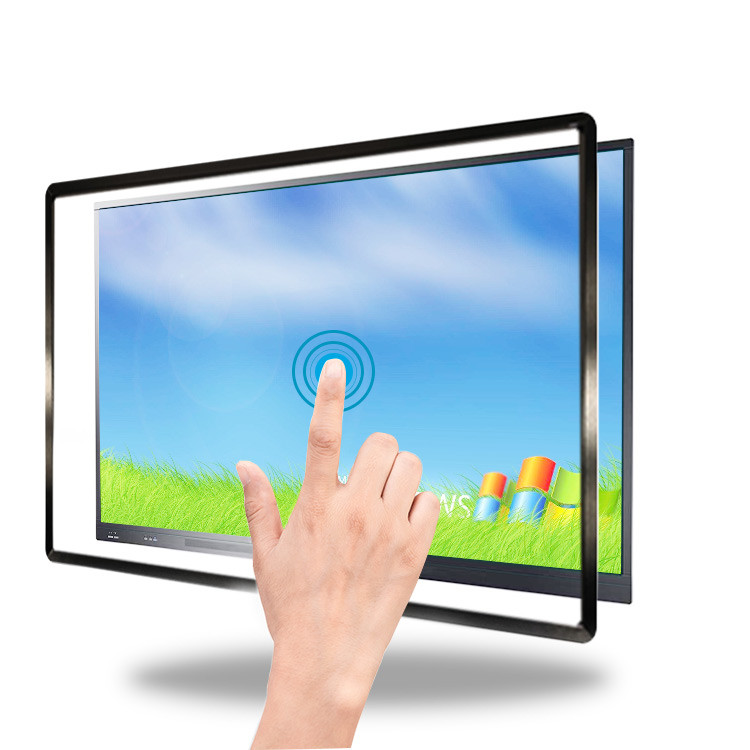

Infrared touch uses light emitting diodes and sensors that are embedded in a bezel around the display and emit and detect rows and columns of infrared light across the face of the display. This creates an invisible grid of infrared beams and on the opposite side of the display from the emitters, photodetectors or sensors identify touch when the plane of the grid is broken by a finger touch (or other solid object). In other words, infrared touch screens operate on the basis of light-beam interruption, commonly referred to as beam break, to determine the location of touch events.
Specification
|
Touch Screen Size
|
32 |
|
Supporting resolution
|
32768×32768
|
|
Touch Response Time(Multi touch)
|
10-15ms
|
|
Touch Response Time(One touch)
|
7ms
|
|
Input method
|
Any opaque touches, such as fingers, brushes, etc.
|
|
calibration
|
4-point calibration
|
|
Number of clicks
|
Infinite times
|
|
Touch pressure
|
No pressure requirement
|
|
Interface type
|
1.5 m USB cable receptacle, the receptacle 5P
|
|

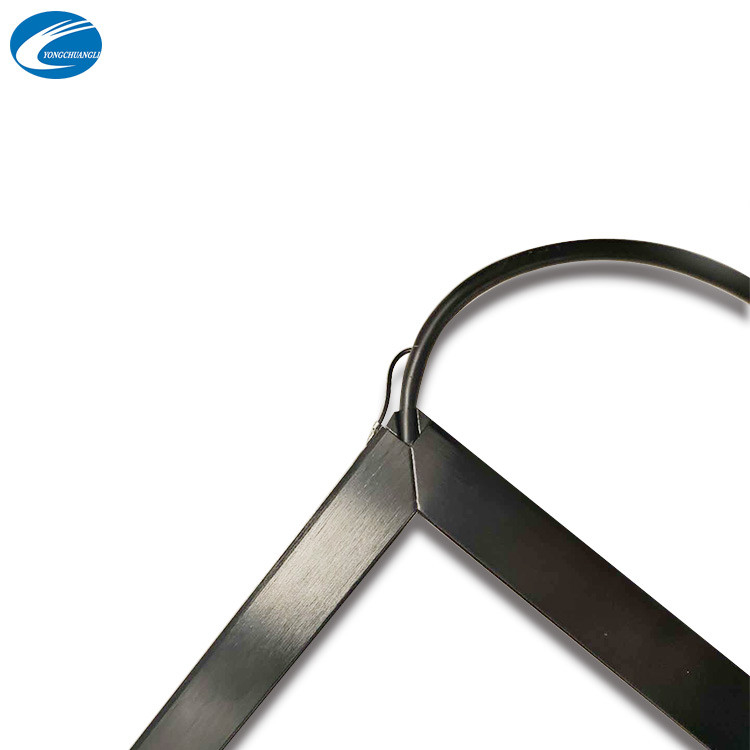

Frame Material
|
Aluminium alloy
|
|
Glass Material
|
Toughened glass
|
|
Scanning frequency
|
>110Hz
|
|
Characteristic
|
Easy installation, strong compatibility
|
|
communication interface
|
USB 2.0
|
|
Power supply mode
|
USB 5.0V
|
|
Working Voltage and Current
|
4.75~5.25V , ≤200mA
|
|
Humidity
|
Up to 90% RH from 0°C to +40°C, non-condensing
|
|
Temperature Range
|
Working temperature:-10℃～50℃,Storage temperature:-20℃～60℃
|
|
LED Lifetime
|
60000hours
|
|
Fault-tolerant
|
Able to work if less than
10% non-consecutive sensors are damaged |
|
Firmware Upgrade
|
USB Upgrade: Windows 8,Windows 7
|
|
Anti-light Interference
|
Excellent
|
|
Support OS(Multi touch)
|
Windows10,Windows8,Windows7,Andriod
|
|
Support OS (One touch)
|
WindowsXP,MacOS.Linux
|
Infrared Touch Panel Working Principal

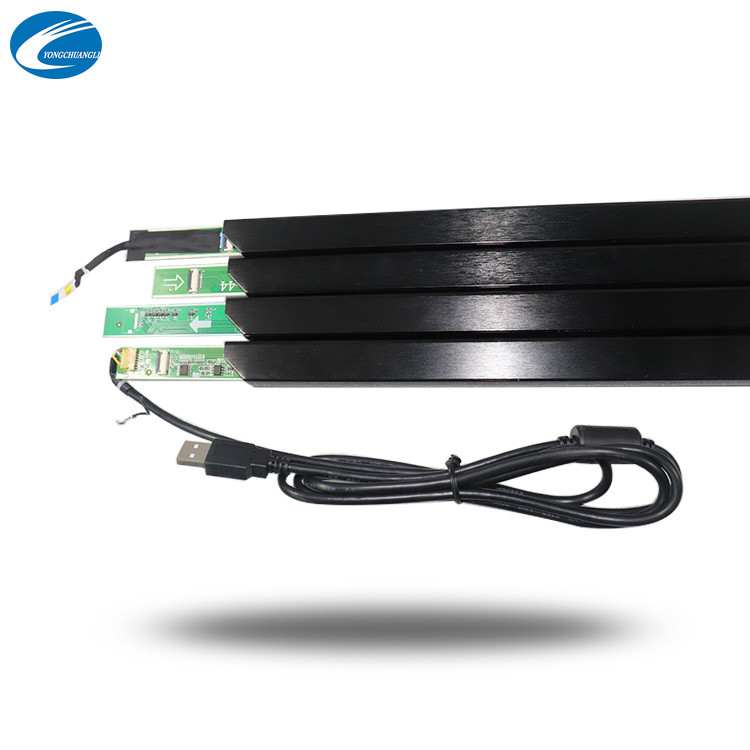

IR Touch Screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts from the operation
