| Place of Origin: | China |
|---|---|
| Brand Name: | YCLTOUCH |
| Certification: | RoHS, ISO 9001:2000, ce, EMC, LVD |
| Model Number: | LV-39 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 3-7Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000/month |
| Size: | 39 Inch | Other Name: | Infrared Touch Frame |
|---|---|---|---|
| Aspect Ratio:: | 16:9 | Interface Type: | : Usb |
| Touch Points: | 20 Points | Touch Screen: | IR Multi Touch Screen |
| Certification: | RoHS, ISO9001, Ce, FCC, EMC, LVD | Warranty(Year): | 1-Year |

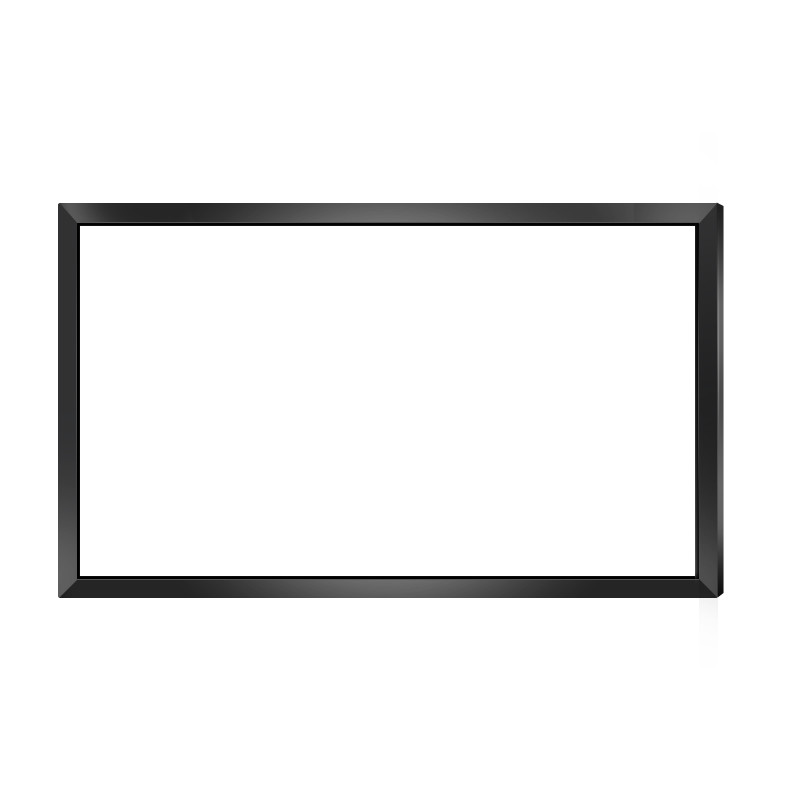

YCLTOUCH 39 inch multi point infrared ir touch screen frame,Ir Touch Frame
overview
Specification
| Specification of Infrared Touch Screen | |
| Touch Screen Size | 39" |
| Touch Points | 20-point touch |
| Minimum Recognition Point Size | 4mm*4mm |
| Supporting resolution | 32768×32768 |
| Touch Response Time(Multi touch) | 10-15ms |
| Touch Response Time(One touch) | 7ms |
| Input method | Any opaque touches, such as fingers, brushes, etc. |
| Calibration | 4-point calibration |
| Number of clicks | nfinite times |
| Touch pressure | No pressure requirement |
| Line length | 1.5m |
| Interface type | 1.5 m USB cable receptacle, the receptacle 5P |
| Frame Material | Aluminium alloy |
| Glass Material | Toughened glass |
| Characteristic | Easy installation, strong compatibility |
| Scanning frequency | >110Hz |
| communication interface | USB 2.0 |
| Power supply mode | USB 5.0V |
| Working Voltage and Current | 4.75~5.25V , ≤200mA |
| Humidity | Up to 90% RH from 0°C to +40°C, non-condensing |
| Temperature Range | Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃ |
| LED Lifetime | 60000hours |
| Fault-tolerant | Able to work if less than10% non-consecutive sensors are damaged |
| ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge |
| Anti-light Interference | Excellent |
| Firmware Upgrade | USB Upgrade: Windows 8,Windows 7 |
| Support OS(Multi touch) | Windows10,Windows8,Windows7,Andriod |
| Support OS (One touch) | WindowsXP,MacOS.Linux |
Infrared Touch Panel Working Principal

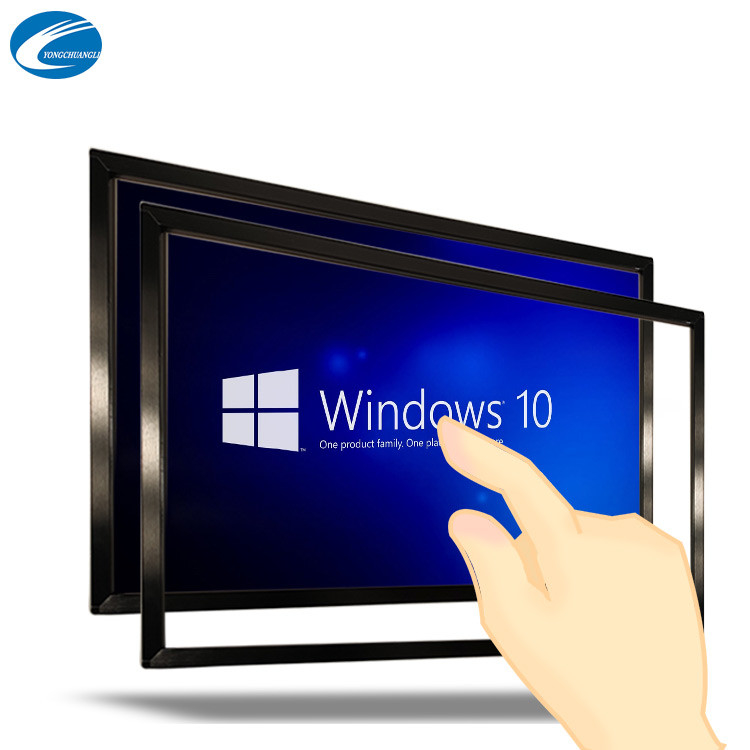

IR Touch Screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts from the operation
Advantages of our Infrared IR Touch Frame:
High Reliablity IR Touch Frames Series
Multi-touch 20 points
High Compatibility of hardware & Software
Support Operation System Xp/Win7/Win8/Win10/Linux/Android
Perfect Anti-Sun IR Touch Screen Series
Product Application
Packing and Delivery
