USB IR Touch Screen Frame 20 Points 50 Inch Touch Screen Panel Kit

Basic Information
Place of Origin: Guangdong, China
Brand Name: YCLTOUCH
Certification: RoHS, ISO9001, CE, FCC, EMC, LVD
Model Number: YCL-LV50
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 1-3 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Interface Type: USB Type: Infrared(IR)
Screen Size: 50" Products Status: Stock
Touch Points: 20 Multi Point Touch Product Name: IR Touch Frame
High Light:

USB IR Touch Screen Frame


IR Touch Screen Frame 20 Points


50 Inch Touch Screen Panel Kit

50 Inch 20 Points Multi-Touch Infrared Touch Frame IR Touch Panel


What is a IR Touch Screen ?

YCLTOUCH IR Touch Frame / Screen is a high-precision IR (Infrared) Multi-touch Screen. with interpolation resolution up to 32768*32768 and can be applied in 15''-500'' display.Any nontransparent substance can be detected and located in the screen. IR Multi-touch Screen has many advantages such as high precision, fast response, excellent glare-resistive ability and faulty tolerance, with one time factory calibration.

What is Multi-Touch?

Multi-touch is a method of input on a touchscreen that allows two or more fingers to be used on the screen at one time.YCLTOUCH's LV Serial Touch Frame is famous for introducing multi-touch to the game machine,KIOSK interactive display,Adverstising Display in the world by using it to allow pinching and stretching gestures on the screen to control zooming. Multi-touch is something typically associated with the newest Infrared touchscreen technology.



Specification of Infrared Touch Screen
Touch Screen Size 50"
Touch Points 20-point touch
Minimum Recognition Point Size 4mm*4mm
Supporting resolution 32768×32768
Touch Response Time(Multi touch) 10-15ms
Touch Response Time(One touch) 7ms
Input method Any opaque touches, such as fingers, brushes, etc.
Calibration 4-point calibration
Number of clicks nfinite times
Touch pressure No pressure requirement
Interface type 1.5 m USB cable receptacle, the receptacle 5P
Line length 1.5m
Frame Material Aluminium alloy
Glass Material Toughened glass
Characteristic Easy installation, strong compatibility
Scanning frequency >110Hz
communication interface USB 2.0
Power supply mode USB 5.0V
Working Voltage and Current 4.75~5.25V , ≤200mA
Humidity Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃
LED Lifetime 60000hours
Fault-tolerant Able to work if less than10% non-consecutive sensors are damaged
Anti-light Interference Excellent
ESD EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge
Firmware Upgrade USB Upgrade: Windows 8,Windows 7
Support OS(Multi touch) Windows10,Windows8,Windows7,Andriod
Support OS (One touch) WindowsXP,MacOS.Linux

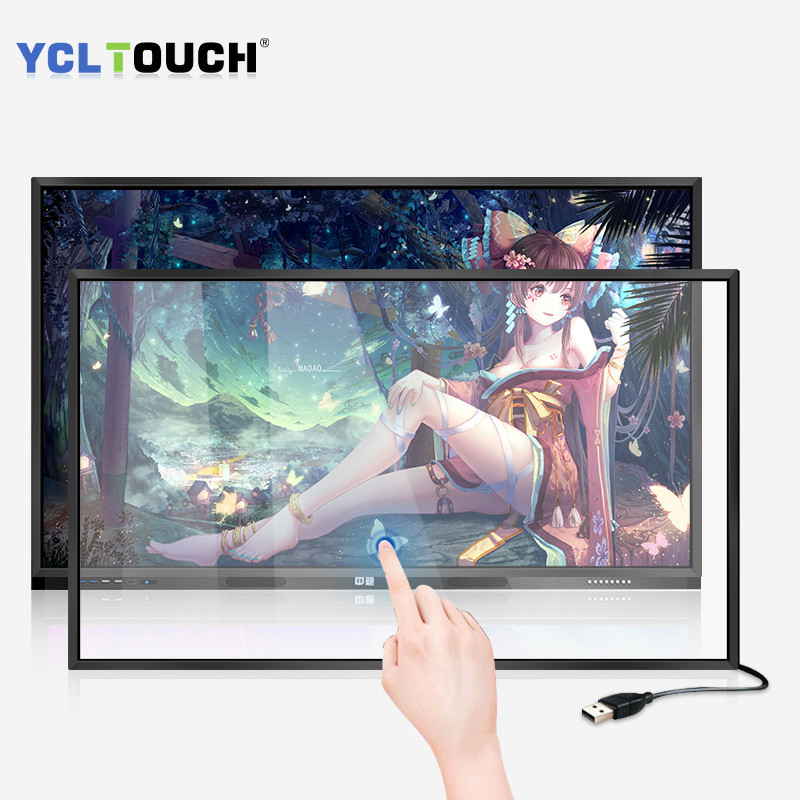

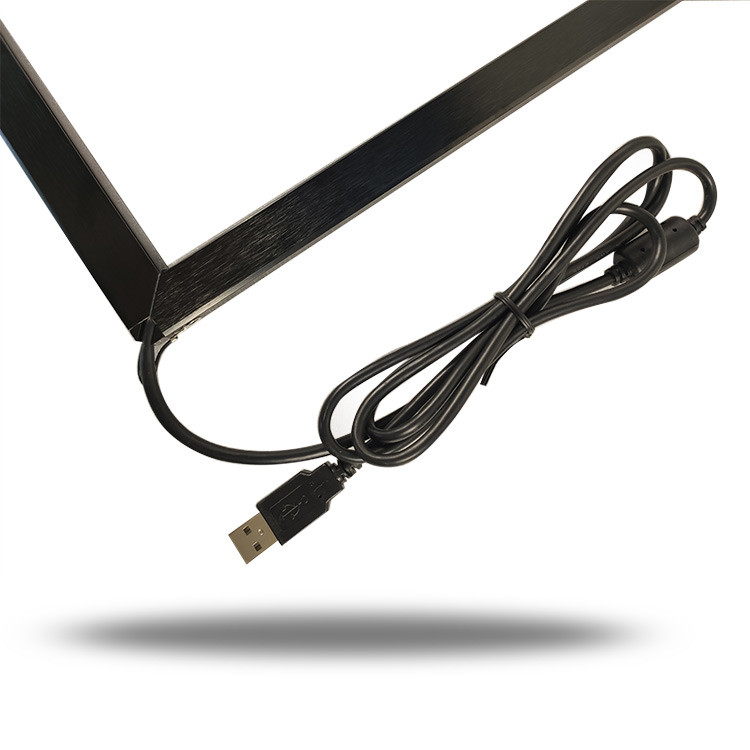

USB IR Touch Screen Frame 20 Points 50 Inch Touch Screen Panel Kit 0USB IR Touch Screen Frame 20 Points 50 Inch Touch Screen Panel Kit 1


USB IR Touch Screen Frame 20 Points 50 Inch Touch Screen Panel Kit 2


Transportation and Payment

USB IR Touch Screen Frame 20 Points 50 Inch Touch Screen Panel Kit 3


1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA

4. why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.

5. what services can we provide?
Accepted Delivery Terms: FOB,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
