75 inch IR Touch Screen Frame Overlay Kit Infrared Touch Screen Devices

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO 9001:2000, ce, EMC, LVD
Model Number: LV-75
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Size: 75 Inch Other Name: IR Touch Frame
Aspect Ratio:: 16:9 Interface Type: Usb
Touch Points: 20 Points Touch Screen: IR Multi Touch Screen
Certification: RoHS, ISO9001, Ce, FCC, EMC, LVD Warranty(Year): One-Year
High Light:

75 inch IR Touch Screen Frame


IR Touch Screen Frame Overlay Kit


Infrared Touch Screen Devices

75'' 16:9 Ratio Multi-Touch IR Touch Frame,Touch Screen Overlay Kit



Overview of Infrared Touchscreen Technology

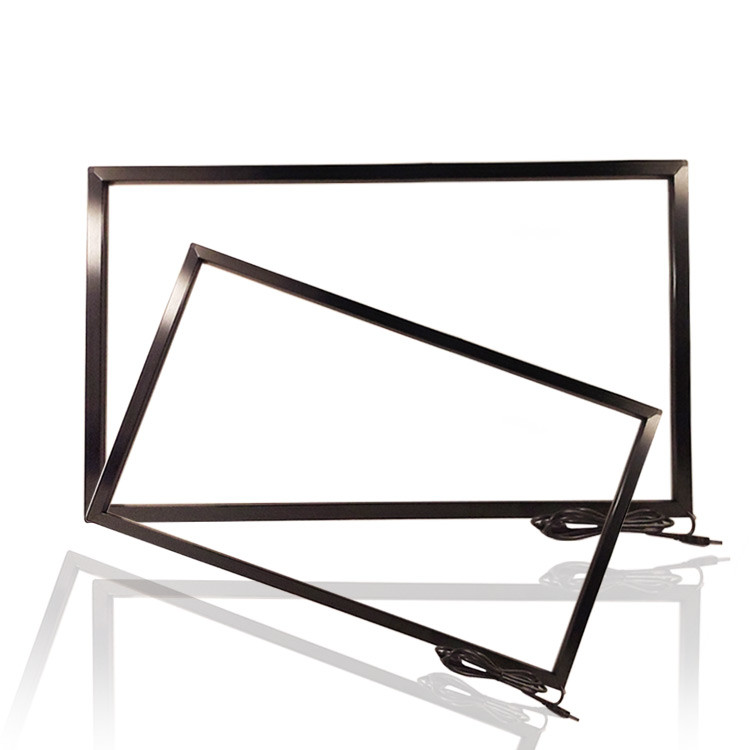

75 inch IR Touch Screen Frame Overlay Kit Infrared Touch Screen Devices 0IR touchscreen devices support touch-based input just like any other touchscreen device. However, the way in which they identify touch commands is completely unique. Capacitive touchscreen devices identify touch by measuring changes in capacitive, whereas resistive touchscreen devices identify touch by pressing together an upper and bottom layer. In comparison, IR touchscreens identify touchby looking for interruptions in a uniform beam of light.

Basically, IR touchscreens have a grid-like array of LED lights and photodetectors (sensors) around the edges of the device. While invisible to the naked eye, these LEDs are constantly emitting and projecting light. When you touch the surface, it creates a disturbance in this light. The device can then look to determine where this disturbance occurred; thus, allowing it to identify the precise point of contact.



IR Touch Screen Frame Overlay Specifications
P/N YCLTOUCH IR Infrared Touch Frame
Available Size 15"- 500"
Glass 3 -12 mm Normally. Thickness does not effect touch experiences
Housing Aluminum frame
Input Method Finger or touch pen
Touch Points 20 Points
Touch Activation Force Non Minimum activation force
Position Accuracy 1mm
Response Time Touch: 7ms
Drawing : 7-15ms
Cursor Speed 120 dot/sec
Glass 4mm glass Transparency : 92%
Object Touch Size ≥ Ø4mm
Touch Intensity Over 60 millions
Operating Voltage DC 4.5V ~ DC 5.5V
Power 1.0W (100mA at DC 5V)
Anti -Static Discharge Touch Discharge,Grade 2:Lab Vol 4KV
(Standard :B) Air Discharge,Grade 3:Lab Vol 8KV
Temperature operating:-10 °C ~ 60 °C
storage:-30°C ~ 70 °C
Humidity operating:20% ~85%
Relative Humidity 40 °C,90% RH
Anti – glare Test Incandescent lamp (220V,100W) ,
operating distance over 350mm
Altitude 3,000m
Interface USB2.0 full speed
Detection Method Infrared rays
Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof)
Working Environment Directly Under sunlight ,indoor and Semi-outdoor
Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
Scanning Auto full screen scanning
Operate system Window xp,Windows 7,Windows 8,Windows 10, Andriod,Linux
Calibration tool Plug and works


Product Application



75 inch IR Touch Screen Frame Overlay Kit Infrared Touch Screen Devices 1



75 inch IR Touch Screen Frame Overlay Kit Infrared Touch Screen Devices 2


Transportation and Payment

75 inch IR Touch Screen Frame Overlay Kit Infrared Touch Screen Devices 3


1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA

4. why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.
