Open Frame 42 Inch Touch Screen Overlay Kit 20 Point Aluminum Alloy

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO 9001:2000, ce, EMC, LVD
Model Number: LV-42
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 1-3 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Size: 42 Inch Response Time: 5ms
Structure: Openframe Products Status: New
Application: ATM.POS.Open Frame Machine ...etc After-sales Service: Call Center And On-line Technical Support, Onsite Training And Inspection, Free Spare Parts, Repair, Others
Warranty(Year): 1-year Certification: RoHS, CCC, ISO9001, Ce, FCC, EMC, LVD
High Light:

Openframe 42 Inch Touch Screen Overlay


42 Inch Touch Screen Overlay Kit


Open Frame Touch Screen 20 Point

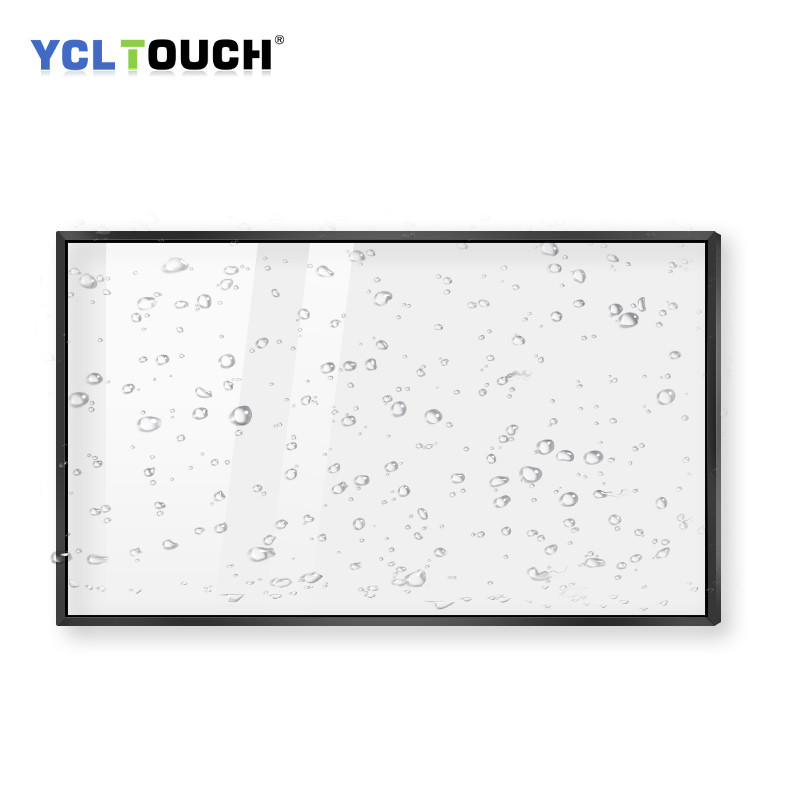

42 Inch Aluminum Alloy Ir Touch Screen frame 20 Touch Points Open Frame Overlay Kit


IR Touch Frames



Specification of Infrared Touch Screen
Touch Screen Size 42
Touch Points 20-point touch
Minimum Recognition Point Size 4mm*4mm
Supporting resolution 32768×32768
Touch Response Time(Multi touch) 10-15ms
Touch Response Time(One touch) 7ms
Input method Any opaque touches, such as fingers, brushes, etc.
Calibration 4-point calibration
Number of clicks nfinite times
Touch pressure No pressure requirement
Interface type 1.5 m USB cable receptacle, the receptacle 5P
Line length 1.5m
Frame Material Aluminium alloy
Glass Material Toughened glass
Characteristic Easy installation, strong compatibility
Scanning frequency >110Hz
Power supply mode USB 5.0V
communication interface USB 2.0
Working Voltage and Current 4.75~5.25V , ≤200mA
Humidity Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃
LED Lifetime 60000hours
Fault-tolerant Able to work if less than10% non-consecutive sensors are damaged
Anti-light Interference Excellent
Firmware Upgrade USB Upgrade: Windows 8,Windows 7
ESD EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge
Support OS(Multi touch) Windows10,Windows8,Windows7,Andriod
Support OS (One touch) WindowsXP,MacOS.Linux



What is Multi-Touch?

Multi-touch refers to a touch system’s ability to simultaneously detect and resolve a minimum of 2+ touch points. All 2 or more touches are detected and fully resolved resulting in a dramatically improved touch experience



 Product Application



Open Frame 42 Inch Touch Screen Overlay Kit 20 Point Aluminum Alloy 0



company Imformation


Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

  Shenzhen Yongchuangli Electronic Technology Co., a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.

  Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.

  Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!

The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.

  Innovation embellishes the future.


Open Frame 42 Inch Touch Screen Overlay Kit 20 Point Aluminum Alloy 1



 Packing and Delivery

Open Frame 42 Inch Touch Screen Overlay Kit 20 Point Aluminum Alloy 2Open Frame 42 Inch Touch Screen Overlay Kit 20 Point Aluminum Alloy 3
