46 USB Touch Screen Overlay Frame 20 Points 1 Year Warranty

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO 9001:2000, ce, EMC, LVD
Model Number: LV-46
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Size: 46 Inch Style: Any Platform
Interface Type: USB Products Status: Stock
Touch Point: 20 Points Working Voltage And Current: 4.75~5.25V , ≤200mA
Operating System: Winxp/Win7/Win8/Win10/Andriod/MacOS/Linux Warranty: 1 Year
High Light:

USB Touch Screen Overlay Frame


46 USB Touch Screen Overlay


46 Touch Screen Overlay 20 Points

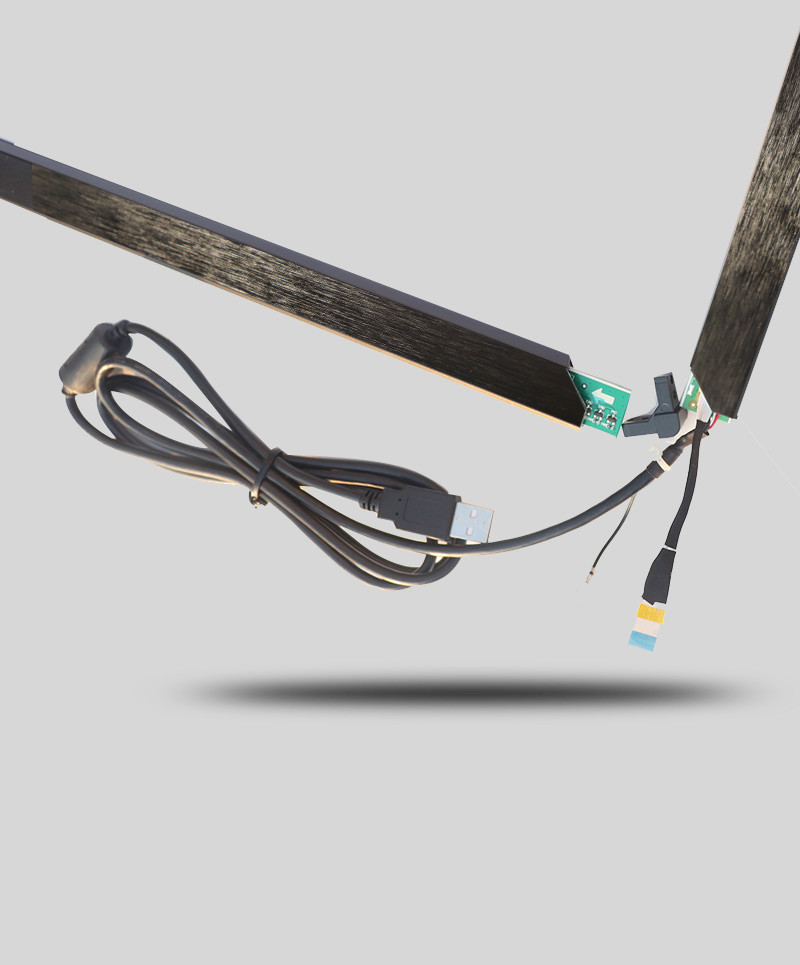

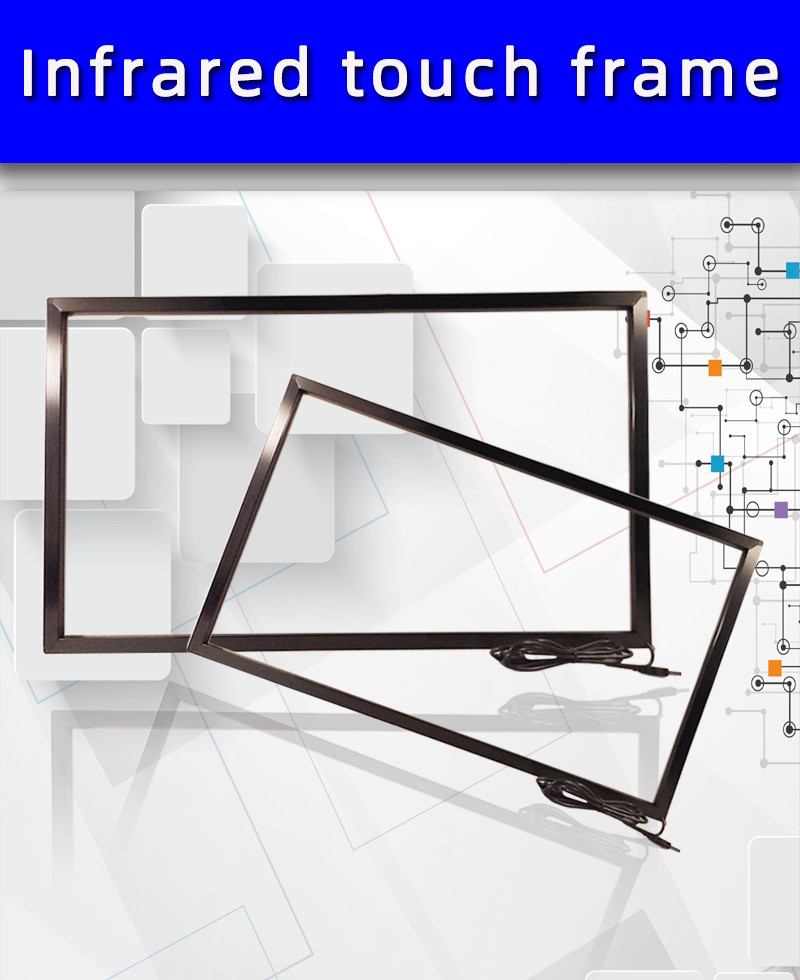

46 Inch Ir Touch Screen frame 20 Touch Points Touch panel Frame Overlay Kit

Infrared touch screen Features:
1 Ultra-thin and ultra-narrow frame, aluminium alloy shell.
2 High touch accuracy and smooth writing.
3 Driver-free support for multiple operating systems.
4 Long service life, maintenance-free.
5 Toughened glass material, with high transmittance, strong stability.
6 Strong anti-jamming ability, anti-static performance of industrial ESD.
7 Response speed (less than 7 milliseconds), sensor discontinuous damage 10%, can still work.
8 No special touch tools are needed, just opaque objects.



Specification of Infrared Touch Screen
Touch Screen Size 46
Touch Points 20-point touch
Minimum Recognition Point Size 4mm*4mm
Supporting resolution 32768×32768
Touch Response Time(Multi touch) 10-15ms
Touch Response Time(One touch) 7ms
Input method Any opaque touches, such as fingers, brushes, etc.
Calibration 4-point calibration
Number of clicks nfinite times
Touch pressure No pressure requirement
Interface type 1.5 m USB cable receptacle, the receptacle 5P
Line length 1.5m
Frame Material Aluminium alloy
Glass Material Toughened glass
Characteristic Easy installation, strong compatibility
Scanning frequency >110Hz
Power supply mode USB 5.0V
communication interface USB 2.0
Working Voltage and Current 4.75~5.25V , ≤200mA
Temperature Range Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃


Up to 90% RH from 0°C to +40°C, non-condensing

LED Lifetime 60000hours
 Anti-light Interference Excellent
 Fault-tolerant  Able to work if less than10% non-consecutive sensors are damaged
Firmware Upgrade USB Upgrade: Windows 8,Windows 7
ESD EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge
Support OS( One touch) WindowsXP,MacOS.Linux
Support OS (Multi touch) Windows10,Windows8,Windows7,Andriod



What is Multi-Touch?

Multi-touch refers to a touch system’s ability to simultaneously detect and resolve a minimum of 2+ touch points. All 2 or more touches are detected and fully resolved resulting in a dramatically improved touch experience



 Product Application


46 USB Touch Screen Overlay Frame 20 Points 1 Year Warranty 0



company Imformation


Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

  Established in 2013, Shenzhen Yongchuangli Electronic Technology Co., Ltd. is a high-tech enterprise specializing in R&D,production and sales of infrared touch PCBA , touch frame, touch screen, splicing screens, smart interactive electronic whiteboard(projection) and so on. It has obtained nearly 10 practical technical softwares in China, and has truly achievemore than 64touch points. Control solution provider.

We has iour own brand YCLTouch and Yongchuangli; Yongchuangli Touch is based on touch query machine, industrial touch display and touch tablet computer (including embedded), information open system solutions; leading touch technology and quality-oriented Yongchuangli spirit make Yongchuangli become a full-fledged company in touch screen industry. Vigorous industry pioneers.
  Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!
  The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.
  The company's core philosophy: touch embellishment of the future!


46 USB Touch Screen Overlay Frame 20 Points 1 Year Warranty 1



 Packing and Delivery

46 USB Touch Screen Overlay Frame 20 Points 1 Year Warranty 246 USB Touch Screen Overlay Frame 20 Points 1 Year Warranty 3



1 who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Western Europe(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.

2 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Screen,Interactive Whiteboard,Infrared PCBA Module


3 how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.

5 what services can we provide?
Accepted Delivery Terms: FOB,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
