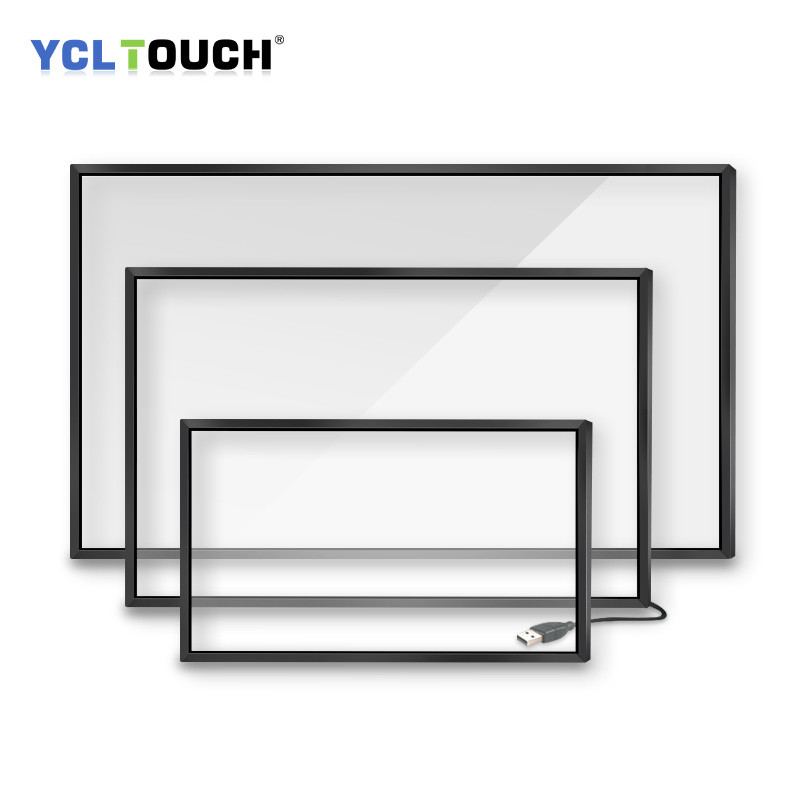

42 inch infrared touch Frame overlay kits ir touch frame sensor

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO 9001:2000, ce, EMC, LVD
Model Number: YCL-LV42
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Operating System: Linux,Android,XP Win7 8 Android Linux,MAC OS X Warranty: 12 Months
Power Supply: USB Or RS232 Technology: Infrared Rays
Material: Aluminum Alloy Frame Resolution: 32768*32768

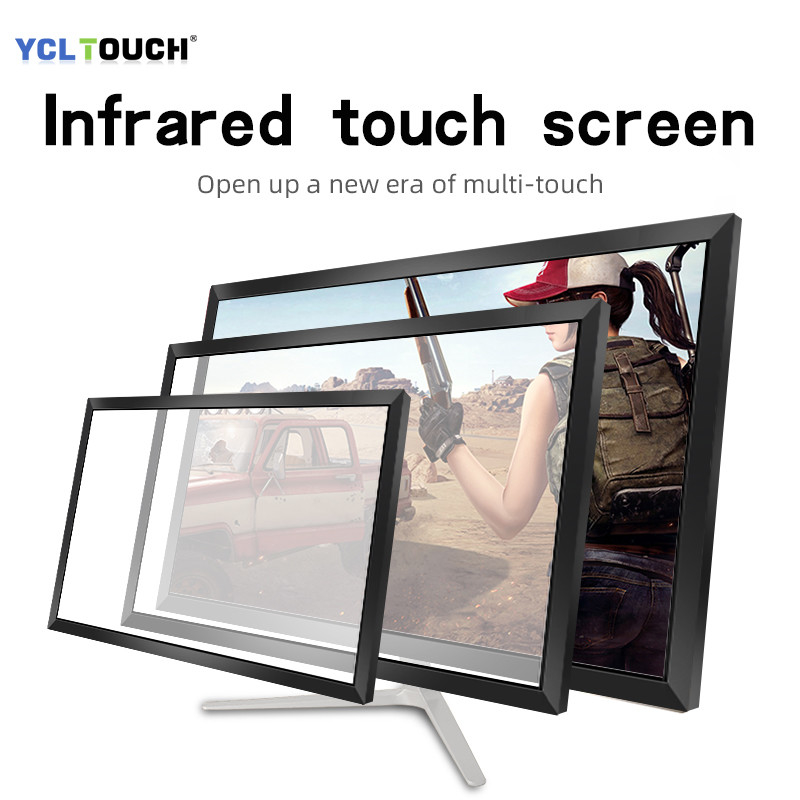

42 Inch Ir Touch Screen Frame Ir Touch Frame For Lcd Monitor And Koisk Equipment



Infrared touch frame is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch frame installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen.

> 10-64 multi touch point
32768*32768 Resolution, USB  Interface
> Withstands severe environments
> Stable, no-drift calibration performance
> Material is tempered glass with high light transmittance
> Finger, gloved hand and touch pen activation
> Operable in various light conditions, indoor and outdoor
> Our products have passed CE, FCC, ROHS certification!

Product Specification

Physical characteristic Standard color Black
Material Aluminium alloy shell
Transparency ≥92%
USB connector cable 1500mm
Minimum touch object ≥4mm
Input method Finger,gloved hand,or opaque object
Resolution 32768*32768
Electrical characteristic Scan frequency 60Hz
Interface type USB2.0
Output format Coordinate output
Response time 7-15ms
Touch accuracy 1mm
Working voltage DC +5V+/-5%
Power supply USB
Operation current <180mA
Environmental suitability Working temperature -20℃~65℃
Storage temperature -40℃~85℃
Working humidity 0~85% RH,non-condensing
Storage humidity 0~95% RH,non-condensing
Light immunity Anti-glare
Raliability Touch times unlimited
Flammability UL94V-0
Certification CE,FCC,ROHS
Software characteristic Windows 2000/Windows XP/Win 7/ Win 8/10/Windows NT/Linux/Android































Product Application


42 inch infrared touch Frame overlay kits ir touch frame sensor 0


42 inch infrared touch Frame overlay kits ir touch frame sensor 1





Packing and Delivery

42 inch infrared touch Frame overlay kits ir touch frame sensor 2



1 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Screen,Interactive Whiteboard,Infrared PCBA Module


2 who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Western Europe(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.

3 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.


4 how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

5 what services can we provide?
Accepted Delivery Terms: FOB,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
