TV 8ms 15 Touch Screen Overlay Aluminium alloy With Glass

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO9001, ce, FCC, EMC, LVD
Model Number: XT-15
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000/ months
Size: 15 Inch Touch Point: 10 Points
Warranty: 1 Year Products Status: New
Brand Name: YCL TOUCH Product Name: Infrared Touch Screen Panel
Other Name: IR Touch Frame
High Light:

8ms 15 Touch Screen Overlay


15 Touch Screen Overlay Aluminium Alloy


15 inch IR Infrared Multi Rouch Frame Screen Penal whit glass

infrared touch screen 15 inch multi ir touch frame,ir touch panel overlays with 10 points

Description for XT series infrared touch frame :


15 inch Infrared Touch Frame with 10 points

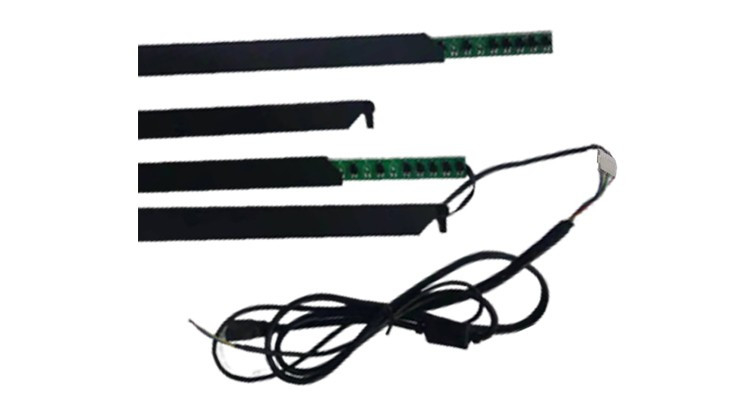

TV 8ms 15 Touch Screen Overlay Aluminium alloy With Glass 0
Product Description
Touch Screen Size
Touch Points
10 touch points
Minimum Recognition Point Size
Supporting resolution
Touch Response Time(Multi touch)
Touch Response Time(One touch)
Input method
Any opaque touches, such as fingers, brushes, etc.
4 or 9 points calibration
Number of clicks
Infinite times
Touch pressure
No pressure requirement
Interface type
1.5 m USB cable receptacle, the receptacle 5P
Line length
Frame Material
Aluminium alloy
Glass Material
Toughened glass
 communication interface
USB 2.0
Scanning frequency
 Easy installation, strong compatibility
Power supply mode
USB 5.0V
Working Voltage and Current
4.75~5.25V , ≤200mA
Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range
Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃
Anti-light Interference
EN 6100-4-2 2008:3 level.4KV contact discharge and

8KV air discharge
 LED Lifetime
 Able to work if less than

10% non-consecutive sensors are damaged
 Support OS (One touch)
Support OS(Multi touch)
 Firmware Upgrade
 USB Upgrade: Windows 8,Windows 7




Infrared touch screen Features:

1 Draw smooth&accurate curves, no blind area, breakpoints, jump points, pause and other undesirable phenomena.


USB interface, Intelligent automatic calibration, drive-free and maintenance-free.


3 Aluminum alloy shell with strong stability, fast response(less than 10ms)


Draw smooth&accurate curves, no blind area, breakpoints, jump points, pause and other undesirable phenomena.

Without driver, supporting plug and play.


6 Light-resistant design, can be suitable for internal and external linked environment, widely used to financial telecom service,advertisement

   show, industrial control, public query, self-service, E-education, and games etc.


Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.


Infrared Touch Application Scene

1. education
2. Medical industry
3. Finance
4. Exhibition
5. Industrial control
6. Man-machine interaction
7. TV
8. PC
9. And more



Our Company

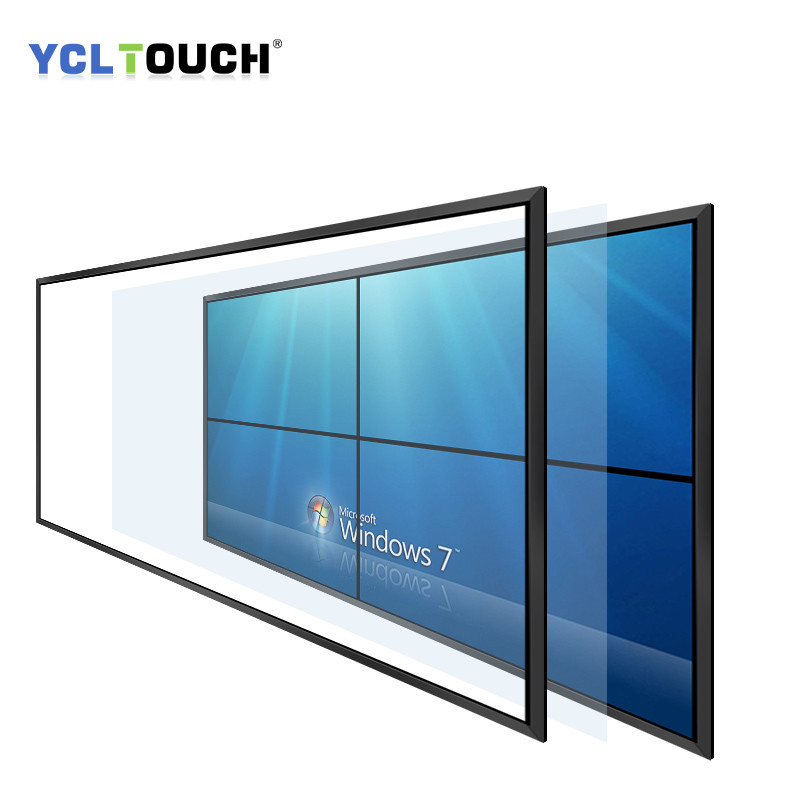

TV 8ms 15 Touch Screen Overlay Aluminium alloy With Glass 1


Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

Shenzhen Yongchuangli Electronic Technology Co., a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.

Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.

Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!

The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.



Key Specifications/Special Features:

15-inch IR touch frame/infrared touch frame/touch panel/infrared touch overlay
Key specifications/special features:
15-98-inch IR infrared touchscreen frame panel overlay 10/20/40/64 touch points
