FCC IR Touch Screen Frame 58 Inch Multi Touch Infrared Touch Frame

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO 9001:2000, ce, EMC, LVD
Model Number: LV-58
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Size: 58 Inch Integral Computers Limited: 32768*32768
Style: Any Platform Material: Aluminum
Installation: Plug And Play Warranty: 12 Months
High Light:

IR Touch Screen Frame 58 Inch


FCC IR Touch Screen Frame


FCC 58 Inch Touch Screen

IR Touch Screen Frame 58 Inch Multi Touch Infrared Touch Frame


Infrared/ IR Touch Frame

A matrix of Infrared (IR) LEDs and photo diodes are used to create a two dimensional grid over the display to detect where infrared light is blocked and thus where touchpoints are. YCLTOUCH' s available in both standard and custom industrial infrared touch screen sizes, YCLTOUCH’s projected custom infrared touch screen forms, fit or function replacements for 3M™ and Elo™ touch sensors.


IR Touch Frame Technology

IR touch screen frame technology may not be new, but it remains a favorite. It tends to be employed in large-format displays and some kiosks and point-of-sale (POS) terminals. The custom touch screen display has a long life, furthering its popularity in the digital signage and interactive display markets.


How IR touch frame Red Works:

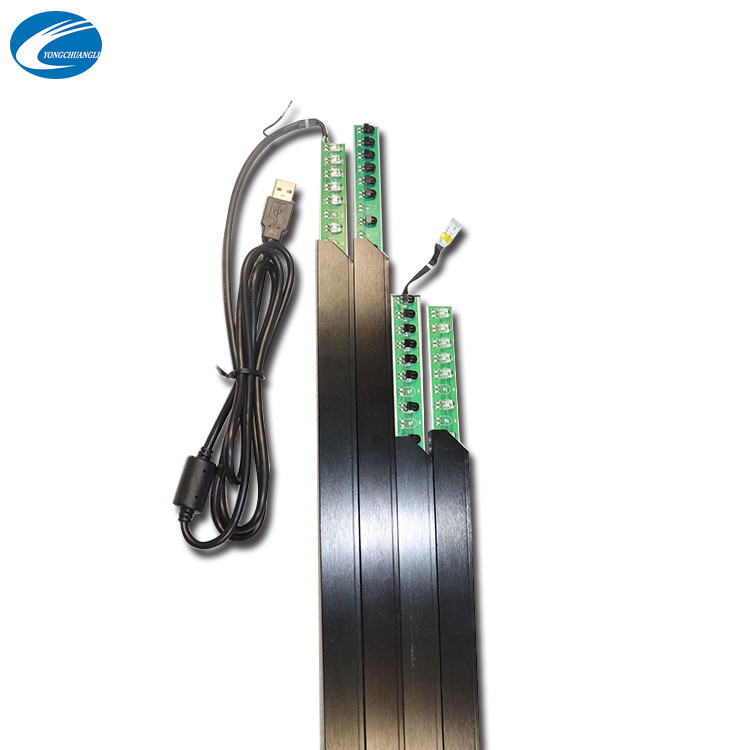

Infrared touch technology requires a perimeter to be placed around the infrared touch screen. The perimeter consists of infrared LEDs placed on two sides of the IR touch frame and phototransistors placed on the opposing two sides. The two sides then work in pairs; the signal from the LED transistor is read by its opposing phototransistor. When that signal is interrupted, it indicates a blocked infrared beam, which, in turn, indicates a touch point. While most infrared custom touch screen display doesn’t require a touchscreen, a glass overlay usually is recommended in order to protect the underlying display.

FCC IR Touch Screen Frame 58 Inch Multi Touch Infrared Touch Frame 0

IR touch frame features

1  Better performance for big infrared touch screen. Have good support on equipments sizes from 32” to 84”.


2  No restriction of touch medium No touch pressure required. Except for transparent medium, PIT supports all other touch mediums. Custom touch screen display with no touch pressure required.


3  High image clarity. No transducers on the surface of the IR touch frame, keep the image details maximumly.


4  Excellent protection performance. Protection performance enhancements are optional: Waterproof, Anti-vandal.




Ratio: 16:9

Number of Touch Points: 20

Minimum Touch Object: 4mm

Touch Activation Force: No minimum touch pressure required

Touch Durability: Unlimited

Driver Free: HID compatible, up to 20 touch points

Linearity Deviation: ±1mm

Fault Tolerance: Workable even 75% sensors are damaged

Frames per Second: Up to 50 fps

Typical Response Time: -10ms

Light Transmission: 100% without glass

Operating Systems: Windows7,Windows8,Windows10,MacOS,Linux,Android

Protocols: HID,TUIO,Flash


Operating Temperature: -0°C to 70°C

Storage Temperature: -0°C to 85°C

Operating Humidity: 10% to 90%RH(Non-condensing)

Storage Humidity: 10% to 90%RH

Certification: FCC,CE,ROHS

Warranty: 1 year


FCC IR Touch Screen Frame 58 Inch Multi Touch Infrared Touch Frame 1


FCC IR Touch Screen Frame 58 Inch Multi Touch Infrared Touch Frame 2 FCC IR Touch Screen Frame 58 Inch Multi Touch Infrared Touch Frame 3



FCC IR Touch Screen Frame 58 Inch Multi Touch Infrared Touch Frame 4


Transportation and Payment

FCC IR Touch Screen Frame 58 Inch Multi Touch Infrared Touch Frame 5


FCC IR Touch Screen Frame 58 Inch Multi Touch Infrared Touch Frame 6


Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.

Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.

Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!

The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.

1 who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.

2 how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA

4 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.

5 what services can we provide?
Accepted Delivery Terms: FOB,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
