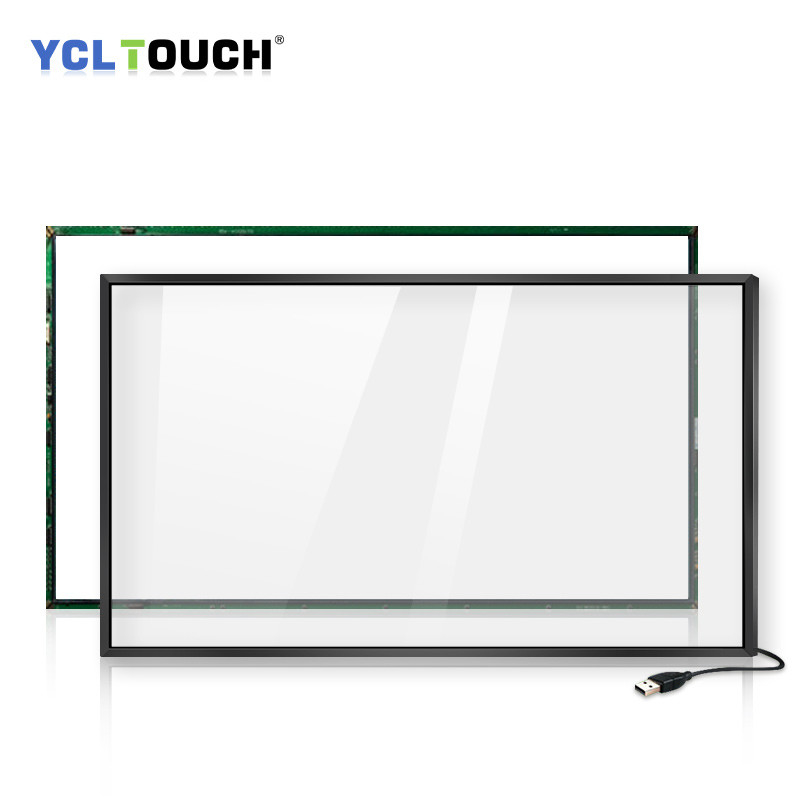

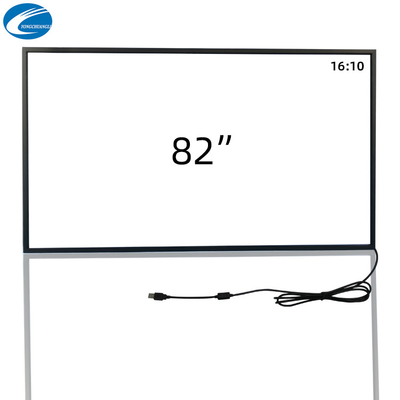

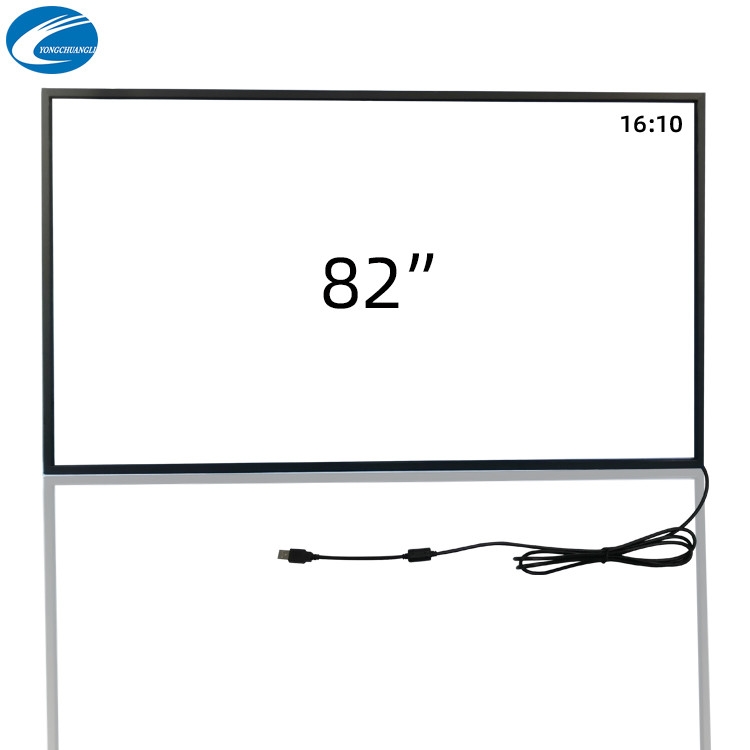

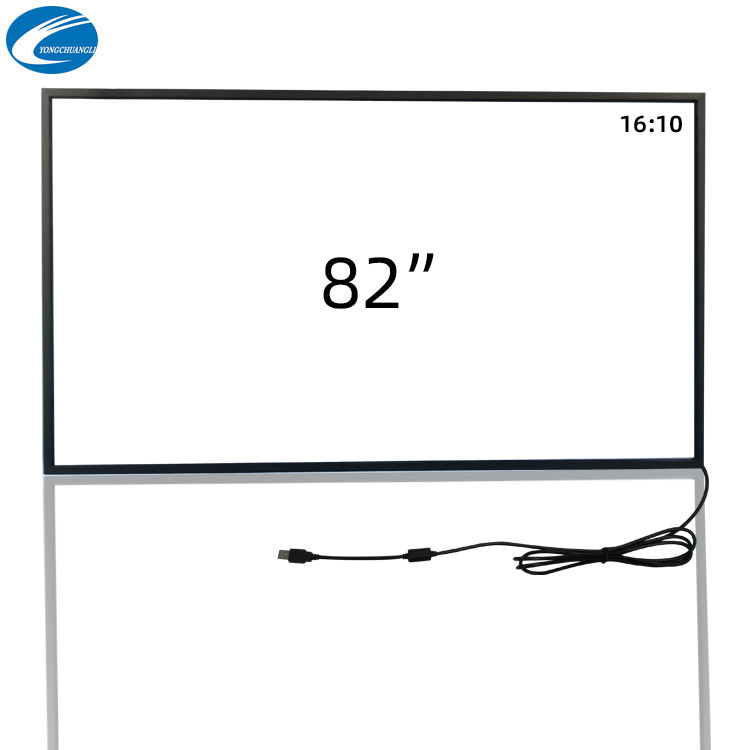

Customized 82 Inch IR Touch Screen Frame USB Interface 20 Points

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO 9001:2000, ce, EMC, LVD
Model Number: LV-82
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Size: 82 Inch Color: Black
Brand Name: YCLTOUCH Material: Aluminum
Interface: USB Touch Points: 20 Points
Style: Any Platform Certification: RoHS, Ce, FCC, EMC, LVD
High Light:

IR Touch Screen Frame USB Interface


IR Touch Screen Frame 20 Points


82 Inch Touch Screen 20 Points

82 inch aluminum alloy frame infrared ir multi touch customized screen frame


YCL Touch IR touch screen is a high-end multi-point infrared touch screen technology with perfect combination of tradition and innovation. Our touch screen has the features of fast reaction speed, strong anti-environment light ability, good stability and easy integration; With the function of plug and play and without driver, any non-transparent object can change the infrared light and realize the touch operation which is convenient for people to operate and use the digital life and brings the greatest convenience and interactivity to life.



How Does Infrared Touchscreen Work?


The infrared touchscreen works by detecting interruptions of infrared beams emitted by LEDs embedded in the frame around the touchscreen overlay.

There are two rows of IR LEDs, which generate horizontal and vertical invisible IR beams. They form a large beam grid that covers the surface of the overlay. In the meantime, two rows of photoreceptors are installed on the opposite side of the LEDs.

As long as an opaque object touches the surface, it will blot out the light beams. Photoreceptors in both directions (vertical and horizontal) can detect this interruption by that object, and finally localize the x and y coordinates, and then send the signal to the processor to respond with relevant action.


Customized 82 Inch IR Touch Screen Frame USB Interface 20 Points 0



Customized 82 Inch IR Touch Screen Frame USB Interface 20 Points 1




1 Ultra-thin and ultra-narrow frame, aluminium alloy shell
2 High touch accuracy and smooth writing
3 Driver-free support for multiple operating systems.
4 Long service life, maintenance-free.
5 Toughened glass material, with high transmittance, strong stability.
6 Strong anti-jamming ability, anti-static performance of industrial ESD.
7 Response speed (less than 10 milliseconds), sensor discontinuous damage 10%, can still work.
8 No special touch tools are needed, just opaque objects




Ratio: 16:9

Number of Touch Points: 20

Minimum Touch Object: 4mm

Touch Activation Force: No minimum touch pressure required

Touch Durability: Unlimited

Driver Free: HID compatible, up to 20 touch points

Linearity Deviation: ±1mm

Frames per Second: Up to 50 fps

Fault Tolerance: Workable even 75% sensors are damaged

Typical Response Time: -10ms

Operating Systems: Windows7,Windows8,Windows10,MacOS,Linux,Android

Light Transmission: 100% without glass

Protocols: HID,TUIO,Flash


Operating Temperature: -0°C to 70°C

Storage Temperature: -0°C to 85°C

Operating Humidity: 10% to 90%RH(Non-condensing)

Storage Humidity: 10% to 90%RH

Certification: FCC,CE,ROHS

Warranty: 1 year


  • Gaming / casino systems
  • Outdoor and indoor kiosks
  • Entertainment
  • Transport and ticketing
  • Hospitality
  • Banking
  • Сustomized solutions

Primary Competitive Advantages:

  • Prompt Delivery
  • Quality Approvals
  • Reputation
  • Service
  • Small Orders Accepted
  • Green Product
  • Guarantee/Warranty
  • International Approvals
  • Military Specifications
  • Packaging
  • Price
  • Product Features
  • Product Performance
  • Waterproof IP65
  • Anti-corrosion
  • Warranty:1 Years

Customized 82 Inch IR Touch Screen Frame USB Interface 20 Points 2


Customized 82 Inch IR Touch Screen Frame USB Interface 20 Points 3 Customized 82 Inch IR Touch Screen Frame USB Interface 20 Points 4



Customized 82 Inch IR Touch Screen Frame USB Interface 20 Points 5


Transportation and Payment

Customized 82 Inch IR Touch Screen Frame USB Interface 20 Points 6


Customized 82 Inch IR Touch Screen Frame USB Interface 20 Points 7


Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

Shenzhen Yongchuangli Electronic Technology Co., a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.

Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.

Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!

The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.
