75 Multi Point Large USB IR Touch Frame Infrared Touch Screen Panel ROHS

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO 9001:2000, ce, EMC, LVD
Model Number: LV-75
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Size: 75 Inch Color: Black
Package: Yes Name: IR Multi Touch Frame
Touch Type: Finger Touch Operating System: XP Win7 8 Android Linux
Interface: USB 2.0(full-speed) Glass: 3mm Glass Or Glass
High Light:

75 USB IR Touch Frame


Large USB IR Touch Frame


Infrared Touch Screen Panel ROHS

75 multi point large USB IR touch frame infrared Touch Screen wall overlay panel


YCL Touch IR touch screen is a high-end multi-point infrared touch screen technology with perfect combination of tradition and innovation. Our touch screen has the features of fast reaction speed, strong anti-environment light ability, good stability and easy integration; With the function of plug and play and without driver, any non-transparent object can change the infrared light and realize the touch operation which is convenient for people to operate and use the digital life and brings the greatest convenience and interactivity to life.

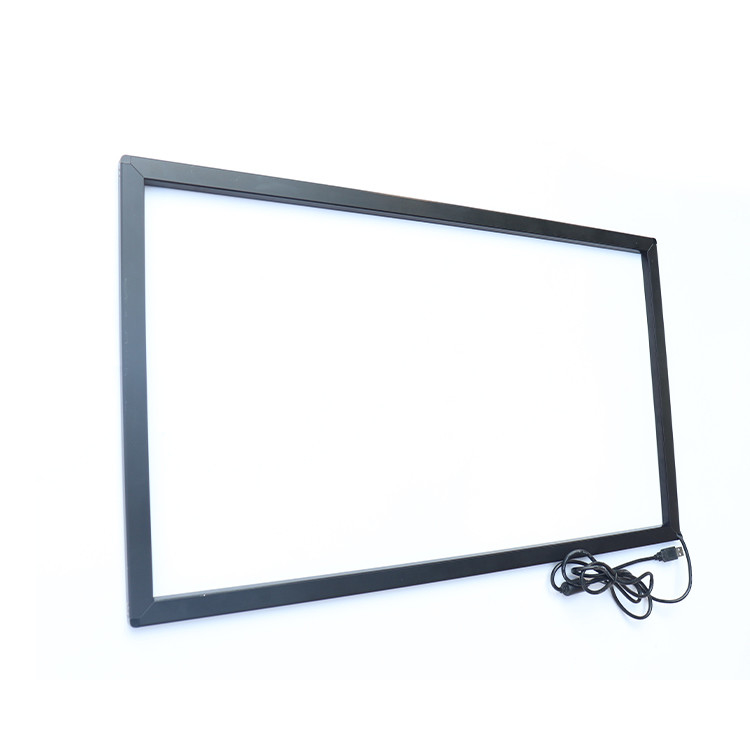

75 Multi Point Large USB IR Touch Frame Infrared Touch Screen Panel ROHS 0

Infrared/ IR Touch Frame

A matrix of Infrared (IR) LEDs and photo diodes are used to create a two dimensional grid over the display to detect where infrared light is blocked and thus where touchpoints are. YCLTOUCH' s available in both standard and custom industrial infrared touch screen sizes, YCLTOUCH’s projected custom infrared touch screen forms, fit or function replacements for 3M™ and Elo™ touch sensors.


IR Touch Frame Technology

IR touch screen frame technology may not be new, but it remains a favorite. It tends to be employed in large-format displays and some kiosks and point-of-sale (POS) terminals. The custom touch screen display has a long life, furthering its popularity in the digital signage and interactive display markets.


How IR touch frame Red Works:

Infrared touch technology requires a perimeter to be placed around the infrared touch screen. The perimeter consists of infrared LEDs placed on two sides of the IR touch frame and phototransistors placed on the opposing two sides. The two sides then work in pairs; the signal from the LED transistor is read by its opposing phototransistor. When that signal is interrupted, it indicates a blocked infrared beam, which, in turn, indicates a touch point. While most infrared custom touch screen display doesn’t require a touchscreen, a glass overlay usually is recommended in order to protect the underlying display.

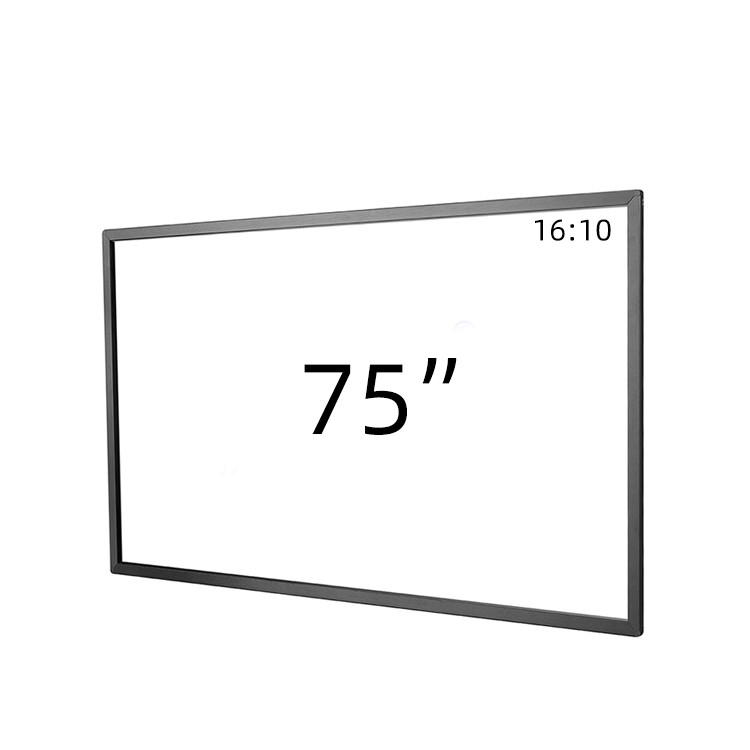

75 Multi Point Large USB IR Touch Frame Infrared Touch Screen Panel ROHS 1



Infrared touch screen Features:

1 Anti-light, sunshine from any angle does not affect touch control

2 True 10-point touch, touch experience is not affected by object occlusion

3 Strong anti-jamming ability, anti-static performance of industrial ESD

4 Hardware design of industrial control level, working normally at -15℃~55℃

5 Strong compatibility, drive-free support for multiple operating systems

6 Provide self-developed touch screen configuration software and remote assistance tools

7 Support gesture function, customize output protocol, interface and application development

8 Response fast, sensor discontinuous damage 10%, can still work

9 The size can be customized





Ratio: 16:9

Number of Touch Points: 20

Minimum Touch Object: 4mm

Touch Activation Force: No minimum touch pressure required

Touch Durability: Unlimited

Driver Free: HID compatible, up to 20 touch points

Linearity Deviation: ±1mm

Frames per Second: Up to 50 fps

Fault Tolerance: Workable even 75% sensors are damaged

Typical Response Time: -10ms

Operating Systems: Windows7,Windows8,Windows10,MacOS,Linux,Android

Light Transmission: 100% without glass

Protocols: HID,TUIO,Flash


Operating Temperature: -0°C to 70°C

Storage Temperature: -0°C to 85°C

Operating Humidity: 10% to 90%RH(Non-condensing)

Storage Humidity: 10% to 90%RH

Certification: FCC,CE,ROHS

Warranty: 1 year

Primary Competitive Advantages:

  • Prompt Delivery
  • Quality Approvals
  • Reputation
  • Service
  • Small Orders Accepted
  • Green Product
  • Guarantee/Warranty
  • International Approvals
  • Military Specifications
  • Packaging
  • Price
  • Product Features
  • Product Performance
  • Waterproof IP65
  • Anti-corrosion
  • Warranty: 1 Years



  • Gaming / casino systems
  • Outdoor and indoor kiosks
  • Entertainment
  • Transport and ticketing
  • Hospitality
  • Banking
  • Сustomized solutions

Main Export Markets:

  • Eastern Europe
  • Mid East/Africa
  • North America
  • Western Europe
  • Asia
  • Australasia
  • Central/South America
  • The US

75 Multi Point Large USB IR Touch Frame Infrared Touch Screen Panel ROHS 2


75 Multi Point Large USB IR Touch Frame Infrared Touch Screen Panel ROHS 3 75 Multi Point Large USB IR Touch Frame Infrared Touch Screen Panel ROHS 4



75 Multi Point Large USB IR Touch Frame Infrared Touch Screen Panel ROHS 5


Transportation and Payment

75 Multi Point Large USB IR Touch Frame Infrared Touch Screen Panel ROHS 6


75 Multi Point Large USB IR Touch Frame Infrared Touch Screen Panel ROHS 7


Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.

Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.

Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!

The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.



Customer Satisfaction

Our unwavering commitment towards offering the clients with premium products has helped us achieve high client satisfaction. With the support of our experienced professionals and vendors, we are able to deliver products within the promised time-frame.


1 who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.

2 how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA

4 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.

5 what services can we provide?
Accepted Delivery Terms: FOB,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
