Multi IR Touch Screen Frame Overlay 85 Inch IR Touch Frame Kit

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO 9001:2000, ce, EMC, LVD
Model Number: LV-85
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Size: 85 Inch After-sales Service: Call Center And On-line Technical Support, Return And Replacem
Type: Infrared, Tablet PC Application: Interactive,Teaching ,Conference,Business
Shipping Ways: UPS.FEDEX.DHL Aspect Ratio: 16:10
Support Systems: Windows Xp/7/8/Android/ MacOS/Liunx Selling Units: Selling Units
High Light:

Multi IR Touch Screen Frame Overlay


IR Touch Screen Frame Overlay 85 Inch


85 Inch IR Touch Frame Kit

Multi ir touch screen frame overlay 85 inch ir touch frame kit


YCL Touch IR touch screen is a high-end multi-point infrared touch screen technology with perfect combination of tradition and innovation. Our touch screen has the features of fast reaction speed, strong anti-environment light ability, good stability and easy integration; With the function of plug and play and without driver, any non-transparent object can change the infrared light and realize the touch operation which is convenient for people to operate and use the digital life and brings the greatest convenience and interactivity to life.




1 Ultra-thin and ultra-narrow frame, aluminium alloy shell
2 High touch accuracy and smooth writing
3 Driver-free support for multiple operating systems.
4 Long service life, maintenance-free.
5 Toughened glass material, with high transmittance, strong stability.
6 Strong anti-jamming ability, anti-static performance of industrial ESD.
7 Response speed (less than 10 milliseconds), sensor discontinuous damage 10%, can still work.
8 No special touch tools are needed, just opaque objects


Multi IR Touch Screen Frame Overlay 85 Inch IR Touch Frame Kit 0

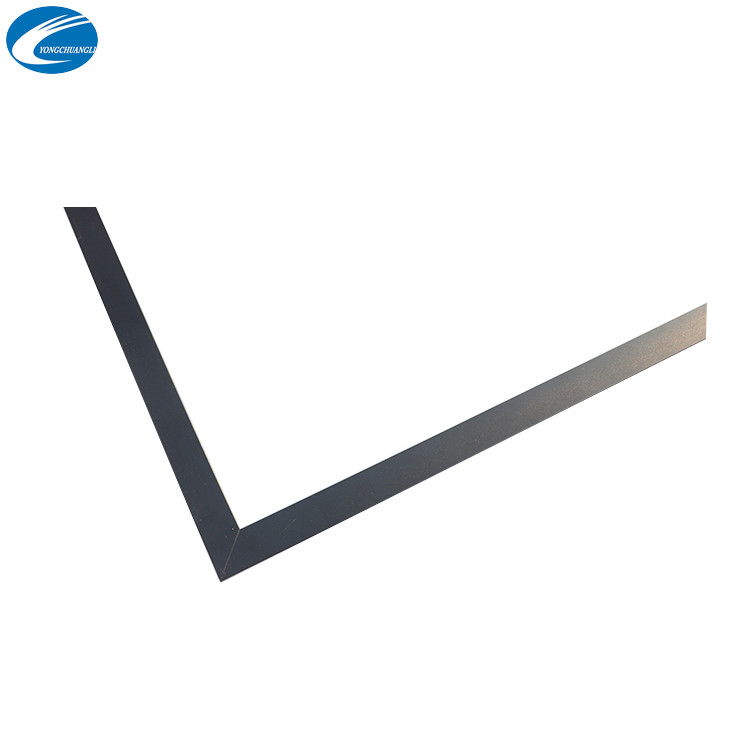

Multi IR Touch Screen Frame Overlay 85 Inch IR Touch Frame Kit 1


Infrared touch screen Features:


1 Anti-light, sunshine from any angle does not affect touch control

2 True 10-point touch, touch experience is not affected by object occlusion

3 Strong anti-jamming ability, anti-static performance of industrial ESD

4 Hardware design of industrial control level, working normally at 15℃~55℃

5 Strong compatibility, drive-free support for multiple operating systems

6 Provide self-developed touch screen configuration software and remote assistance tools

7 Support gesture function, customize output protocol, interface and application development

8 Response fast, sensor discontinuous damage 10%, can still work

9 The size can be customized


Infrared/ IR Touch Frame

A matrix of Infrared (IR) LEDs and photo diodes are used to create a two dimensional grid over the display to detect where infrared light is blocked and thus where touchpoints are. YCLTOUCH' s available in both standard and custom industrial infrared touch screen sizes, YCLTOUCH’s projected custom infrared touch screen forms, fit or function replacements for 3M™ and Elo™ touch sensors.


IR Touch Frame Technology

IR touch screen frame technology may not be new, but it remains a favorite. It tends to be employed in large-format displays and some kiosks and point-of-sale (POS) terminals. The custom touch screen display has a long life, furthering its popularity in the digital signage and interactive display markets.



How Does Infrared Touchscreen Work?

The infrared touchscreen works by detecting interruptions of infrared beams emitted by LEDs embedded in the frame around the touchscreen overlay.

There are two rows of IR LEDs, which generate horizontal and vertical invisible IR beams. They form a large beam grid that covers the surface of the overlay. In the meantime, two rows of photoreceptors are installed on the opposite side of the LEDs.

As long as an opaque object touches the surface, it will blot out the light beams. Photoreceptors in both directions (vertical and horizontal) can detect this interruption by that object, and finally localize the x and y coordinates, and then send the signal to the processor to respond with relevant action.



Product Description
Quick Details
Products Status:
Screen Size:
Interface Type:
Brand Name:
YCL Touch
Place of Origin:
Guangdong, China
IR Technology
Input Method:
Any opaque object
Touch Times:
Infinite time
Zoom in and out,Light protection,durable,Click,Draw
Response time:
Touch points:
20 points
12 months
Interactive,Teaching ,Conference,Business
Operating System:
Plug and Play
3mm glass or glass
Aluminium alloy with black surface treatm


  • Gaming / casino systems
  • Outdoor and indoor kiosks
  • Entertainment
  • Transport and ticketing
  • Hospitality
  • Banking
  • Сustomized solutions

Primary Competitive Advantages:

  • Prompt Delivery
  • Quality Approvals
  • Reputation
  • Service
  • Small Orders Accepted
  • Green Product
  • Guarantee/Warranty
  • International Approvals
  • Military Specifications
  • Packaging
  • Price
  • Product Features
  • Product Performance
  • Waterproof IP65
  • Anti-corrosion
  • Warranty:1 Years

Multi IR Touch Screen Frame Overlay 85 Inch IR Touch Frame Kit 2


Multi IR Touch Screen Frame Overlay 85 Inch IR Touch Frame Kit 3 Multi IR Touch Screen Frame Overlay 85 Inch IR Touch Frame Kit 4



Multi IR Touch Screen Frame Overlay 85 Inch IR Touch Frame Kit 5


Transportation and Payment

Multi IR Touch Screen Frame Overlay 85 Inch IR Touch Frame Kit 6


Multi IR Touch Screen Frame Overlay 85 Inch IR Touch Frame Kit 7


Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

Shenzhen Yongchuangli Electronic Technology Co., a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.

Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.

Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!

The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.

1 who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.

2 how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA

4 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.
