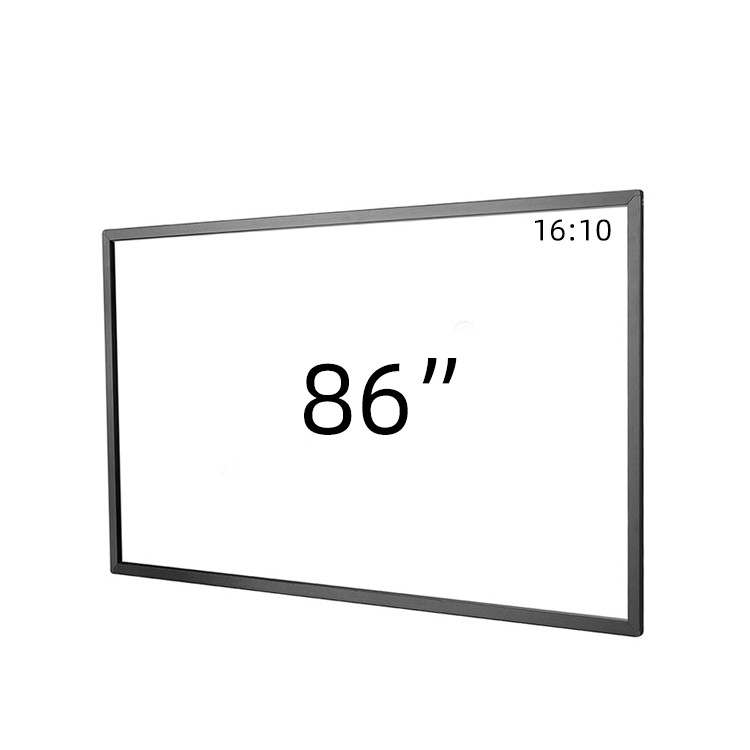

86 Inch IR Touch Screen Frame,
IR Touch Screen Frame Multi Point,
86 Inch Touch Screen Multi Points

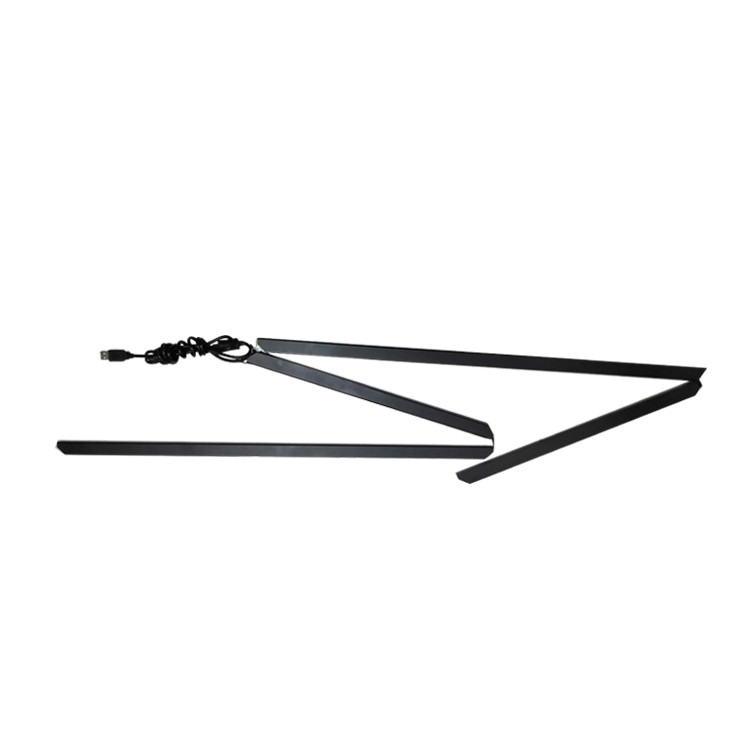

Multi ir touch screen frame overlay 85 inch ir touch frame kit
YCL Touch IR touch screen is a high-end multi-point infrared touch screen technology with perfect combination of tradition and innovation. Our touch screen has the features of fast reaction speed, strong anti-environment light ability, good stability and easy integration; With the function of plug and play and without driver, any non-transparent object can change the infrared light and realize the touch operation which is convenient for people to operate and use the digital life and brings the greatest convenience and interactivity to life.
1 Ultra-thin and ultra-narrow frame, aluminium alloy shell
2 High touch accuracy and smooth writing
3 Driver-free support for multiple operating systems.
4 Long service life, maintenance-free.
5 Toughened glass material, with high transmittance, strong stability.
6 Strong anti-jamming ability, anti-static performance of industrial ESD.
7 Response speed (less than 10 milliseconds), sensor discontinuous damage 10%, can still work.
8 No special touch tools are needed, just opaque objects
1 Anti-light, sunshine from any angle does not affect touch control
2 True 10-point touch, touch experience is not affected by object occlusion
3 Strong anti-jamming ability, anti-static performance of industrial ESD
4 Hardware design of industrial control level, working normally at －15℃~55℃
5 Strong compatibility, drive-free support for multiple operating systems
6 Provide self-developed touch screen configuration software and remote assistance tools
7 Support gesture function, customize output protocol, interface and application development
8 Response fast, sensor discontinuous damage 10%, can still work
9 The size can be customized
Infrared/ IR Touch Frame
A matrix of Infrared (IR) LEDs and photo diodes are used to create a two dimensional grid over the display to detect where infrared light is blocked and thus where touchpoints are. YCLTOUCH' s available in both standard and custom industrial infrared touch screen sizes, YCLTOUCH’s projected custom infrared touch screen forms, fit or function replacements for 3M™ and Elo™ touch sensors.
IR Touch Frame Technology
IR touch screen frame technology may not be new, but it remains a favorite. It tends to be employed in large-format displays and some kiosks and point-of-sale (POS) terminals. The custom touch screen display has a long life, furthering its popularity in the digital signage and interactive display markets.
How IR touch frame Red Works:
Infrared touch technology requires a perimeter to be placed around the infrared touch screen. The perimeter consists of infrared LEDs placed on two sides of the IR touch frame and phototransistors placed on the opposing two sides. The two sides then work in pairs; the signal from the LED transistor is read by its opposing phototransistor. When that signal is interrupted, it indicates a blocked infrared beam, which, in turn, indicates a touch point. While most infrared custom touch screen display doesn’t require a touchscreen, a glass overlay usually is recommended in order to protect the underlying display.
