17 Inch Infrared Multi Touch Screen Kit Ten Points For KIOSK ATM

Basic Information

Place of Origin:	China
Brand Name:	YCLTouch
Certification:	RoHS, ISO9001, ce, FCC, EMC, LVD
Model Number:	YCL-K15

Minimum Order Quantity:	1
Price:	USD25-USD35 per pcs
Packaging Details:	SKD export cartons or plastic pipe, or export carton for the IR touch frame touch screens
Delivery Time:	3-7 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20000 pcs per month

Contact Now

Product Name:

IR Touch Screen

Series:

For Business

Support Systems:

Windows Xp/7/8/Android/ MacOS/Liunx

Material:

Aluminum Alloy

Touch Points:

Ten Points

Interface Type:

Usb

High Light:

17 Inch Touch Screen Overlay

ATM Infrared Multi Touch Screen

17 Inch IR Touch Screen Overlay Infrared Multi Touch Screen Kit For KIOSK ATM

Basic Specification
Product Name	15 inch infrared touch screen	Model number	YCL-K15
Resolution	32767x32767	Glass	Temper type with 3mm
Response Time	<10ms	Touch Accuracy	+/-2mm(Over 95% area)
Touch Input Objects	Fingers,opague objects	Touch Durability	Unlimited
Bezel Material	Aluminium alloy	Interface	USB2.0 full speed
Electrical Specification
Scan Rate	More than 100Hz/s	Communication	USB2.0
Transmission Rate	480Mbps	Power Supply Mode	USB 5V DC
Supply Voltage	From 4.75 to 5.25V	Operating Voltage	Equal to or less than 200MA
Environment Specification
Working /StockTemperature	-15℃~55℃ ,-40℃~75℃	Working Hudimity	10%~90%RH,no condense
Stock Humidity	10%~90%RH,no condense	Anti Light Ability	<80000Lux
Static Electricity	Equal to grade EN 6100-4-2 2008:3, touching type powerrelease 4KV,air type power release 8KV(Install to display to test)
Software Compatibility
Firmware Upgrade	Available	OS Compatibility	Win7/Win8/Win10,Android/Linux/Mac
API(software interface)	able to provide motive links datasheet,DIY API interface is available
Reliability And Durability Data Sheet
High Temperature Stock		100℃ for 20 hours,normal temperature for 2 hours
Low Temperature Stock		-40℃ for 20 hours,normal temperature for 2 hours
USB Plug In And Out Test		More than 2000 times
High/Low Circle Working		80℃ for 48 hours,-10℃ for 12 hours
High Humidity Working		80℃ for 20 hours with 85%

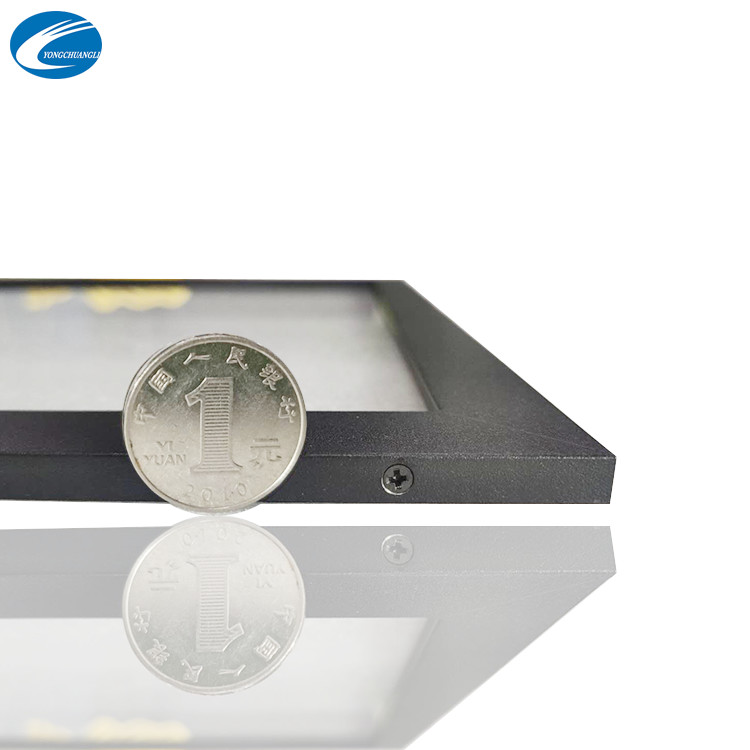

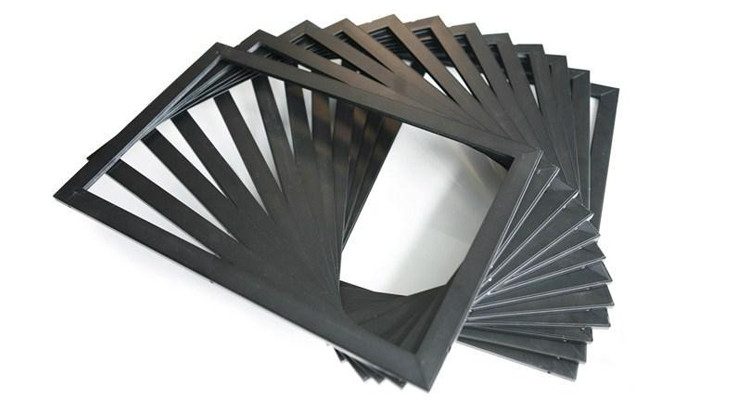

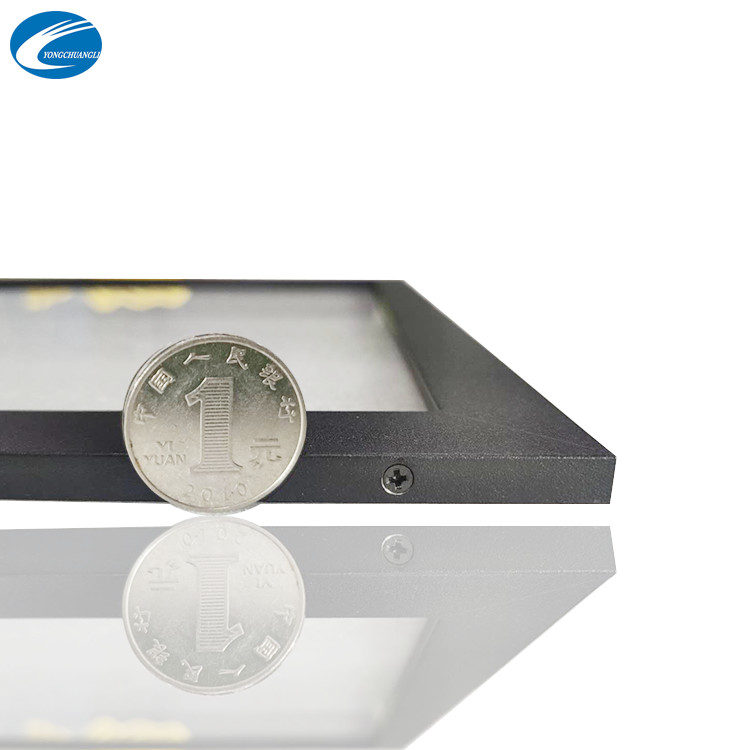

17 Inch Infrared Multi Touch Screen Kit Ten Points For KIOSK ATM 0
