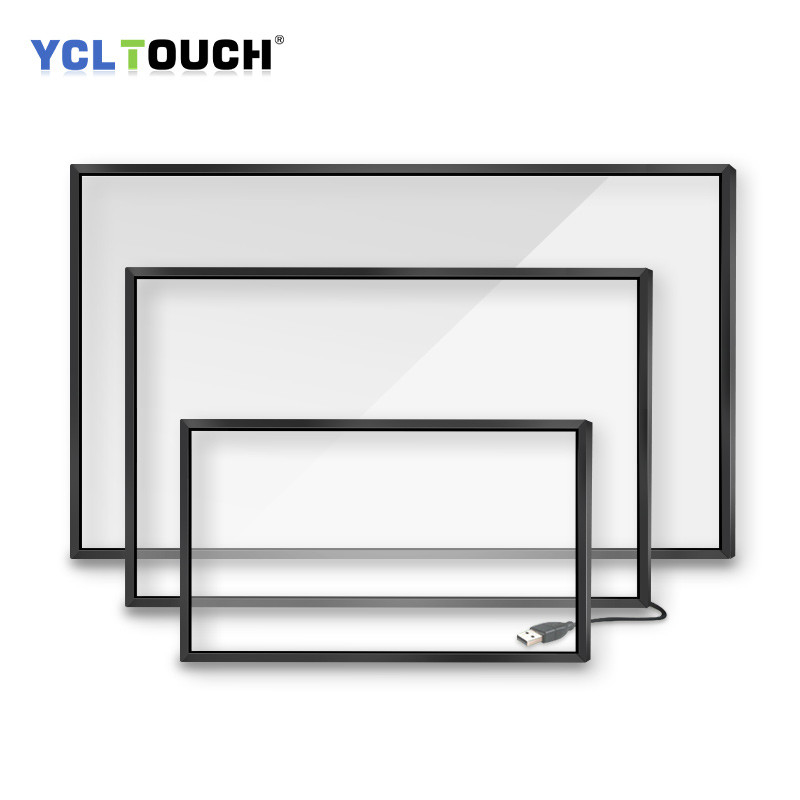

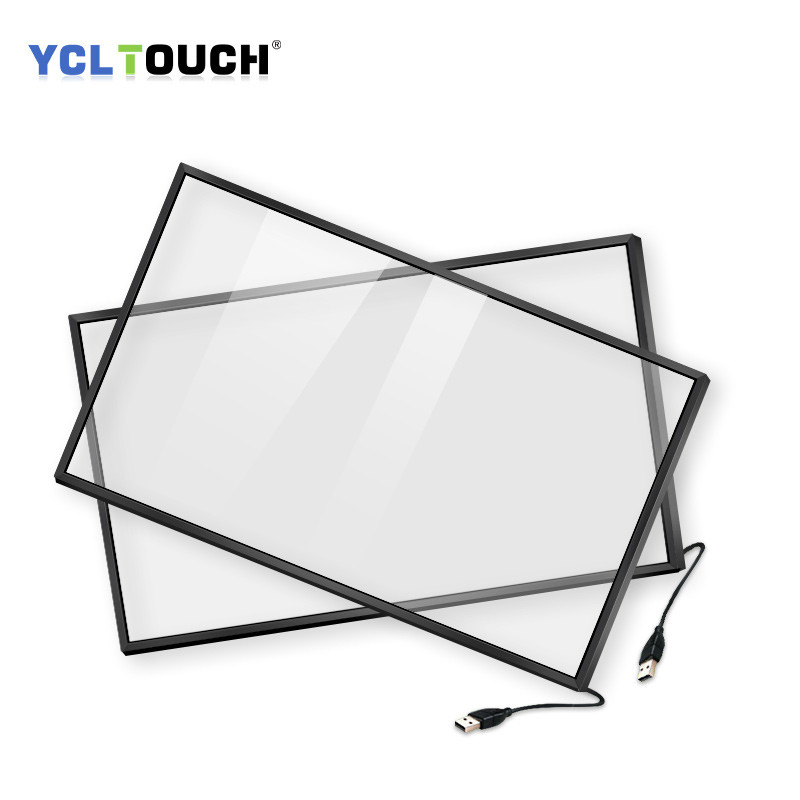

43" Multi IR Touch Screen Frame Overlay 20 Points 7ms 60000hours LED Lifetime

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO 9001:2000, ce, EMC, LVD
Model Number: LV-43
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Size: 43 Inch Response Time(One Touch): 7ms
Response Time(Multi Touch): 10-15ms Minimum Recognition Point Size: 4mm*4mm
LED Lifetime: 60000hours Working Hudimity: 10%~90%RH,no Condense
High Light:

Multi IR Touch Screen Frame


43" IR Touch Screen Frame


20 Point Touch Screen 7ms

Touch 43" multi IR touch screen overlay 20 points Infrared touch frame


What is a IR Touch Screen?

YCLTouch IR Touch Frame / Screen is a high-precision IR (Infrared) Multi-touch Screen. with interpolation resolution up to

32768*32768 and can be applied in 7''-500'' display.Any nontransparent substance can be detected and located in the screen. IR
Multi-touch Screen has many advantages such as high precision, fast response, excellent glare-resistive ability and faulty
tolerance, with one time factory calibration.




Specification of Infrared Touch Screen
Touch Screen Size 43"
Touch Points 20-point touch
Minimum Recognition Point Size 4mm*4mm
Supporting resolution 32768×32768
Touch Response Time(Multi touch) 10-15ms
Touch Response Time(One touch) 7ms
Input method Any opaque touches, such as fingers, brushes, etc.
Calibration 4-point calibration
Number of clicks nfinite times
Touch pressure No pressure requirement
Line length 1.5m
Interface type 1.5 m USB cable receptacle, the receptacle 5P
Frame Material Aluminium alloy
Glass Material Toughened glass
Characteristic Easy installation, strong compatibility
Scanning frequency >110Hz
communication interface USB 2.0
Power supply mode USB 5.0V
Working Voltage and Current 4.75~5.25V , ≤200mA
Humidity Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃
LED Lifetime 60000hours
Fault-tolerant Able to work if less than10% non-consecutive sensors are damaged
ESD EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge
Anti-light Interference Excellent
Firmware Upgrade USB Upgrade: Windows 8,Windows 7
Support OS(Multi touch) Windows10,Windows8,Windows7,Andriod
Support OS (One touch) WindowsXP,MacOS.Linux



Advantages of our Infrared IR Touch Frame:

High Reliablity IR Touch Frames Series

Multi-touch 20 points

High Compatibility of hardware & Software

Support Operation System Xp/Win7/Win8/Win10/Linux/Android

Perfect Anti-Sun IR Touch Screen Series



Reliability And Durability Data Sheet

High Temperature Stock: 100℃ for 20 hours,normal temperature for 2 hours
Low Temperature Stock: -40℃ for 20 hours,normal temperature for 2 hours
USB Plug In And Out Test: More than 2000 times
High/Low Circle Working: 80℃ for 48 hours,-10℃ for 12 hours
High Humidity Working: 80℃ for 20 hours with 85%


IR Touch Frame Technology

IR touch screen frame technology may not be new, but it remains a favorite. It tends to be employed in large-format displays and some kiosks and point-of-sale (POS) terminals. The custom touch screen display has a long life, furthering its popularity in the digital signage and interactive display markets.


Product  Installation

The infrared touch frame TB series is composed of four infrared touch frame strips. When you receive the product, you need to correctly connect the AA, BB, CC, DD corresponding side strips according to the instructions, and you need to ensure that the cable Fasten the safety buckle after fully contacting the connecting PIN socket, so that each contact point of the cable has good conductivity, the unique plug-in installation is simple and easy to operate

43" Multi IR Touch Screen Frame Overlay 20 Points 7ms 60000hours LED Lifetime 0

Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.

Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.

Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!

The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.



 Product Application


43" Multi IR Touch Screen Frame Overlay 20 Points 7ms 60000hours LED Lifetime 1

 Packing and Delivery

43" Multi IR Touch Screen Frame Overlay 20 Points 7ms 60000hours LED Lifetime 243" Multi IR Touch Screen Frame Overlay 20 Points 7ms 60000hours LED Lifetime 343" Multi IR Touch Screen Frame Overlay 20 Points 7ms 60000hours LED Lifetime 4
