96-inch infrared finger touch smart board interactive whiteboard multimedia teaching

Factory Direct Sales

Quality assurance

Support Custom Service

96"16:10 factory direct multi-point infrared touch electronic whiteboard for class and meeting

	Model	Z096-B

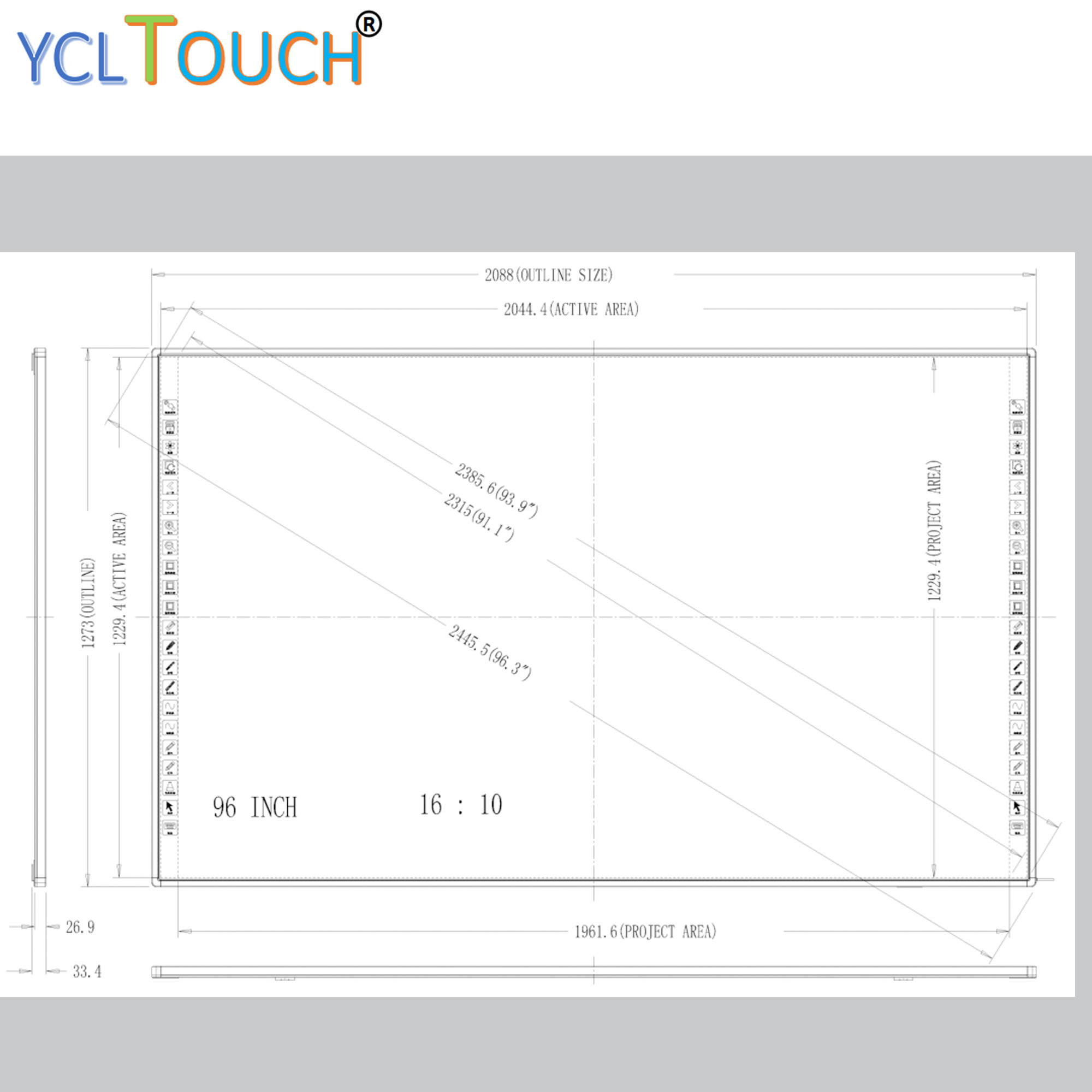

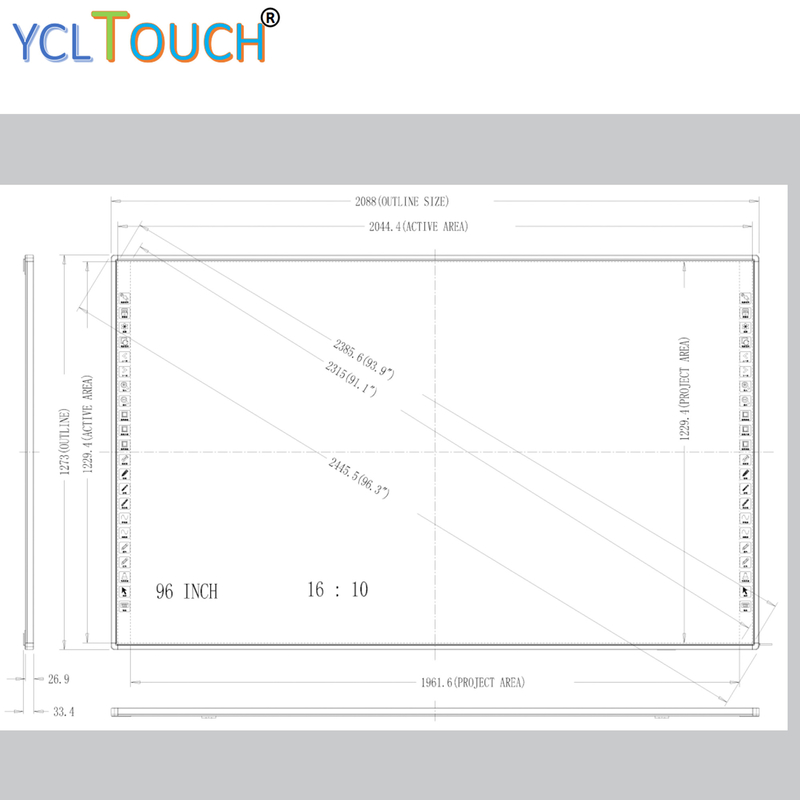

Appearance	Frame size	(2088±2.0)mm*(1273±2.0)mm
	Touch size	(2044.4±2.0)mm*(1229.4±2.0)mm
	Projection size	(1961.6±2.0)mm*(1229.4±2.0)mm
	Screen percentage	95%
	Proportion	16:10
	Shortcut keys	Double-sided 22 shortcut keys
	Overall material	Aluminum Alloy
	Color Craft	Silver, sandblast oxidation
	Panel	Extruded board
	Interface	Type A usb
Touch features	Support Points	Drive-free 20 points
	Touch Mode	Support any non-transparent object touch, including fingers, stylus, plate eraser, etc.
	Support resolution	Drive free mode: 32768x32768
	Response speed	≤10ms
	Minimum identification point	4mm*4mm
	Scan frame rate	≥100HZ
	Touch feature	Support touch object size recognition Sensor discontinuous damage can work normally within 10%
	Support System	Support Win7, Win 8, Win10, Windows XP, Mac OS
Machine	Net Weight	(18±2)kg
	Gross weight	(23±2)kg
	Package dimensions	(2150±4.0)mm(1335±4.0)mm (90±4.0)mm
	Humidity limit	Work Storage humidity: 90% RH at 40 ° C without condensation
	Temperature limit	Working temperature: -10 ° C ~ 50 ° C Storage temperature: -20 ° C ~ 60 ° C
	Light resistance	10000Lux
	Certification	C-Tick;CE;FCC;ROHS

YCL interactive whiteboard is a large-size touch screen used with projectors to connect an interactive whiteboard to a computer. As a monitor and input device, users can write on the interactive whiteboard with their fingers or pen. Interactive whiteboards are commonly used in classrooms, shopping malls, government agencies, and more. 96 Inch Infrared Interactive Whiteboard 10ms For Multimedia Teaching 0

YCL interactive Whiteboard Features:

1) Writing smoothly and fluently ,with high precision;
2) No light spots, to protect user's eyes;
3) The board could be used also as a traditional white board using water pen for writing.
4) All kinds of board material can satisfy different requirement of customers.
5) The reverse side use zinc coating plate, to avoid whiteboard working abnormally because of electromagnetic interference
6) The main PCB is separated from the board, be convenient for after-sale to repair quickly
7) Scratches on the board surface will not affect the use of interactive whiteboard
8) One key for positioning calibration 96 Inch Infrared Interactive Whiteboard 10ms For Multimedia Teaching 1

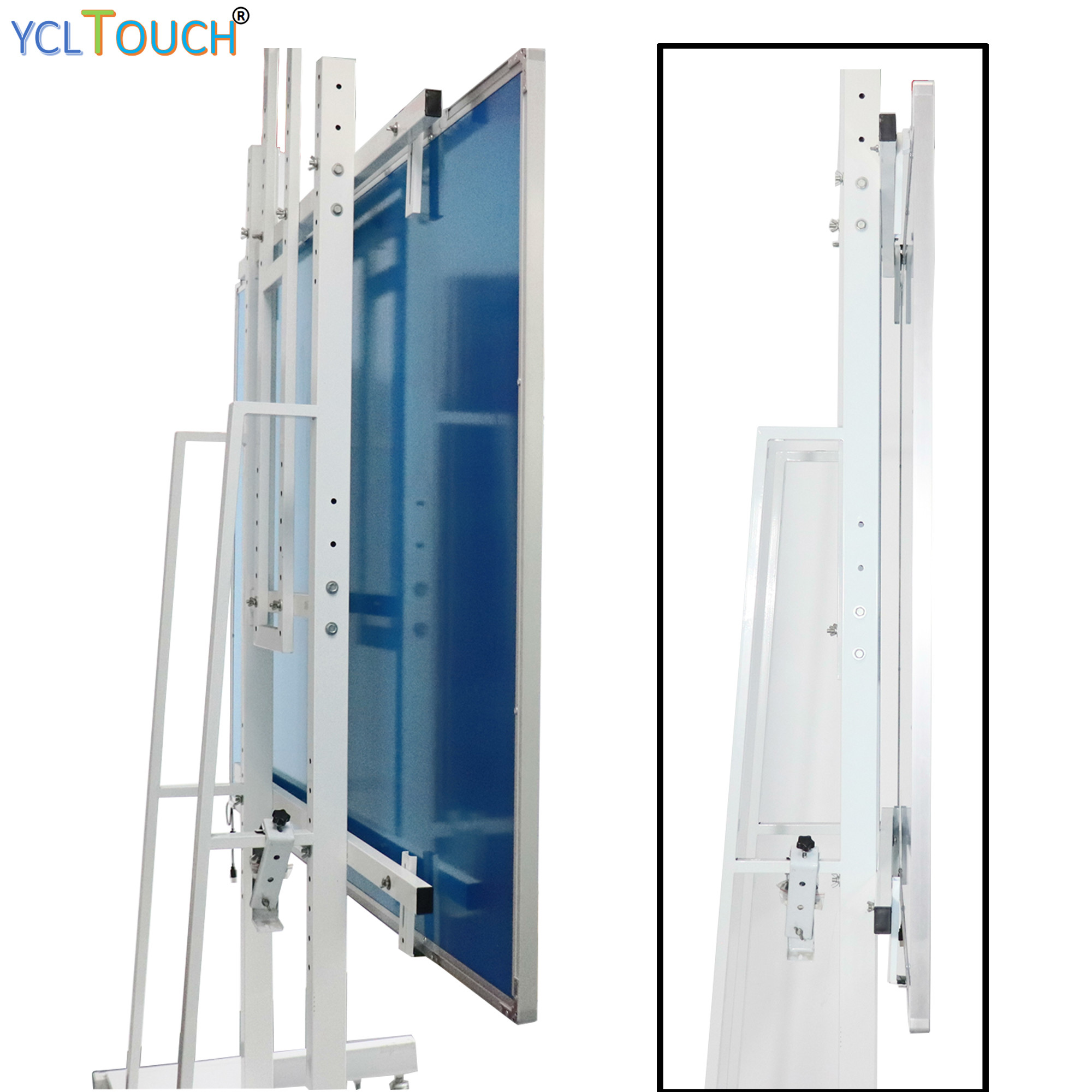

Accessories 96 Inch Infrared Interactive Whiteboard 10ms For Multimedia Teaching 3

FAQ

Q:Are you the factory or the trading company?

A:we are the factory in ShenZhen city,we can OEM/ODM for you.

Q: How long is the warranty time for your company?

A:We offer 1 year warranty after the delivery.

Q:What payment method your company accept?

A:We accept most of the payment methods,but mainly by TT,other payment term is negotiable.

Q:Can I customize product as my request?

A:Absolutely yes,we can customized as your requirement.

Q:What will you do if the products were being natural damaged within the warranty time and how about out that time?

A:Well,we will give some simple question to you or get the picture from your side to help us confirm the damaged parts,Once confirmed,the free replacement will be sent for you.If over the warranty time,we will ask for a very low factory price for the replacement part.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	YCLTOUCH
Certification:	CE/CCC/FCC/ROHS/ISO9001
Model Number:	Z096-B

Price:	$191.00/Pieces 1-19 Pieces
Packaging Details:	Standard packaging with foam and boxes
Supply Ability:	1000 Piece/Pieces per Day

Type:	Whiteboard	Whiteboard Type:	Interactive Whiteboard
Folded:	NO	Application:	Education.Training.Office
Size:	96 Inch	Color:	White
Surface:	Lacquered	Frame:	Alluminium Alloy
Function:	Writingboard	Operating System:	Android+win7/10 Optional
Touch Type:	Infrared 20 Points Touch Screen	Touch Points:	20 Points Touch
Port:	Shenhzen
High Light:	96 Inch Infrared Interactive Whiteboard , Infrared Interactive Whiteboard 10ms , IR Interactive Whiteboard
