Home ProductsInteractive Electronic Whiteboard96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch

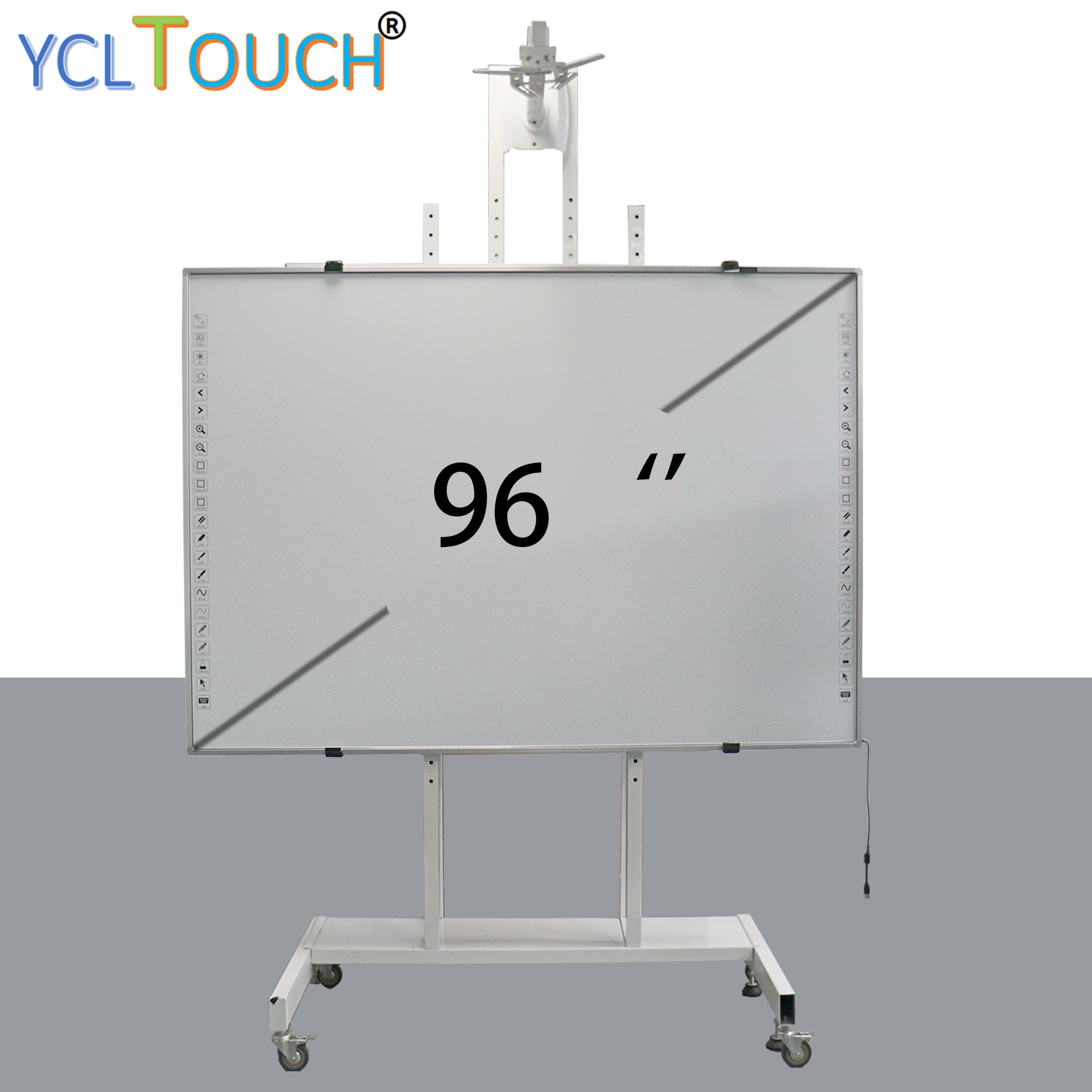

96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch

96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch
96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch
Basic Information
Place of Origin: Guangdong, China
Brand Name: YCLTOUCH
Certification: CE/CCC/FCC/ROHS/ISO9001
Model Number: Z096-B
Price: $191.00/Pieces 1-19 Pieces
Packaging Details: Standard packaging with foam and boxes
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Type: Whiteboard Whiteboard Type: Interactive Whiteboard
Folded: NO Size: 96 Inch
Application: Education.Training.Office Color: White
Surface: Lacquered Frame: Alluminium Alloy
Function: Multifunctional Operating System: Android+win7/10 Optional
Packing: Standard Packing Touch Type: Infrared 20 Points Touch Screen
High Light:

CCC Interactive Electronic Whiteboard

,

Interactive Electronic Whiteboard 10000Lux

,

96 Inch Large Electronic Whiteboard

96-inch infrared finger touch smart board interactive whiteboard multimedia teaching

Factory Direct Sales
Quality assurance
Support Custom Service
96"16:10 factory direct multi-point infrared touch electronic whiteboard for class and meeting

Model
Z096-B

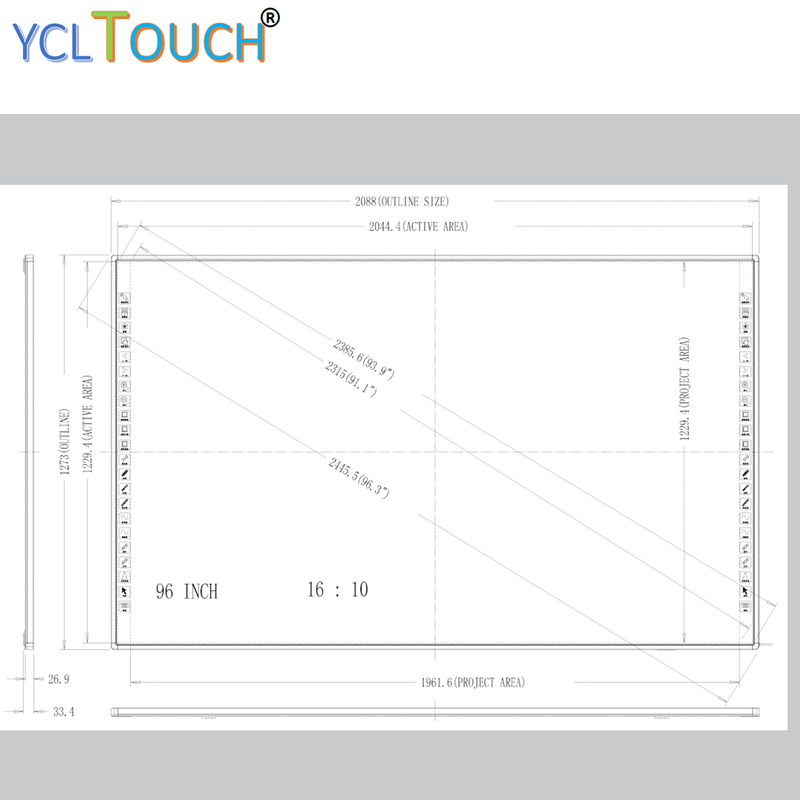

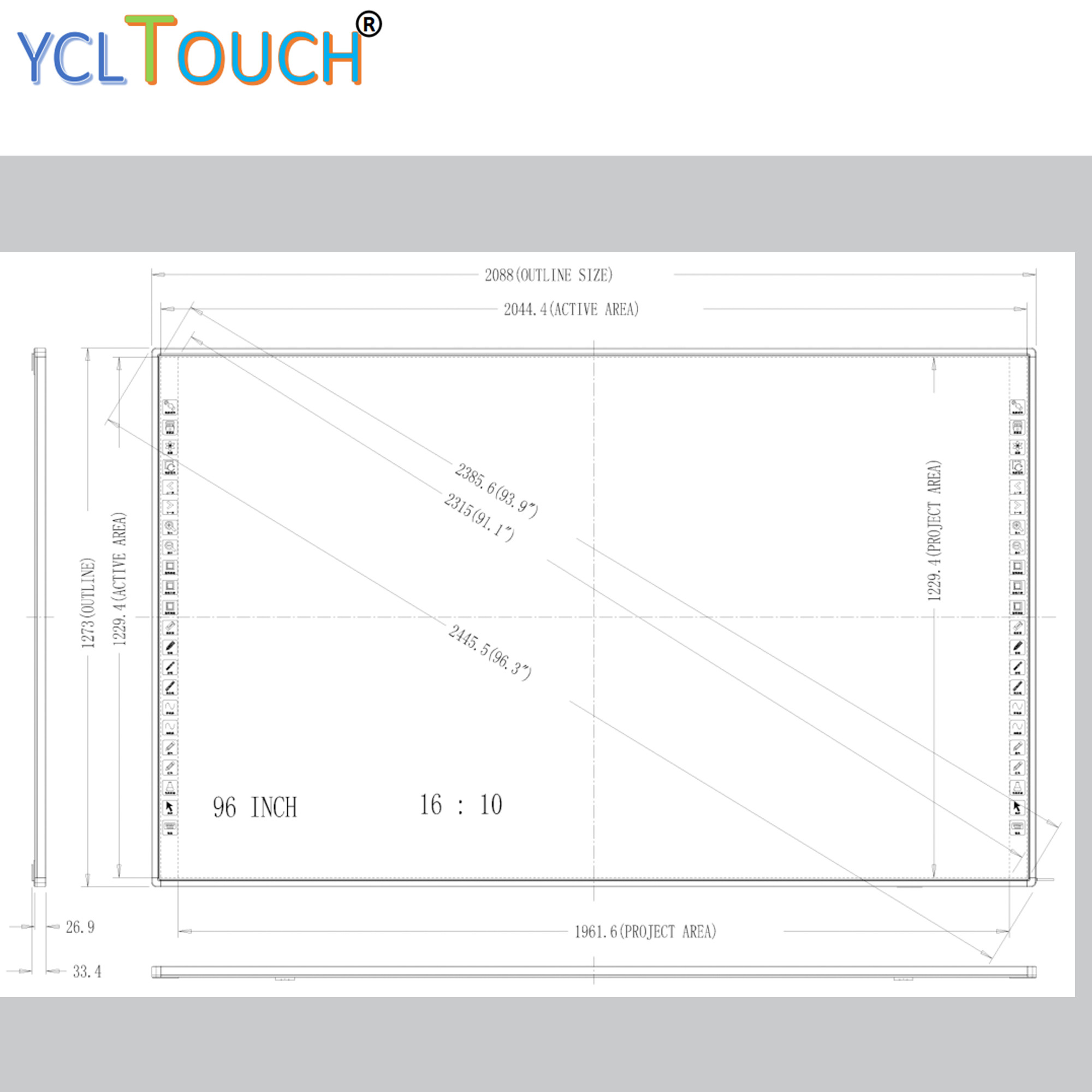

Appearance
Frame size
(2088±2.0)mm*(1273±2.0)mm
Touch size
(2044.4±2.0)mm*(1229.4±2.0)mm
Projection size
(1961.6±2.0)mm*(1229.4±2.0)mm
Screen percentage
95%
Proportion
16:10
Shortcut keys
Double-sided 22 shortcut keys
Overall material
Aluminum Alloy
Color Craft
Silver, sandblast oxidation
Panel
Extruded board
Interface
Type A usb
Touch features
Support Points
Drive - free 20 points
Touch Mode
Support any non-transparent object touch, including fingers, stylus, plate eraser, etc.
Support resolution
Drive free mode: 32768x32768
Response speed
≤10ms
Minimum identification point
4mm*4mm
Scan frame rate
≥100HZ
Touch feature
Support touch object size recognition
Sensor discontinuous damage can work normally within 10%
Support System
Support Win7, Win 8, Win10, Windows XP, Mac OS
Machine
Net Weight
(18±2)kg
Gross weight
(23±2)kg
Package dimensions
(2150±4.0)mm*(1335±4.0)mm *(90±4.0)mm
Humidity limit
Work Storage humidity: 90% RH at 40 ° C without condensation
Temperature limit
Working temperature: -10 ° C ~ 50 ° C Storage temperature: -20 ° C ~ 60 ° C
Light resistance
10000Lux
Certification
C-Tick;CE;FCC;ROHS


 YCL interactive whiteboard is a large-size touch screen used with projectors to connect an interactive whiteboard to a computer. As a monitor and input device, users can write on the interactive whiteboard with their fingers or pen. Interactive whiteboards are commonly used in classrooms, shopping malls, government agencies, and more.96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 0

YCL interactive Whiteboard Features:

1) Writing smoothly and fluently ,with high precision;
2) No light spots, to protect user's eyes;
3) The board could be used also as a traditional white board using water pen for writing.
4) All kinds of board material can satisfy different requirement of customers.
5) The reverse side use zinc coating plate, to avoid whiteboard working abnormally because of electromagnetic interference
6) The main PCB is separated from the board, be convenient for after-sale to repair quickly
7) Scratches on the board surface will not affect the use of interactive whiteboard
8) One key for positioning calibration96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 1

96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 2Accessories96 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 396 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 496 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 596 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 696 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 796 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 896 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 996 Inch Large Interactive Electronic Whiteboard 10000Lux finger touch 10

FAQ

Q:Are you the factory or the trading company?

A:we are the factory in ShenZhen city,we can OEM/ODM for you.

Q: How long is the warranty time for your company?

A:We offer 1 year warranty after the delivery.

Q:What payment method your company accept?

A:We accept most of the payment methods,but mainly by TT,other payment term is negotiable.

Q:Can I customize product as my request?

A:Absolutely yes,we can customized as your requirement.

Q:What will you do if the products were being natural damaged within the warranty time and how about out that time?

A:Well,we will give some simple question to you or get the picture from your side to help us confirm the damaged parts,Once confirmed,the free replacement will be sent for you.If over the warranty time,we will ask for a very low factory price for the replacement part.
