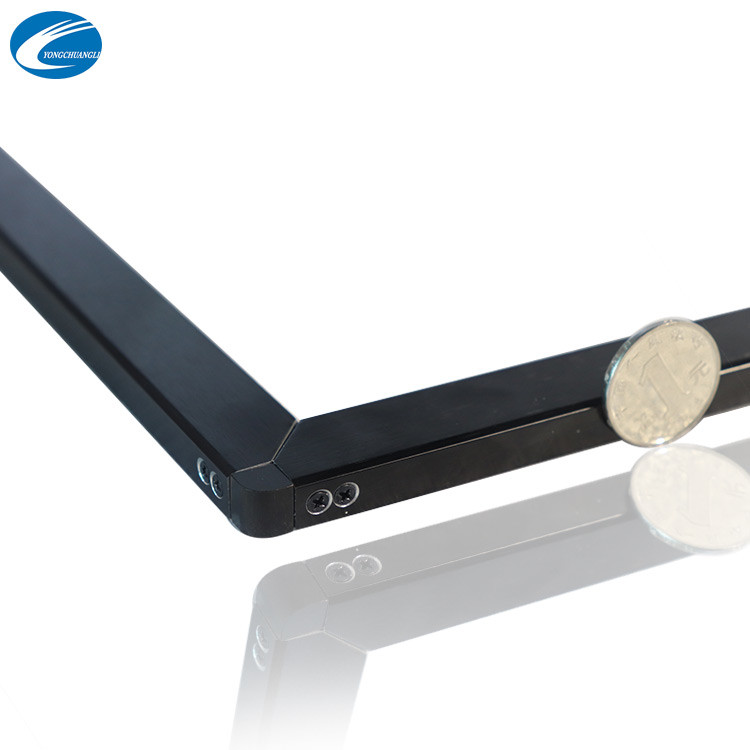

65 inch 20 points infrared multi touch frame ir touch screen overlay with USB
Product Details
| Product Name: | IR Touch Frame | Interface: | USB2.0 |
|---|---|---|---|
| Color: | Black | Touch Times: | Unlimited |
| Technology: | Ir Touch Screen Frame | Material: | Aluminum Alloy Frame |
Product Description
65 inch 20 points infrared multi touch frame ir touch screen overlay with USB
Infrared Touch Panel Working Principal
IR Touch Screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts from the operation
Super advantages for 65 inch IR multi touch screen :
- 20 points touch (Multi touch)
- Support zoom in/out, display rotation
- USB interface, Drive free, plug and play
- Supporting 20 points touch under windows7, windows8 ,windows10 and Android system
- Withstands severe environments
- Stable, no-drift calibration performance
- Vandaproof and abrasion-resistant screens, ideal for rugged applications
- Parallax-free performance for LCD displays
- Sealable against contaminants
- Operable in various light conditions, indoor and outdoor
| Product name |
interactive IR infrared touch screen frame overlay |
|---|---|
| Detection Method | Infrared rays |
| Touch Activation Force | Non Minimum activation force |
| Object Touch Size | min Ø4mm |
| Touch Durability | Over 60 millions for single touch |
| Touch Resolution | 32768*32768 |
| Position Accuracy | 1mm |
| Fault Tolerance | Workable even 75% sensors are damaged |
| Frames per Second | Up to 450 fps |
| Touch Response Time | 8ms |
| Draw Response Time | 8ms |
| Altitude | 3000m |
| Light Transmission | 100% without glass |
Packing
Transportation and Payment
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA
4. why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.
5. what services can we provide?
Accepted Delivery Terms: FOB,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
