70 Inch multi-touch infrared touch frame infrared touch screen overlay
Product Details
| Size: | 70 Inch | Products Status: | New |
|---|---|---|---|
| Application: | ATM.POS.Open Frame Machine ...etc | After-sales Service: | Call Center And On-line Technical Support, Onsite Training And Inspection, Free Spare Parts, Repair, Others |
| Warranty(Year): | 1-year | Certification: | RoHS, CCC, ISO9001, Ce, FCC, EMC, LVD |
Product Description
Infrared/ IR Touch Frame
A matrix of Infrared (IR) LEDs and photo diodes are used to create a two dimensional grid over the display to detect where infrared light is blocked and thus where touchpoints are. YCLTOUCH' s available in both standard and custom industrial infrared touch screen sizes, YCLTOUCH’s projected custom infrared touch screen forms, fit or function replacements for 3M™ and Elo™ touch sensors.
IR Touch Frame Technology
IR touch screen frame technology may not be new, but it remains a favorite. It tends to be employed in large-format displays and some kiosks and point-of-sale (POS) terminals. The custom touch screen display has a long life, furthering its popularity in the digital signage and interactive display markets.
How IR touch frame Red Works:

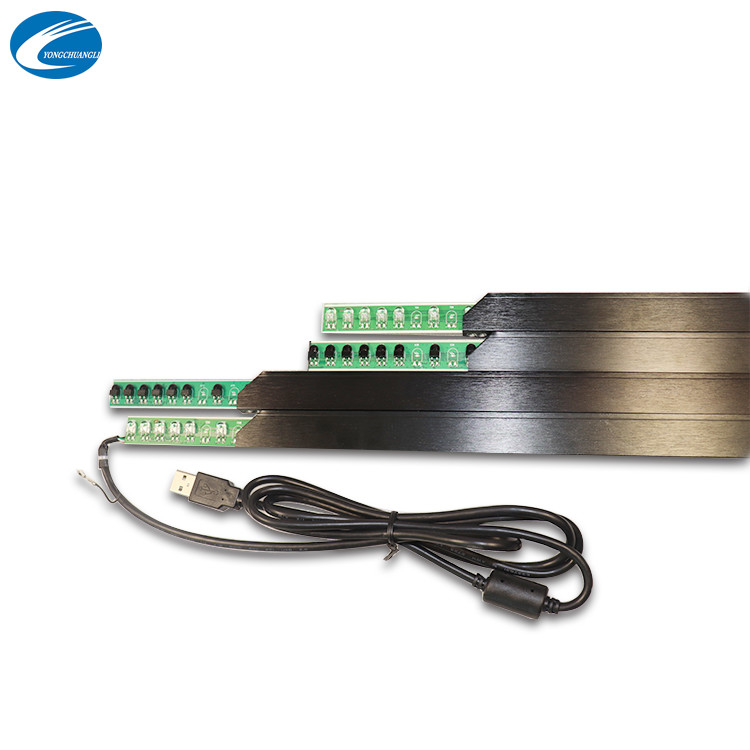

Infrared touch technology requires a perimeter to be placed around the infrared touch screen. The perimeter consists of infrared LEDs placed on two sides of the IR touch frame and phototransistors placed on the opposing two sides. The two sides then work in pairs; the signal from the LED transistor is read by its opposing phototransistor. When that signal is interrupted, it indicates a blocked infrared beam, which, in turn, indicates a touch point. While most infrared custom touch screen display doesn’t require a touchscreen, a glass overlay usually is recommended in order to protect the underlying display.
IR touch frame features
1 Better performance for big infrared touch screen. Have good support on equipments sizes from 32” to 84”.
2 No restriction of touch medium No touch pressure required. Except for transparent medium, PIT supports all other touch mediums. Custom touch screen display with no touch pressure required.
3 High image clarity. No transducers on the surface of the IR touch frame, keep the image details maximumly.
4 Excellent protection performance. Protection performance enhancements are optional: Waterproof, Anti-vandal.
SPECIFICATION
Ratio: 16:9

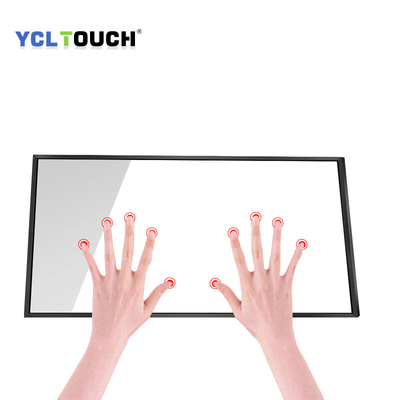

Number of Touch Points: 20
Minimum Touch Object: 4mm
Touch Activation Force: No minimum touch pressure required
Touch Durability: Unlimited
Driver Free: HID compatible, up to 20 touch points
Linearity Deviation: ±1mm
Fault Tolerance: Workable even 75% sensors are damaged
Frames per Second: Up to 50 fps
Typical Response Time: -10ms
Light Transmission: 100% without glass
Operating Systems: Windows7,Windows8,Windows10,MacOS,Linux,Android
Protocols: HID,TUIO,Flash
ElECTRICAL
Operating Temperature: -0°C to 70°C
Storage Temperature: -0°C to 85°C
Operating Humidity: 10% to 90%RH(Non-condensing)
Storage Humidity: 10% to 90%RH
Certification: FCC,CE,ROHS
Warranty: 1 year
Packing
Transportation and Payment
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA
4. why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.
5. what services can we provide?
Accepted Delivery Terms: FOB,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
