125Hz DIY IR Touch Frame 93 Inch Large Touch Screen Overlay For Video Wall LVD Approved
Product Details
| Interface Type: | USB | Screen Size: | 15"-500" |
|---|---|---|---|
| Touch Points: | 10 Points | Product Name: | IR Touch Frame |
| Interface: | USB 2.0(full-speed) | Material: | Aluminum Alloy Frame |
| Highlight |
125Hz DIY IR Touch Frame,DIY IR Touch Frame 93 Inch,Large Touch Screen Overlay LVD |
||
Product Description

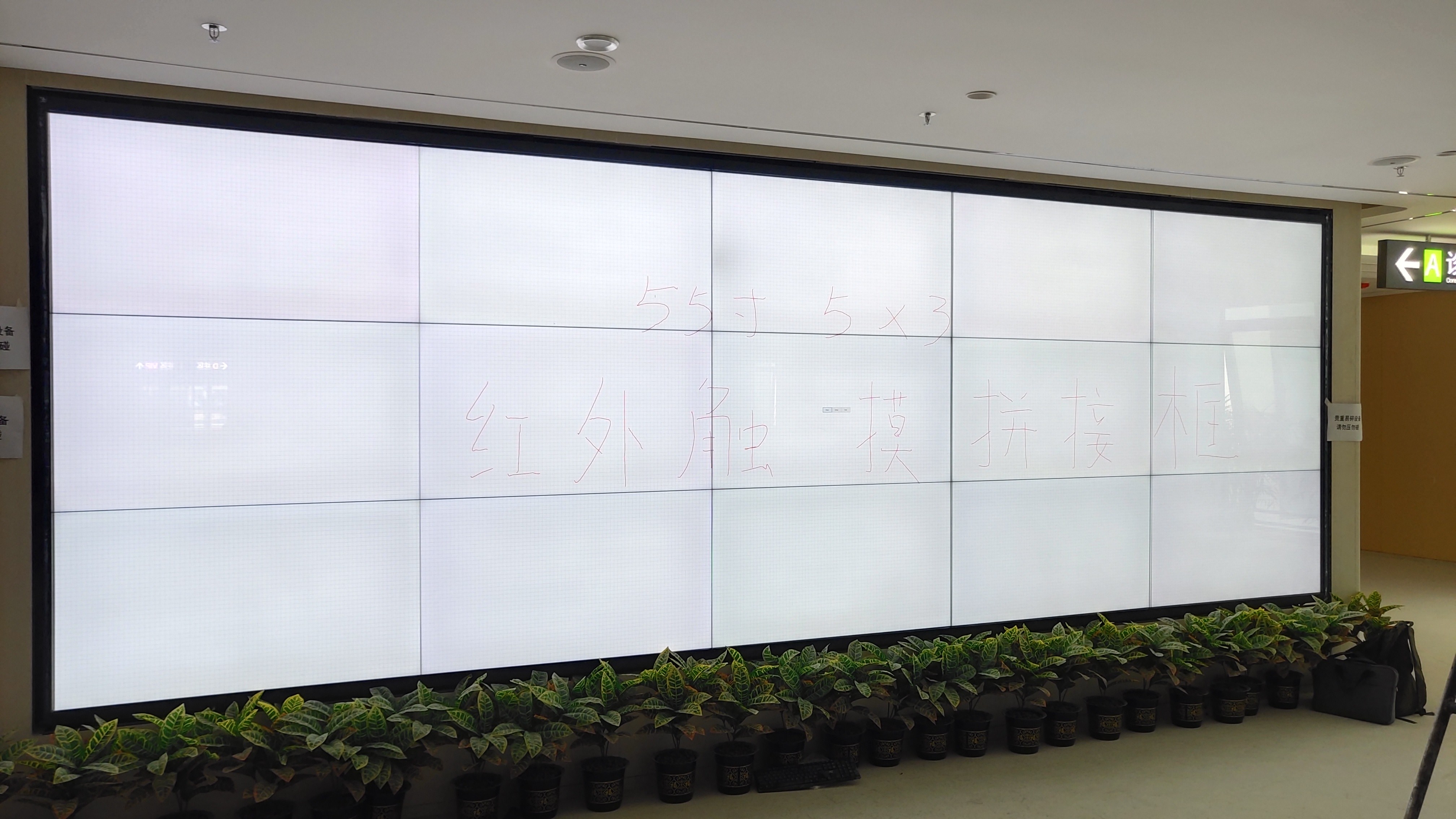

Infrared touch frame for video wall Large size IR touch frame overlay

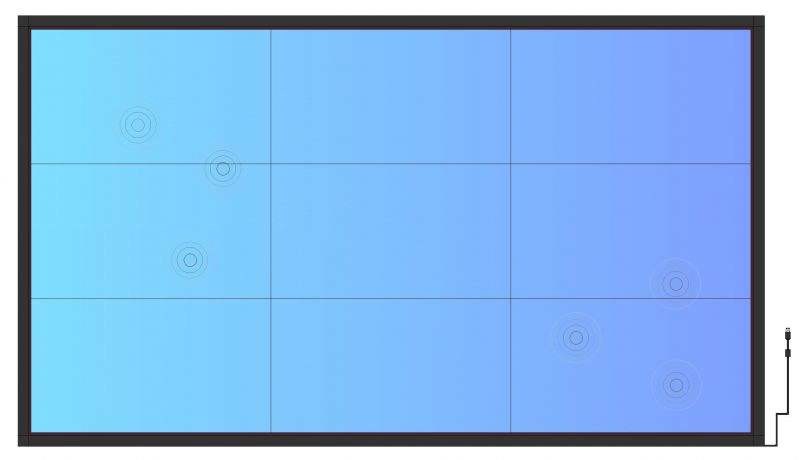

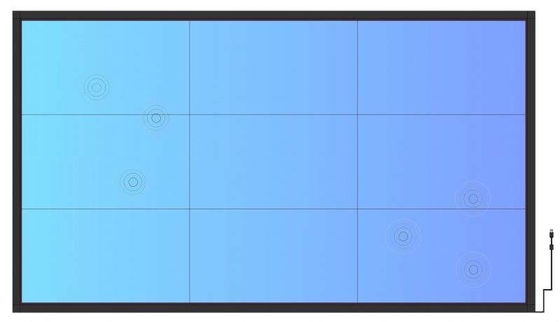

93 inch Video Wall Use Large Size Real Multi Point IR Touch Frame with USB Interface, Plug and Play
YCLTouch supply full rang of video wall use large size infrared touch frame, standard is 10-point, also can customize 16points. It has USB interface, once connect to your computer or media player box, it will work at once, no need any driver software, support plug and play.
Size can be customized as per request, and we can cut it into several pieces for a small packing, you can connect each piece one by one once received.
Aluminum alloy material ensure the IR touch frame is strong enough for installation and we provide 1- year warranty, any spare parts needed, will send for free during warranty period.
IR touch ten points touch (Up to 16 points). Response time is less than 10ms. It can operated by fingers, fingers cover by glove, or any opaque objects.
Most system support like Android, Mac, Windows, Ubuntu...
Touch Frame Details
Touch specifications
| Item | Specification | |
| Active Area(Display Device) | 15~500 inch | |
| Housing(Only limited profile shipments) | Aluminum Alloy | |
| Housing Color(Only limited profile shipments) | Black | |
| Response Time | <10ms | |
| Frame Rate | 125Hz | |
| Touch Accuracy | ±4mm(over 90% Area) | |
| Input Method | Finger,Finger cover by glove,Opaque objects | |
| Output Form | Coordinate Value | |
| Touch Durability | Unlimited | |
| Minimum Object Sizes For Touch | Single Touch | 6mm |
| Multi Touch | 8mm | |
| Interface | USB | |
| TTL Serial Port | ||
Reliability
| Item | Specification |
| Low temperature operation | Temperature:-20ºC, time:48H |
| Low temperature start | Temperature:-20ºC, time:4H |
| Low temperature storage | Temperature:-20ºC, time:48H |
| High temperature operation test | Temperature:60ºC, time:48H |
| High temperature, high humidity operation | Temperature:60ºC, humidity:95%RH, no condensation, time:48H |
| High temperature, high humidity storage | Temperature:60ºC, humidity:95%RH, no condensation, time:48H |
| Temperature change test | Temperature:-20ºC~60ºC, Loop number:10 times, Speed:1ºC/min |
| Thermal Shock Test | High temperature:85ºC, low temperature:-45ºC,50ºC cycles |
| Packing vibration Test | Frequency:5~200H, power spectral density: 0.015G2/Hz, total RMS acceleration:1.57G, vibration mode: random vibration |
| Package drop test | A corner three side six-faces |
| ESD level | According to IEC61000-4-2 level B. Contact discharge 4 KV, air discharge 8 KV |
Electrical Specifications
| Item | Specification |
| Communication Type | USB2.0 Full Speed |
| Transmission Rate | 12Mbps |
| Power Supply | USB |
| Working Voltage | DC 5V±5% |
| Average Current | <300mA |
Storage Conditions
| Item | Specification |
| Storage Temperature | -10ºC~40ºC |
| Storage Humidity | 30%~70%RH |
| Storage Time | 12 Months |
