Aluminum Alloy 10 Point Multi Touch Screen Frame With USB Interface
Product Details
| Interface Type: | USB | Screen Size: | 15"-500" |
|---|---|---|---|
| Touch Points: | 10 Points | Product Name: | IR Touch Frame |
| Interface: | USB 2.0(full-speed) | Material: | Aluminum Alloy Frame |
| Highlight |
10 Point Multi Touch Screen Frame,Multi Touch Screen Frame USB Interface |
||
Product Description
Size can be customized as per request, and we can cut it into several pieces for a small packing, you can connect each piece one by one once received.
Aluminum alloy material ensure the IR touch frame is strong enough for installation and we provide 1- year warranty, any spare parts needed, will send for free during warranty period.
IR touch ten points touch (Up to 16 points). Response time is less than 10ms. It can operated by fingers, fingers cover by glove, or any opaque objects.
Most system support like Android, Mac, Windows, Ubuntu...
| Item | Specification | |
| Active Area(Display Device) | 15~500 inch | |
| Housing(Only limited profile shipments) | Aluminum Alloy | |
| Housing Color(Only limited profile shipments) | Black | |
| Response Time | <15ms | |
| Frame Rate | 125Hz | |
| Touch Accuracy | ±1mm(over 90% Area) | |
| Input Method | Finger,Finger cover by glove,Opaque objects | |
| Output Form | Coordinate Value | |
| Touch Durability | Unlimited | |
| Minimum Object Sizes For Touch | Single Touch | 6mm |
| Multi Touch | 8mm | |
| Interface | USB | |
| TTL Serial Port | ||
| Item | Specification |
| Low temperature operation | Temperature:-20ºC, time:48H |
| Low temperature start | Temperature:-20ºC, time:4H |
| Low temperature storage | Temperature:-20ºC, time:48H |
| High temperature operation test | Temperature:60ºC, time:48H |
| High temperature, high humidity operation | Temperature:60ºC, humidity:95%RH, no condensation, time:48H |
| High temperature, high humidity storage | Temperature:60ºC, humidity:95%RH, no condensation, time:48H |
| Temperature change test | Temperature:-20ºC~60ºC, Loop number:10 times, Speed:1ºC/min |
| Thermal Shock Test | High temperature:85ºC, low temperature:-45ºC,50ºC cycles |
| Packing vibration Test | Frequency:5~200H, power spectral density: 0.015G2/Hz, total RMS acceleration:1.57G, vibration mode: random vibration |
| Package drop test | A corner three side six-faces |
| ESD level | According to IEC61000-4-2 level B. Contact discharge 4 KV, air discharge 8 KV |
Our large format touch frames are versatile products that do well in any environment. Turn any large display into a touch screen at a fraction of the cost of a built-in display.
Versatile for any Project
Our touch screens are perfect for product designers who need custom-sized or feature-added touch technology. We work with you to understand your project scope and find the right products to meet your unique needs.
Dependable for Commercial Purposes
When it comes to getting help with big projects, you want someone you can trust. We have been in the business since 2013, making YCLTouch touch products for customers all over the world. Our touch screens are fast, going up to 450 frames per second. Complete with a 1-2 year warranty, our technology is guaranteed to satisfy.
Scalable for Oversized Displays

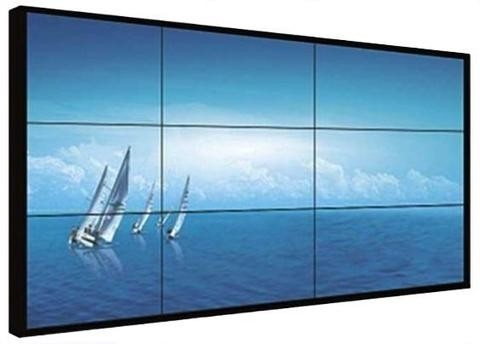

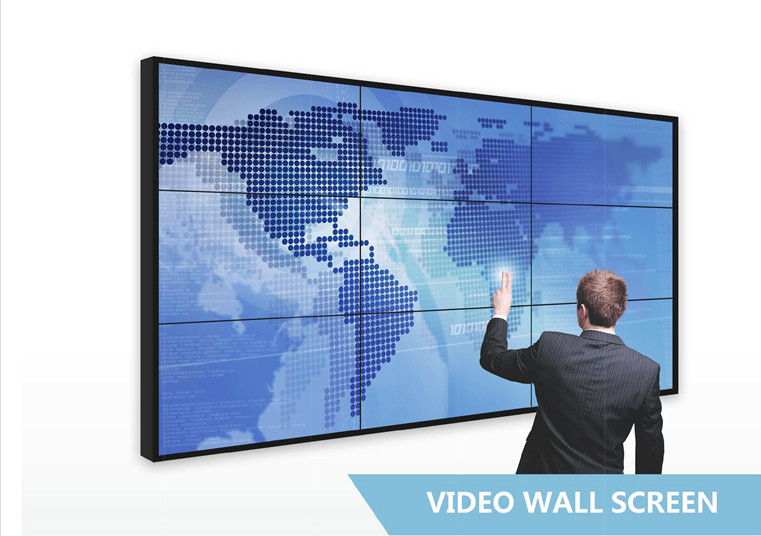

Touch screens can be used with a single display or connected to multiple displays to form an interactive video wall. We also offer standard sizes up to 80 inches.
Simple to Use
Plug it into your computer and you are ready to go. Uses a USB connection and, for displays over 90 inches, a power cord. Ships in framed segments. We can also install protective glass for up to 75 inch frames to protect the displays.
Why Infrared Touch?
Infrared touch screens are great for making large format touch displays because they are less expensive and more reliable than other types of touch screens. They are also simple to repair, easy to attach, and accurate with touch.
