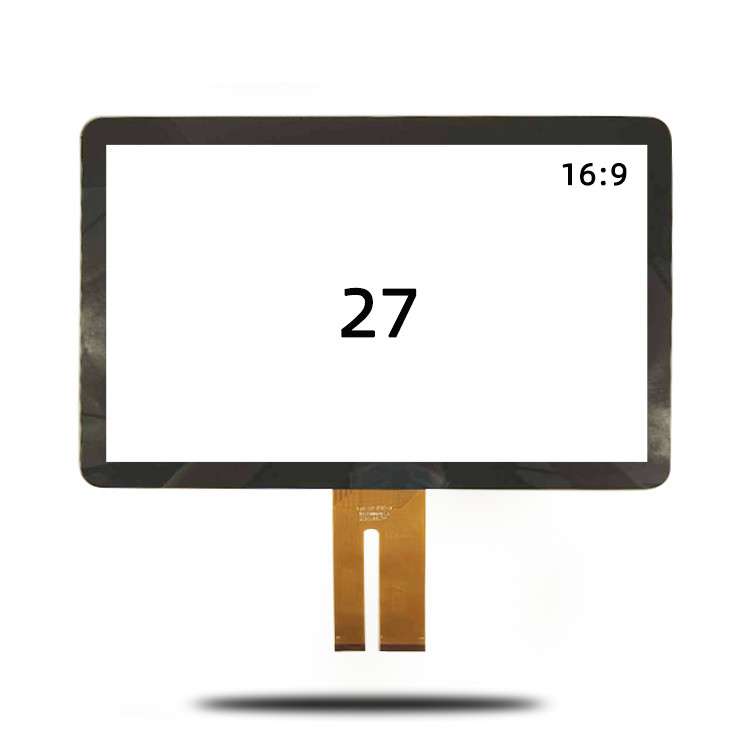

27 Inch Projected Capacitive Touch Screen 5V CTP Touch Panel USB Interface

Basic Information
Place of Origin: Guangdong, China
Brand Name: YCLTOUCH
Certification: RoHS, CCC, ISO9001, ce, FCC, LVD
Model Number: YCL-2700-485
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard packaging with foam and boxes
Delivery Time: 3-7 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000/ month
Size: 27 Inch Warranty(Year): 12 Months
Brand Name: YCL TOUCH Othere Name: YCL TOUCH
Series: For Business Material: Aluminum Alloy Frame
Interface: USB 2.0(full-speed) After-sales Service: Call Center And On-line Technical Support, Onsite Training And Inspection, Free Spare Parts, Repair, Others
High Light:

27 Inch Projected Capacitive Touch Screen

,

Projected Capacitive Touch Screen 5V

,

CTP Touch Panel USB Interface

27 inch capacitive touch screen CTP panel USB 5V power supply

Overview

YCL Touch Capacitive Touch screen is a high-end multi-point infrared touch screen technology with perfect combination of tradition and innovation. Our touch screen has the features of fast reaction speed, strong anti-environment light ability, good stability and easy integration; With the function of plug and play and without driver, any non-transparent object can change the infrared light and realize the touch operation which is convenient for people to operate and use the digital life and brings the greatest convenience and interactivity to life.





Capacitive Touch Panel Technology

Capacitive touch panel is a four-storey glass screen surface and laminated within the glass screen is coated with a layer of ITO, the outermost layer is a thin layer of silica glass, laminated ITO coating as a face, four electrode leads in the four corners, inner ITO good shielding to ensure a good working environment.
When finger touch the metal layer that is, because the body farm, users and touch-screen surface with a coupling capacitor, high frequency current, capacitance is a direct conductor, so fingers sucked away a very small amount of current from the contact point. The respectively current outflow from the touch electrode on the four corners of the screen, and flows through the four electrode current is proportional to the distance from the fingers to the four corners, controller through the accurate calculation of the four current percentage, came to the location of the touch point.





How does a Capacitive Touch screen Work?

Capacitive touch screens are built with a thin layer of conductive material, such as copper or Indium Tin Oxide (ITO), printed onto the underside of the display's insulating outer layer. When a finger touches the screen, a small electrical charge is drawn to the point of contact, which effectively becomes a functioning capacitor. The resulting change in the electrostatic field is then measured to pinpoint where the contact took place.

Factory Direct Supply 10 touch points screen touch China 24" Capacitive Touch Panel mirror customized

YCLtouch screen specification
Size  24 inch
Type Capacitive
Controller EETI / ILITEK
Touch points 10 points
Structure Cover glass + Senor glass
Touch solution Chip on board
Interafce USB / IIC / RS232
Operate system Win7,win8,win10,Android, Linux,MAC, etc.
Working voltage 5V
Surface hardness 6H
MOQ 1PCS
The terms of delivery EXW or FOB
Trade Terms Sample in stock,1-4 weeks for mass production
Payment 50% T/T in advance and 50% before delivery for mass production
Warranty 12 months



Benefits of Capacitive Touch screen Technology

At present, capacitive touch screen technology offers a number of key benefits:



Capacitance Touch screen Construction



Several techniques are available to construct a capacitance touchscreen. These include conductive wire construction or the application of transparent conductive materials, such as Indium Tin Oxide (ITO), to a polyester (PET) film layer "sandwich" or to a glass substrate.



27 Inch Projected Capacitive Touch Screen 5V CTP Touch Panel USB Interface 0

27 Inch Projected Capacitive Touch Screen 5V CTP Touch Panel USB Interface 1

27 Inch Projected Capacitive Touch Screen 5V CTP Touch Panel USB Interface 227 Inch Projected Capacitive Touch Screen 5V CTP Touch Panel USB Interface 327 Inch Projected Capacitive Touch Screen 5V CTP Touch Panel USB Interface 427 Inch Projected Capacitive Touch Screen 5V CTP Touch Panel USB Interface 527 Inch Projected Capacitive Touch Screen 5V CTP Touch Panel USB Interface 6
