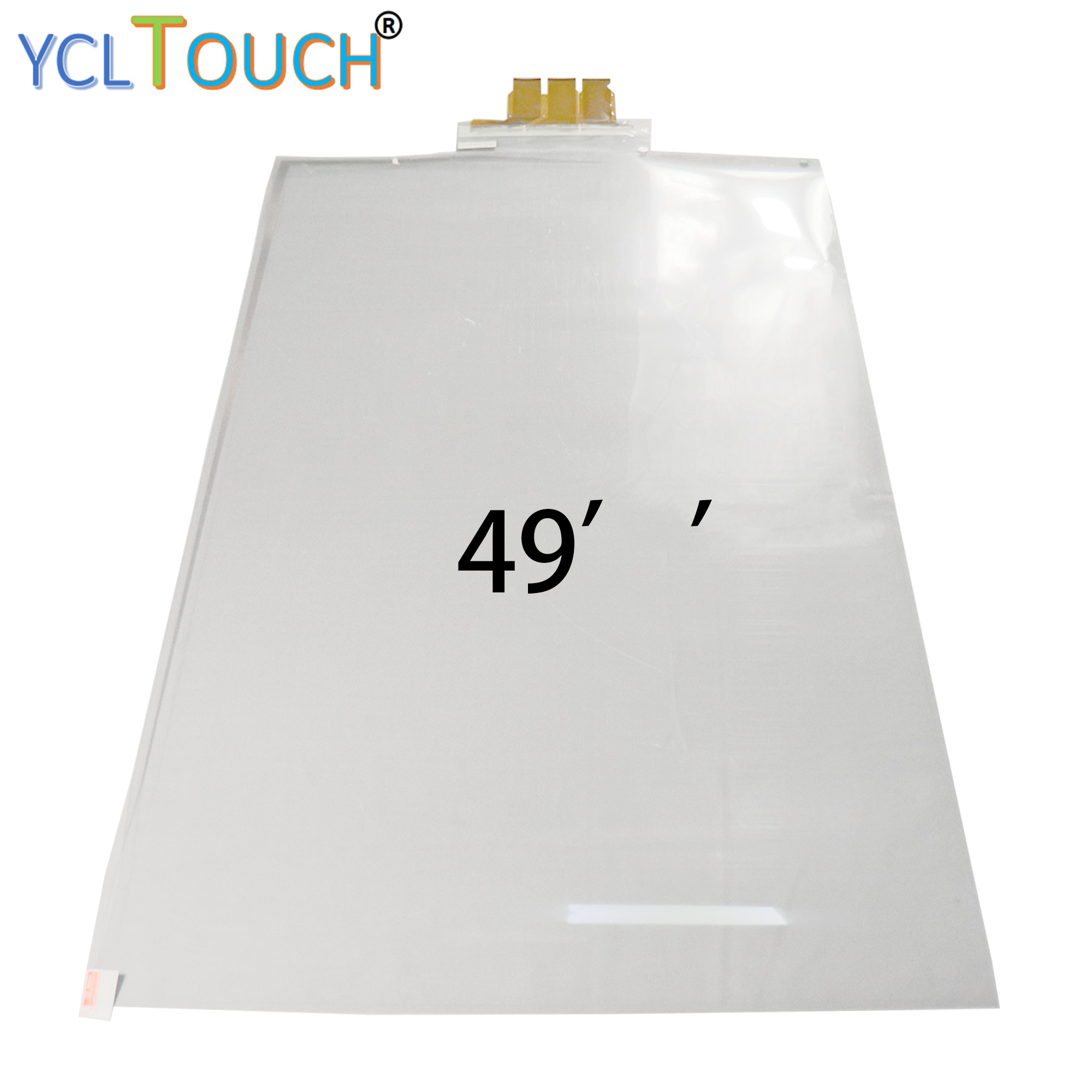

49 Inch Capacitive Touch Screen Film 10 Points Through Glass Window
Product Details
| Size: | 49 Inch | Resolution: | 3840*2160 |
|---|---|---|---|
| Interface: | USB 2.0(full-speed) | Color: | Clear |
| Place Of Origin: | Guangdong, China | Operating System: | XP Win7 8 Android Linux |
| Highlight |
49 Inch Capacitive Touch Screen Film,Capacitive Touch Screen Film 10 Points |
||
Product Description
49 Inch Capacitive Touch Film Interactive Multi Touch Foil Through Glass Window
Capacitive touch foil features:
The principle of the capacitive touch film technology belongs to the projective capacitive screen. It is composed of two transparent thin films, with a grid matrix layer consisting of a layer of metal wires crisscrossed by X and Y axes. Each matrix forms an induction unit that can sense the touch of human hands. The touch signal is transmitted to the circuit control board connected with the touch film. The control board transmits the signal to the computer. The computer automatically calculates the position of the touch to form an effective touch response, which can replace the mouse or even surpass the mouse (multi-point). In all touch modes, the projective capacitive touch film is the only new touch mode that can realize surface, transparency, waterproof, anti-fouling, anti-light interference, no border and touch through glass.
YCLTOUCH Multi-touch foil is an innovation core part of touch screen, support single-touch & multi-touch.
YCLTOUCH Multi-touch foil is an optically clear, large format projected capacitance film that can be applied to and works through glass and other non-metallic surfaces. This Multi-touch foil technology can transforms any glass or acrylic surface into a touch screen. It is an ideal choice for interactive window displays.
sizes, support customization
YCLTOUCH Capacitive Touch Film manufacturer
Customize Touch Film from 7-100 inch
- 1. 3500 m2 factory area
- 2. 2-3 weeks for mass production
- 3. Individual customization of size, style, logo print
