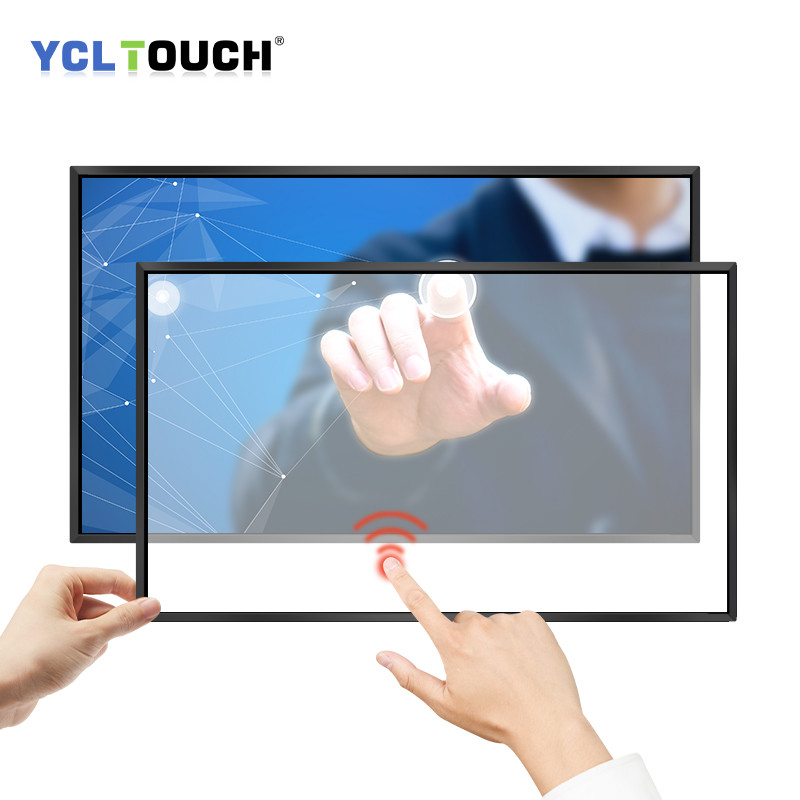

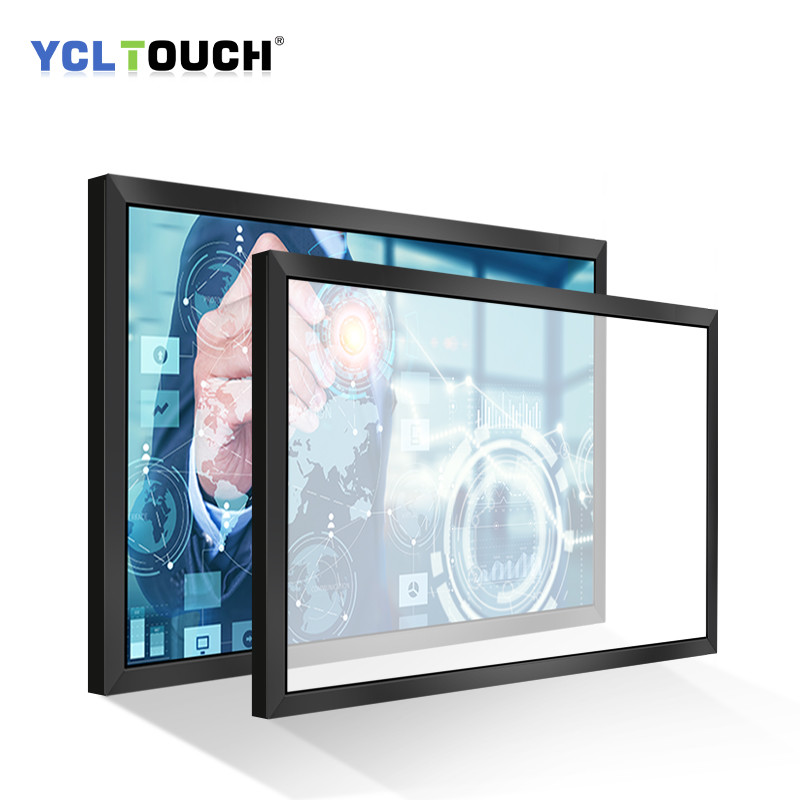

ODM OEM 55 Inch Touch Screen Overlay Aluminium alloy IR Touch Overlay Frame With USB

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO 9001:2000, ce, EMC, LVD
Model Number: LV-55
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000/month
Size: 55 Inch Place Of Origin: Guangdong, China
Resolution: 32767*32767 Aspect Ratio: 16:9
Frame Material: Aluminium Alloy Products Status: New
High Light:

ODM 55 Inch Touch Screen Overlay

,

OEM 55 Inch Touch Screen Overlay

,

Aluminium Alloy IR Touch Overlay Frame

Touch Screen 50 inch Infrared Touch Screen IR Touch Overlay with usb



What is a IR Touch Screen?

YCLTouch IR Touch Frame / Screen is a high-precision IR (Infrared) Multi-touch Screen. with interpolation resolution up to

32768*32768 and can be applied in 7''-500'' display.Any nontransparent substance can be detected and located in the screen. IR
Multi-touch Screen has many advantages such as high precision, fast response, excellent glare-resistive ability and faulty
tolerance, with one time factory calibration.





Specification

Product Name:
49 inch infrared touch frame
Bezel Material:
Aluminium alloy
Total Size:
1116.40x646.90mm
Display Size:
1075.00x605.5mm
Touch Resolution:
32768x32768
Glass:
Temper type with 2mm
Response Time:
Less than 10ms
Touch Accuracy:
+/-2mm(Over 95% area)
Touch Input Objects:
Fingers,opague objects
Touch Durability:
Unlimited
Size for touch input objects:
7mm
Interface:
USB2.0 full speed





Electrical Specification



Scan Rate:
More than 100Hz/s
Communication:
USB2.0
Transmission Rate:
480Mbps
Power Supply Mode:
USB 5V DC
Supply Voltage:
From 4.75 to 5.25V
Operating Voltage:
Equal to or less than 200MA





Environmental Specification

Working /StockTemperature:
-15℃~55℃ ,-40℃~75℃
Working Hudimity:
10%~90%RH,no condense
Stock Humidity:
10%~90%RH,no condense
Anti Light Ability:
<80000Lux
Static Electricity:
Equal to grade EN 6100-4-2 2008:3, touching type powerrelease 4KV,air type power release 8KV(Install to display to test)





Reliability And Durability Data Sheet

High Temperature Stock:
100℃ for 20 hours,normal temperature for 2 hours
Low Temperature Stock:
-40℃ for 20 hours,normal temperature for 2 hours
USB Plug In And Out Test:
More than 2000 times
High/Low Circle Working:
80℃ for 48 hours,-10℃ for 12 hours
High Humidity Working:
80℃ for 20 hours with 85%





Advantage:

1 Ultra-thin and ultra-narrow frame, aluminium alloy shell

2 High touch accuracy and smooth writing

3 Driver-free support for multiple operating systems.

4 Long service life, maintenance-free.

5 Toughened glass material, with high transmittance, strong stability.

6 Strong anti-jamming ability, anti-static performance of industrial ESD.

7 Response speed (less than 10 milliseconds), sensor discontinuous damage 10%, can still work.

8 No special touch tools are needed, just opaque objects





Product  Installation

The infrared touch frame TB series is composed of four infrared touch frame strips. When you receive the product, you need to correctly connect the AA, BB, CC, DD corresponding side strips according to the instructions, and you need to ensure that the cable Fasten the safety buckle after fully contacting the connecting PIN socket, so that each contact point of the cable has good conductivity, the unique plug-in installation is simple and easy to operate

ODM OEM 55 Inch Touch Screen Overlay Aluminium alloy IR Touch Overlay Frame With USB 0

Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.

Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.

Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!

The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.





 Product Application



ODM OEM 55 Inch Touch Screen Overlay Aluminium alloy IR Touch Overlay Frame With USB 1

 Packing and Delivery

ODM OEM 55 Inch Touch Screen Overlay Aluminium alloy IR Touch Overlay Frame With USB 2ODM OEM 55 Inch Touch Screen Overlay Aluminium alloy IR Touch Overlay Frame With USB 3ODM OEM 55 Inch Touch Screen Overlay Aluminium alloy IR Touch Overlay Frame With USB 4





FAQ



1 who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.

2 how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA

4 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.

5 what services can we provide?
Accepted Delivery Terms: FOB,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
