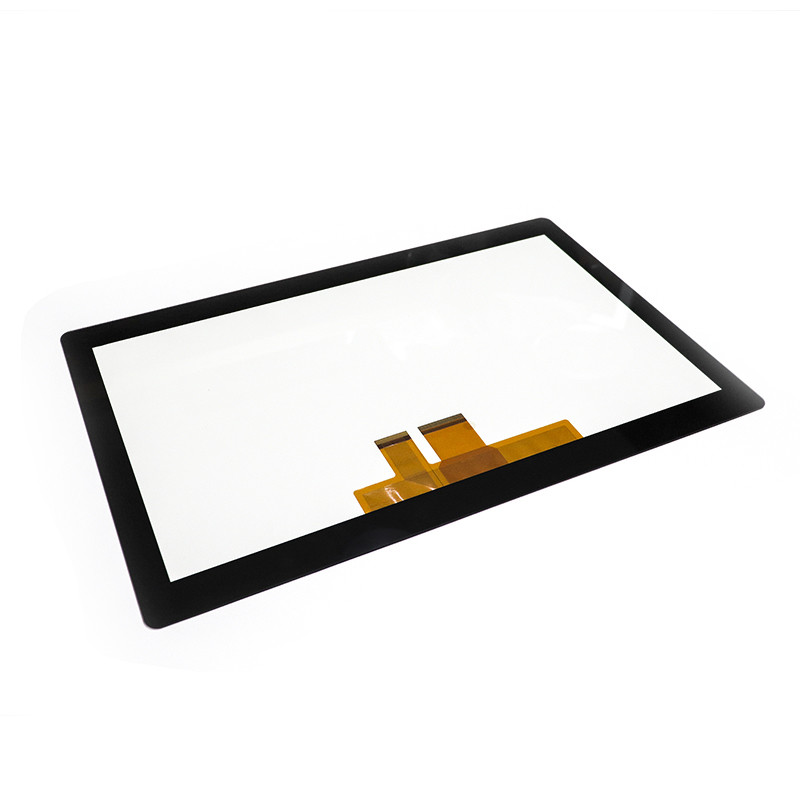

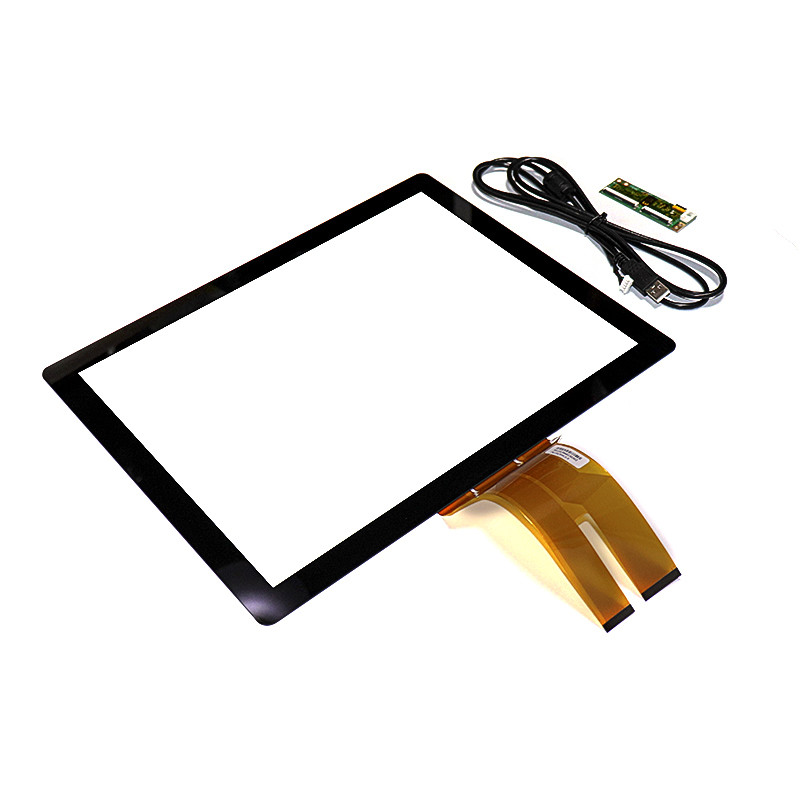

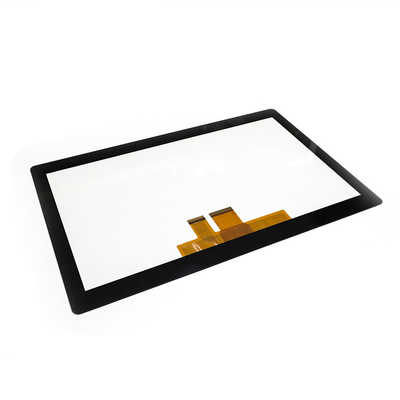

7 Inch 1024x600 Capacitive Touch Screen PCAP Touch Panel USB Interface
Product Details
| Product Size: | 7 Inch | Warranty(Year): | 1-Year |
|---|---|---|---|
| Interface: | USB | Type: | Capacitive |
| Series: | For Business | Products Status: | New, Stock |
| Highlight |
7 Inch 1024x600 Capacitive Touch Screen,7 Inch Capacitive Touch Screen PCAP,PCAP Touch Panel |
||
Product Description
10 touch points screen touch China 7" Capacitive Touch Panel
Why Capacitive Touchscreens?
What is Capacitive Touch?
In contrast to resistive touchscreens, capacitive touchscreens use the electrical properties of the human body as input. When touched with a finger, a small electrical charge is drawn to the point of contact, which allows the display to detect where it has received an input. The result is a display that can detect lighter touches and with greater accuracy than with a resistive touchscren.
Projected Capacitive Touchscreens
Projected Capacitive (PCap) touchscreens are used on the vast majority of smartphones and tablets. PCap screens consist of a layer of glass, a matrix of electrodes and a protective film. The matrix of electrodes creates a three dimensional electrostatic field that registers even the slightest change in electrical current. So, when a conductive object, such as your finger or a stylus, comes into contact with the matrix of electrodes, the electric field is changed slightly, and the screen registers your touch
Factory Direct Supply 10 touch points screen touch China 7" Capacitive Touch Panel mirror customized
| YCLtouch screen specification | |
| Size | 7 inch |
| Type | Capacitive |
| Controller | EETI / ILITEK |
| Touch points | 10 points |
| Structure | Cover glass + Senor glass |
| Touch solution | Chip on board |
| Interafce | USB / IIC / RS232 |
| Operate system | Win7,win8,win10,Android, Linux,MAC, etc. |
| Working voltage | 5V |
| MOQ | 1PCS |
| Surface hardness | 6H |
| The terms of delivery | EXW or FOB |
| Trade Terms | Sample in stock,1-4 weeks for mass production |
| Payment | 50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
Capacitance Touchscreen Construction
Several techniques are available to construct a capacitance touchscreen. These include conductive wire construction or the application of transparent conductive materials, such as Indium Tin Oxide (ITO), to a polyester (PET) film layer "sandwich" or to a glass substrate.
YCLTOUCH Capacitive touch screen panel manufacturer
Customize CTP from 7-100 inch
The YCLtouch projected capacitive touch technology offers a fast and sensitive response and professional-grade reliability combined with a stylish, sleek no-bezel design (bezel available). Wintouch's projected capacitive touchscreens are designed for the rigors of commercial applications.
- 1 3500 m2 factory area
- 2 2-3 weeks for mass production
- 3 Individual customization of size, style, logo print, AG, AR, AF
- 4 G+G/G+F/G+F+F
- 5 Touch with water/glove
YCLTOUCH Capacitive touch screen panel manufacturer
Customize CTP from 7-100 inch
- 1 3500 m2 factory area
- 2 2-3 weeks for mass production
- 3 Individual customization of size, style, logo print, AG, AR, AF
- 4 G+G/G+F/G+F+F
- 5 Touch with water/glove
