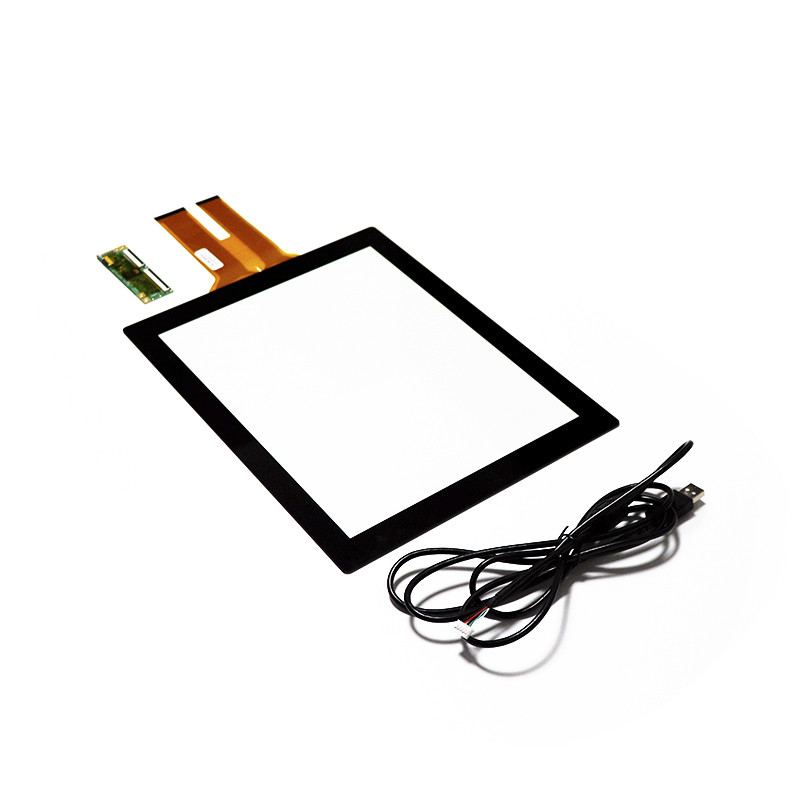

USB Custom Capacitive Touch Screen 8.4 Inch Industrial Black Silk Screen Printing
Product Details
| Product Size: | 8.4 Inch | Brand Name: | YCLTOUCH |
|---|---|---|---|
| Interface Type: | Usb | Keywords: | Capacitive Touch Screen Module |
| Interface: | USB 2.0(full-speed) | Operating System: | XP Win7 8 10 Android Linux |
| Highlight |
Custom Capacitive Touch Screen 8.4 Inch,USB Custom Capacitive Touch Screen,Usb Capacitive Touch Screen 8.4 Inch |
||
Product Description

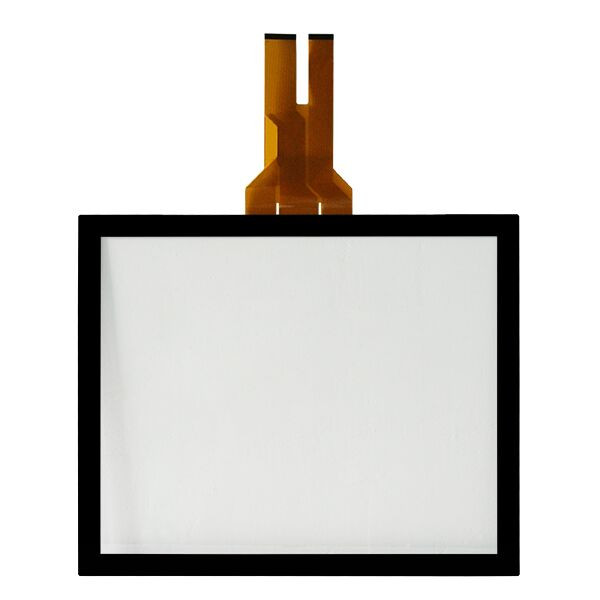

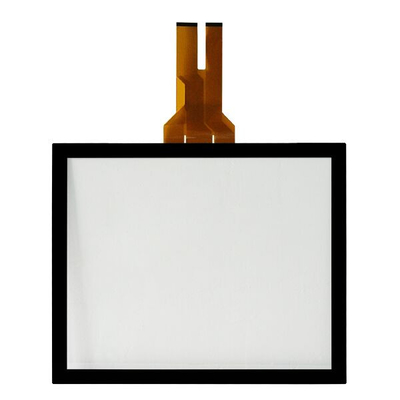

8.4 inch Industrial black silk screen printing flat customized screen capacitive touch screen
Capacitive or Resisitive Screens?
What is Resistive Touch?
Resistive touchscreens use pressure as input. Made up of several layers of flexible plastic and glass, the front layer is scratch resistant plastic and the second layer is (usually) glass. These are both coated with conductive material. When someone applies pressure to the panel, the resistance is measured between the two layers highlighting where the point of contact is on the screen.
Why Resistive Touchscreens?
Some of the benefits of resistive touch panels include the minimal production cost, flexibility when it comes to touch (gloves and styluses can be used) and its durability – strong resistance to water and dust.
Why Capacitive Touch screen?
What is Capacitive Touch?
In contrast to resistive touchscreens, capacitive touchscreens use the electrical properties of the human body as input. When touched with a finger, a small electrical charge is drawn to the point of contact, which allows the display to detect where it has received an input. The result is a display that can detect lighter touches and with greater accuracy than with a resistive touchscren.
Projected Capacitive (PCap) touchscreens are used on the vast majority of smartphones and tablets. PCap screens consist of a layer of glass, a matrix of electrodes and a protective film. The matrix of electrodes creates a three dimensional electrostatic field that registers even the slightest change in electrical current. So, when a conductive object, such as your finger or a stylus, comes into contact with the matrix of electrodes, the electric field is changed slightly, and the screen registers your touch
Factory Direct Supply 10 touch points screen touch China 8.4" Capacitive Touch Panel mirror customized
| YCLtouch screen specification | |
| Size | 8.4 inch |
| Type | Capacitive |
| Controller | EETI / ILITEK |
| Touch points | 10 points |
| Structure | Cover glass + Senor glass |
| Touch solution | Chip on board |
| Interafce | USB / IIC / RS232 |
| Operate system | Win7,win8,win10,Android, Linux,MAC, etc. |
| Working voltage | 5V |
| MOQ | 1PCS |
| Surface hardness | 6H |
| The terms of delivery | EXW or FOB |
| Trade Terms | Sample in stock,1-4 weeks for mass production |
| Payment | 50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
Capacitive Core Features
- Better screen quality
- More senstive input
- Support for multi-touch
Capacitance Touchscreen Construction
Several techniques are available to construct a capacitance touchscreen. These include conductive wire construction or the application of transparent conductive materials, such as Indium Tin Oxide (ITO), to a polyester (PET) film layer "sandwich" or to a glass substrate.
YCLTOUCH Capacitive touch screen panel manufacturer
Customize CTP from 7-100 inch
The YCLtouch projected capacitive touch technology offers a fast and sensitive response and professional-grade reliability combined with a stylish, sleek no-bezel design (bezel available). Wintouch's projected capacitive touchscreens are designed for the rigors of commercial applications.
- 1 3500 m2 factory area
- 2 2-3 weeks for mass production
- 3 Individual customization of size, style, logo print, AG, AR, AF
- 4 G+G/G+F/G+F+F
- 5 Touch with water/glove
YCLTOUCH Capacitive touch screen panel manufacturer
Customize CTP from 7-100 inch
- 1 3500 m2 factory area
- 2 2-3 weeks for mass production
- 3 Individual customization of size, style, logo print, AG, AR, AF
- 4 G+G/G+F/G+F+F
- 5 Touch with water/glove
