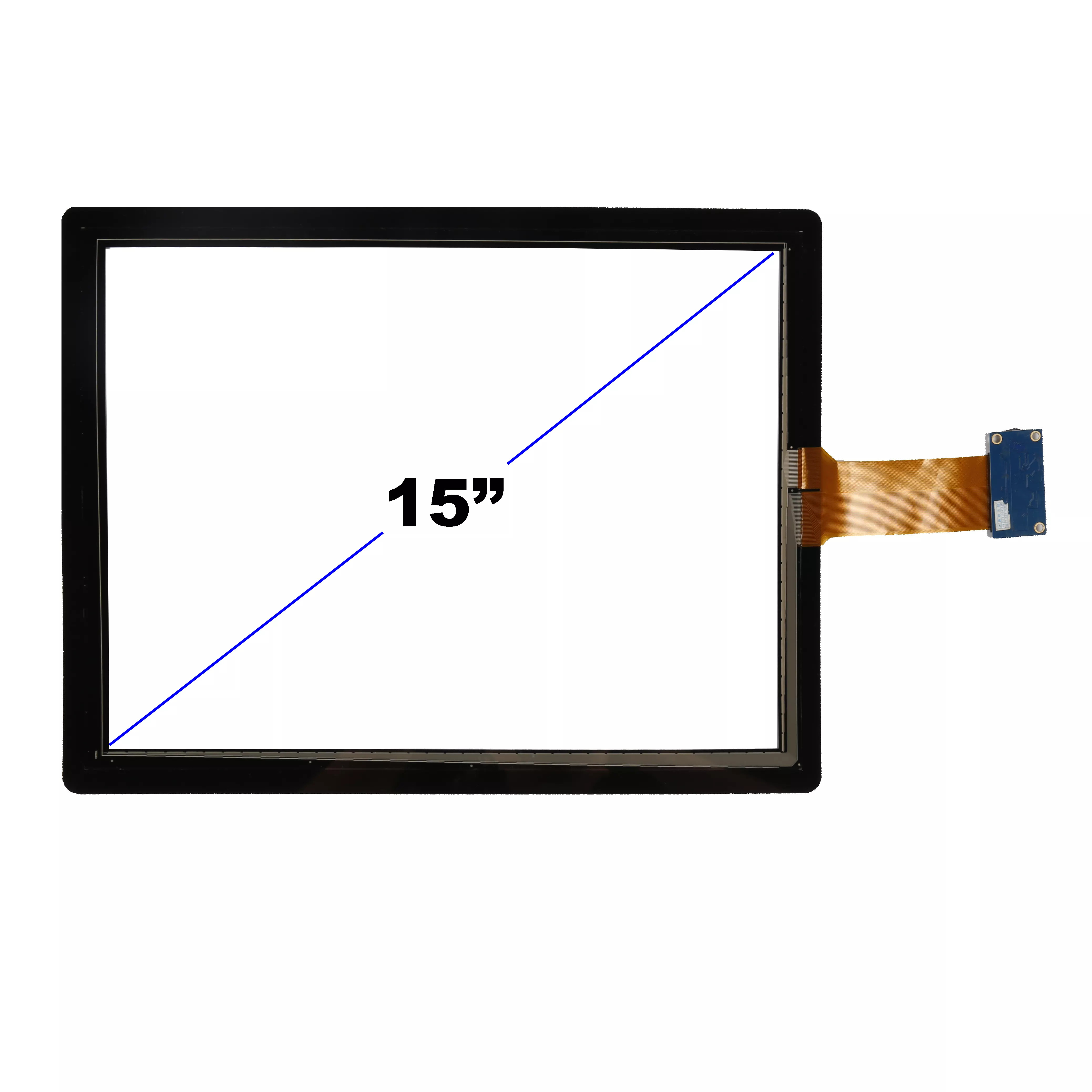

Customized Projected Capacitive Touch Screen 15 Inch Industrial Black Silk Screen Printing

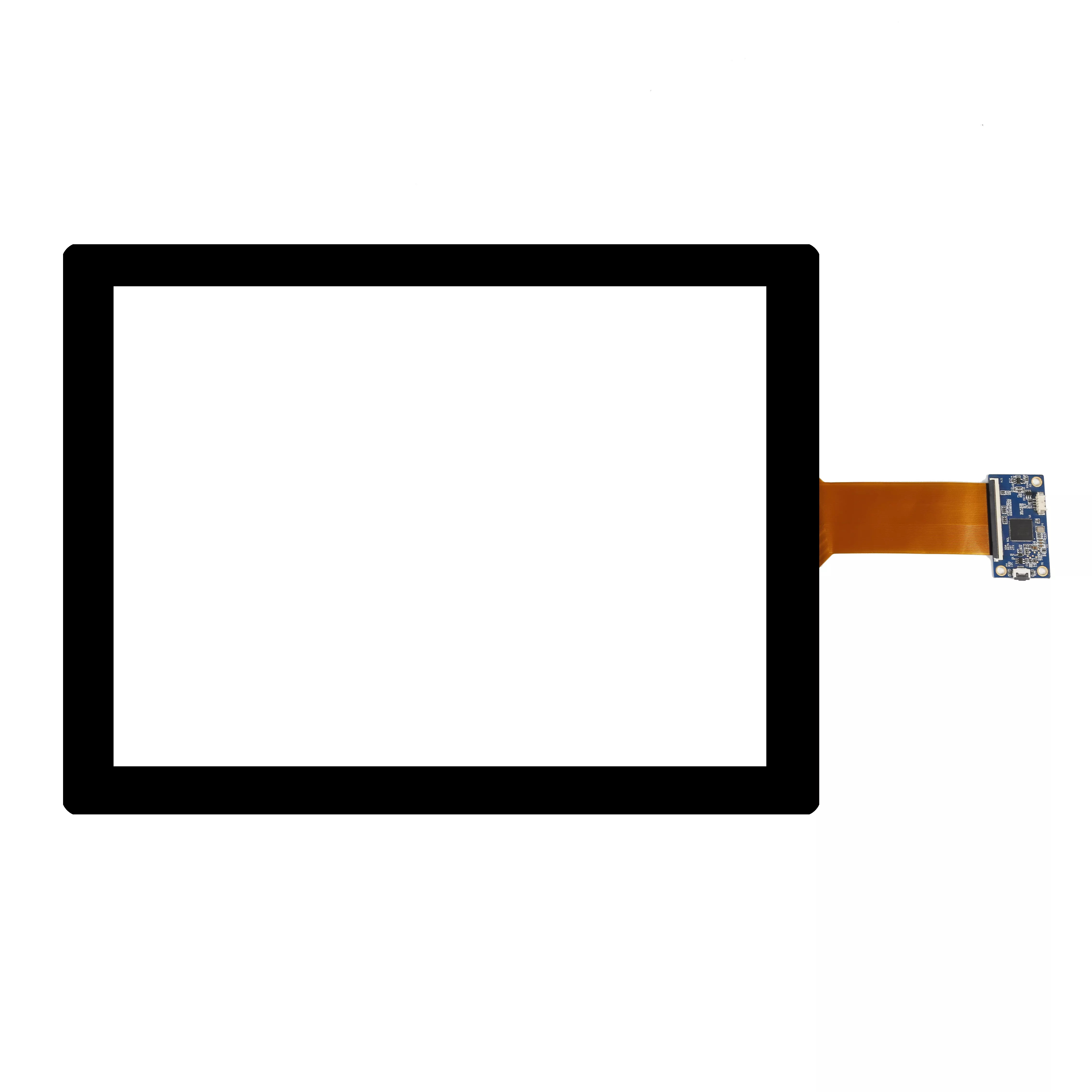

15 inch Industrial black silk screen printing flat customized screen capacitive touch screen

Capacitive or Resisitive Screens?

What is Resistive Touch?

Resistive touchscreens use pressure as input. Made up of several layers of flexible plastic and glass, the front layer is scratch resistant plastic and the second layer is (usually) glass. These are both coated with conductive material. When someone applies pressure to the panel, the resistance is measured between the two layers highlighting where the point of contact is on the screen.

Why Resistive Touch screen?

Some of the benefits of resistive touch panels include the minimal production cost, flexibility when it comes to touch (gloves and styluses can be used) and its durability – strong resistance to water and dust.

Why Capacitive Touchscreens?

What is Capacitive Touch?

In contrast to resistive touchscreens, capacitive touchscreens use the electrical properties of the human body as input. When touched with a finger, a small electrical charge is drawn to the point of contact, which allows the display to detect where it has received an input. The result is a display that can detect lighter touches and with greater accuracy than with a resistive touchscren.

Why Capacitive Touch Screens?

If you want increased screen contrast and clarity, capacitive touch screens are the preferred option over resistive screens, which have more reflections due to their number of layers. Capacitive screens are also far more sensitive and can work with multi-point inputs, known as ‘multi-touch’. However, because of these advantages, they are sometimes less cost-effective than resistive touch panels.

So, which is better?

Although capacitive touchscreen technology was invented long before resistive touchscreens, capacitive technology has seen more rapid evolution in recent years. Thanks to consumer electronics, particularly mobile technology, capacitive touchscreens are swiftly improving in both performance and cost.

we find ourselves recommending capacitive touchscreens more regularly than resitive ones. Our customers almost always find capacitive touchscreens more pleasant to work with and appreciate the vibrancy of image that cap touch TFTs can produce. With constant advancements in capacitive sensors, including new fine tuned sensors that work with heavy duty gloves, if we had to pick just one, it would be the capacitive touchscreen.

Projected Capacitive (PCap) touchscreens are used on the vast majority of smartphones and tablets. PCap screens consist of a layer of glass, a matrix of electrodes and a protective film. The matrix of electrodes creates a three dimensional electrostatic field that registers even the slightest change in electrical current. So, when a conductive object, such as your finger or a stylus, comes into contact with the matrix of electrodes, the electric field is changed slightly, and the screen registers your touch

Factory Direct Supply 10 touch points screen touch China 15" Capacitive Touch Panel mirror customized

Capacitive Core Features

• Better screen quality
• More senstive input
• Support for multi-touch

Capacitance Touchscreen Construction

Several techniques are available to construct a capacitance touchscreen. These include conductive wire construction or the application of transparent conductive materials, such as Indium Tin Oxide (ITO), to a polyester (PET) film layer "sandwich" or to a glass substrate.

YCLTOUCH Capacitive touch screen panel manufacturer
Customize CTP from 7-100 inch

The YCLtouch projected capacitive touch technology offers a fast and sensitive response and professional-grade reliability combined with a stylish, sleek no-bezel design (bezel available). Wintouch's projected capacitive touchscreens are designed for the rigors of commercial applications.

- 1 3500 m2 factory area

- 2 2-3 weeks for mass production
- 3 Individual customization of size, style, logo print, AG, AR, AF
- 4 G+G/G+F/G+F+F
- 5 Touch with water/glove

YCLTOUCH Capacitive touch screen panel manufacturer
Customize CTP from 7-100 inch

- 1 3500 m2 factory area

- 2 2-3 weeks for mass production
- 3 Individual customization of size, style, logo print, AG, AR, AF
- 4 G+G/G+F/G+F+F
- 5 Touch with water/glove
