Curved Flexible Capacitive Touch Foil 65 Inch 1222mm×689mm OEM ODM
Product Details
| Size: | Customizing | Products Status: | New |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Application: | ATM.POS.Open Frame Machine ...etc |
| Visual Area: | 1222MM×689MM | Working Voltage: | 5V USB |
| Highlight |
Flexible Capacitive Touch Foil,Capacitive Touch Foil 65 Inch,Multi Touch foil OEM |
||
Product Description

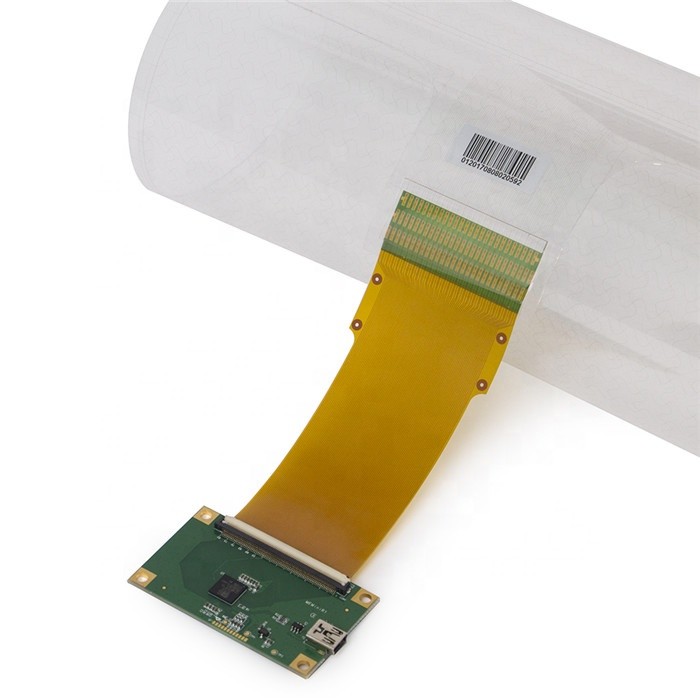

OEM ODM 65 inch curved touch screen flexible capacitive film foil
How does it work?
ChariotTech Multi-touch foil is made of two sheets of film, the mid of two sheets film is a layer of X, Y axis grid matrix layer consisting of crossing nano wires. The touch signal transfer to the drive controller, the drive controller transfer the signals to the computer through interface, then the computer could identify the location of a touch on the screen.
YCLTOUCH Multi-touch foil is an innovation core part of touch screen, support single-touch & multi-touch.
YCLTOUCH Multi-touch foil is an optically clear, large format projected capacitance film that can be applied to and works through glass and other non-metallic surfaces. This Multi-touch foil technology can transforms any glass or acrylic surface into a touch screen. It is an ideal choice for interactive window displays.
sizes, support customization
Features of interactive touch foil:
- Safety and robust Antiscratch,
- laminate on the back of Waterproof, dustproof, bulletproof,
- No expose components, safety.
- No mechanical components with long life Industrial
- temperature range: -20 °C to +80°C
Use for:
1 Shop/Store window displays
2 Indoor&outdoor kiosk
3 Offices
4 Training&meeting rooms
5 Exhibitions&conferences
6 Museums&visitor attractions
7 Interactive white board
8 Medical Instrument
9 Touch table
Features:
pressure touch, even with glove.
Mouse function with Zoom in/out and rotation.
10-20 points Multi¬touch
Precise touch & real¬time response
High transparency ≥93%, glass ¬level transparency.
Thin&light, the sensor thickness only 0.17mm
Throu¬gh glass touch, the maximum thickness of glass can reach 12mm.
20mm distance between two fingers, finger center to finger center, glass thickness 4-5mm
System:
①For Android, Open HID-USB, switch off Report Rate Description, input value of Android’s VID(Vendor ID) and PID( Product ID) into IC advanced settings;
②Linux support, pls confirm the Linux version first.
③Win XP7/8/8.1/10 Home Edition of Windows only supports single touch.Multi touch works on Windows Professional/Enterprise/Ultimate Edition
YCLTOUCH Capacitive Touch Film manufacturer
Customize Touch Film from 7-100 inch
- 1. 3500 m2 factory area
- 2. 2-3 weeks for mass production
- 3. Individual customization of size, style, logo print
