| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | YCLTOUCH |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Model Number: | YCL-Z086-B |
| Price: | $160.00/Pieces >=1 Pieces |
| Packaging Details: | Standard packaging with foam and boxes |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Type: | Whiteboard | Whiteboard Type: | Interactive Whiteboard |
|---|---|---|---|
| Folded: | NO | Application: | School Teaching&meeting |
| Product Name: | Smart Board Interactive Whiteboard | Size: | 86 Inch |
| Color: | White | Material: | Aluminum Alloy Frame |
| Usage: | Office Board | Accessory: | Eraser+pen+magnets |
| Packing: | Standard Packing | MOQ: | 1 Set |
| Port: | Shenhzen | ||
| High Light: | 86 Inch Interactive Whiteboard,Interactive Whiteboard Video Conferencing,Infrared Finger Touch Smart Board |
||

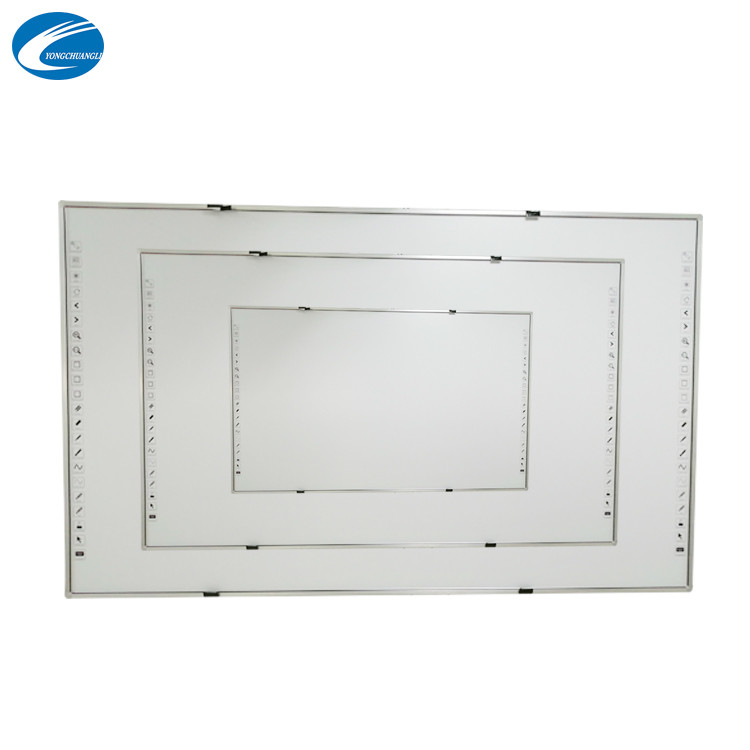

86 Inch Interactive Whiteboard Video Conferencing
YCL interactive whiteboard is a large-size touch screen used with projectors to connect an interactive whiteboard to a computer. As a monitor and input device, users can write on the interactive whiteboard with their fingers or pen. Interactive whiteboards are commonly used in classrooms, shopping malls, government agencies, and more.
82-inch infrared finger touch smart board interactive whiteboard multimedia teaching
| Model | Z086-B | |
| Appearance | Frame size |
(1783±2.0)mm*(1273±2.0)mm
|
| Touch size |
(1739.4±2.0)mm*(1229.4±2.0)mm
|
|
| Projection size |
(1656.6±2.0)mm*(1229.4±2.0)mm
|
|
| Screen percentage | 95% | |
| Proportion | 16:10 | |
| Shortcut keys | Double-sided 22 shortcut keys | |
| Overall material | Aluminum Alloy | |
| Color Craft | Silver, sandblast oxidation | |
| Panel | Extruded board | |
| Interface | Type A usb | |
| Touch features | Support Points | Drive-free 20 points |
| Touch Mode | Support any non-transparent object touch, including fingers, stylus, plate eraser, etc. | |
| Support resolution | Drive free mode: 32768x32768 | |
| Response speed | ≤10ms | |
| Minimum identification point | 4mm*4mm | |
| Scan frame rate | ≥100HZ | |
| Touch feature | Support touch object size recognitionSensor discontinuous damage can work normally within 10% | |
| Support System | Support Win7, Win 8, Win10, Windows XP, Mac OS | |
| Machine | Net Weight |
14±2)kg |
| Gross weight |
19±2)kg |
|
| Package dimensions | (1760±4.0)mm*(1285±4.0)mm *(90±4.0)mm | |
| Humidity limit | Work Storage humidity: 90% RH at 40 ° C without condensation | |
| Temperature limit | Working temperature: -10 ° C ~ 50 ° C Storage temperature: -20 ° C ~ 60 ° C | |
| Light resistance | 10000Lux | |
| Certification | C-Tick;CE;FCC;ROHS |
YCL interactive Whiteboard Features:
8) One key for positioning calibration
Accessories
How to connect and use?Application scenarioOverall dimensoin drawing of products
Q:Are you the factory or the trading company?
A:we are the factory in Hangzhou city,Zhejiang province,we can OEM/ODM for you.
Q: How long is the warranty time for your company?
A:We offer 2 year warranty after the delivery.
Q:What payment method your company accept?
A:We accept most of the payment methods,but mainly by TT,other payment term is negotiable.
Q:Can I customize product as my request?
A:Absolutely yes,we can customized as your requirement.
Q:What will you do if the products were being natural damaged within the warranty time and how about out that time?
A:Well,we will give some simple question to you or get the picture from your side to help us confirm the damaged parts,Once
confirmed,the free replacement will be sent for you.If over the warranty time,we will ask for a very low factory price for the
replacement part.
